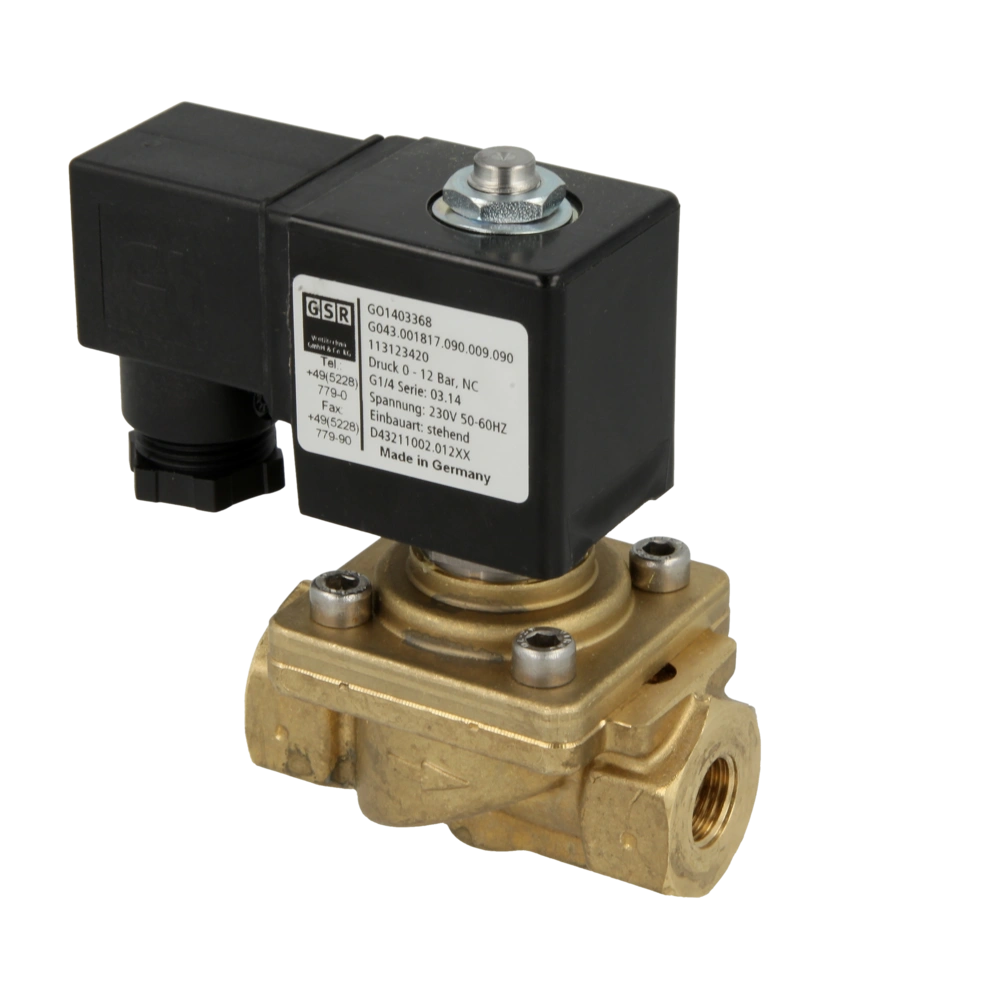

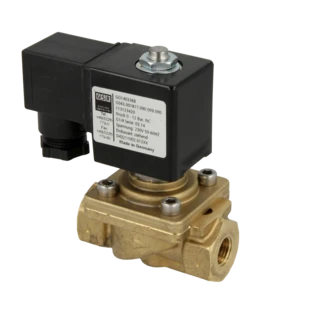

1/4" solenoid vakve with FKM seal E4321/1002/.012
OEG no.: 113123420
2/2-way solenoid valve with servo-assisted diaphragm for gaseous and liquid media in closed systems such as heating circuits as well as in machinery and plant engineering. The valve is normally closed...
All product information2/2-way solenoid valve with servo-assisted diaphragm for gaseous and liquid media in closed systems such as heating circuits as well as in machinery and plant engineering. The valve is normally closed when de-energised and intended for installation with the solenoid coil in an upright position.
For more information see Downloads
| OEG no. | 113123420 |
| Switch-on time: | 100 % ED |
| Design: | Force-controlled |
| Opening characteristics: | Normally closed (NC) |
| Type: | Series 43 |
| Connection size [inch]: | 1 | 4 |
| kv-value: | 1.8 m³/h |
| Seal: | FKM |
| Pressure [bar]: | 0 .. 12 |
| Voltage [V]: | 230 |
| Media temperature [°C]: | -10 .. 80 |
| Media: | Oils, Fuels |
| Manufacturer | GSR |
| Herstellernummer | E4321/1002/.012 |
| Also replaces |
|
| Weight [kg] | 0.73 |
| Customs tariff number | 84818087 |
