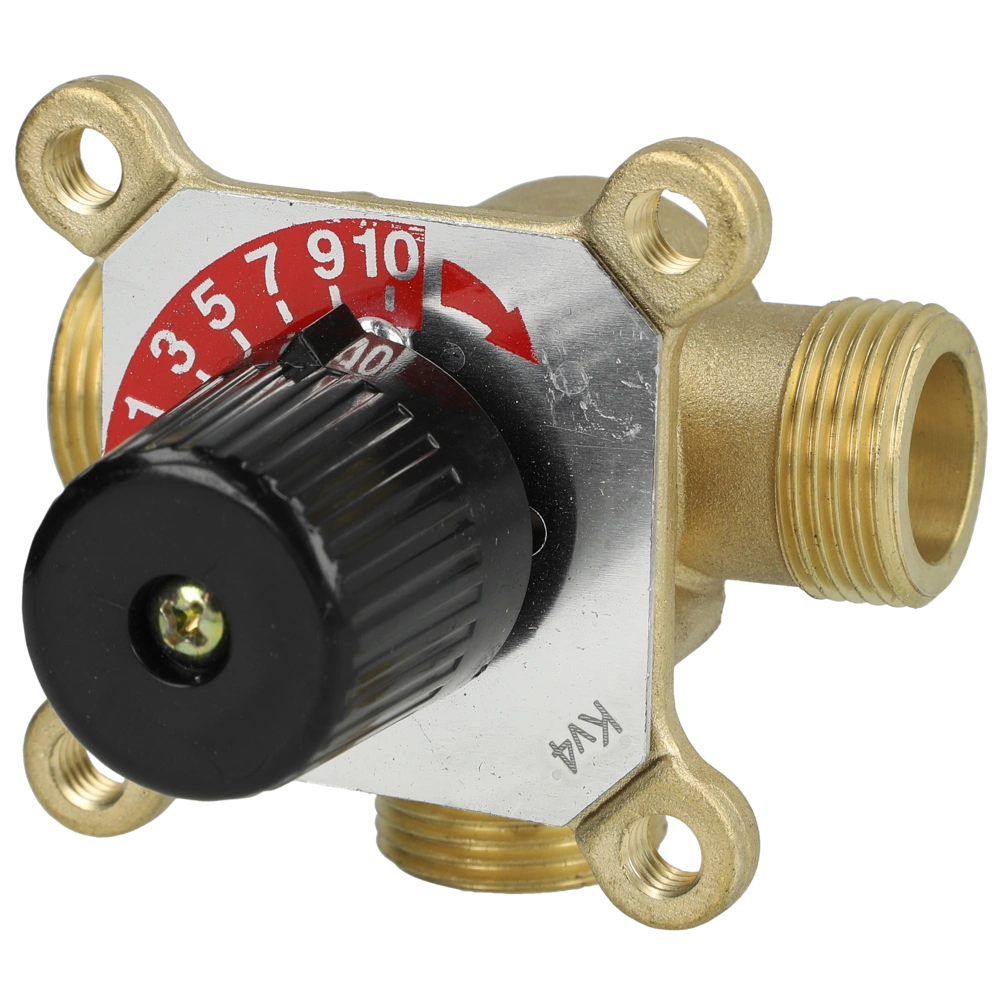

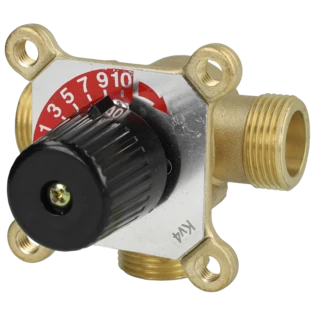

The 3-way compact mixing valve VRG stands out on account of its excellent control characteristics.
Due to a low required torque, the mixing valve is optimally applicable in conjunction with a motor control...
The 3-way compact mixing valve VRG stands out on account of its excellent control characteristics.
Due to a low required torque, the mixing valve is optimally applicable in conjunction with a motor control.
Supply and return temperature can be controlled regardless of the installation position.
It is suitable for right or left installation.
For more information see Downloads
| OEG no. | 512240532 |
| Material: | Brass |
| Nominal size: | DN20 |
| Type: | 3-way mixing valve ET |
| Connection size: | 3/4" ET |
| Operating pressure max. [bar]: | 10 |
| Media: | Water with up to 50 % glycol |
| Seal: | EPDM |
| kvs-value [m³/h]: | 2.8 |
| Temperature max. [°C]: | 110 |
| Type of connection: | Male thread |
| Weight [kg] | 0.59 |
| Customs tariff number | 84818051 (CN) |
Question
(Connection size: 1" ET | kvs-value [m³/h]: 5.0)
Gibt es für diesen Mischer einen Dichtungssatz ?
Answer OEG:
Einen Dichtungssatz für den Mischer gibt es leider nicht.
Question
(Connection size: 1¼" ET | kvs-value [m³/h]: 9.0)
hoe sluit ik deze aan
Answer OEG:
installeren en controleer hoe de verwarmingsmenger ingesteld is (Zie of het mengerinzetstuk in de menger open of gesloten is.) Let hierbij op de draairichting van de servormotor wanneer deze draait, anders opent of sluit de het mengerinzetstuk tijdens het opstarten of afsluiten.
You have to be logged in to ask a question
05/03/2015, 12:20:46 of: Mr mathieu
bon
bon produit rien a ajouter
