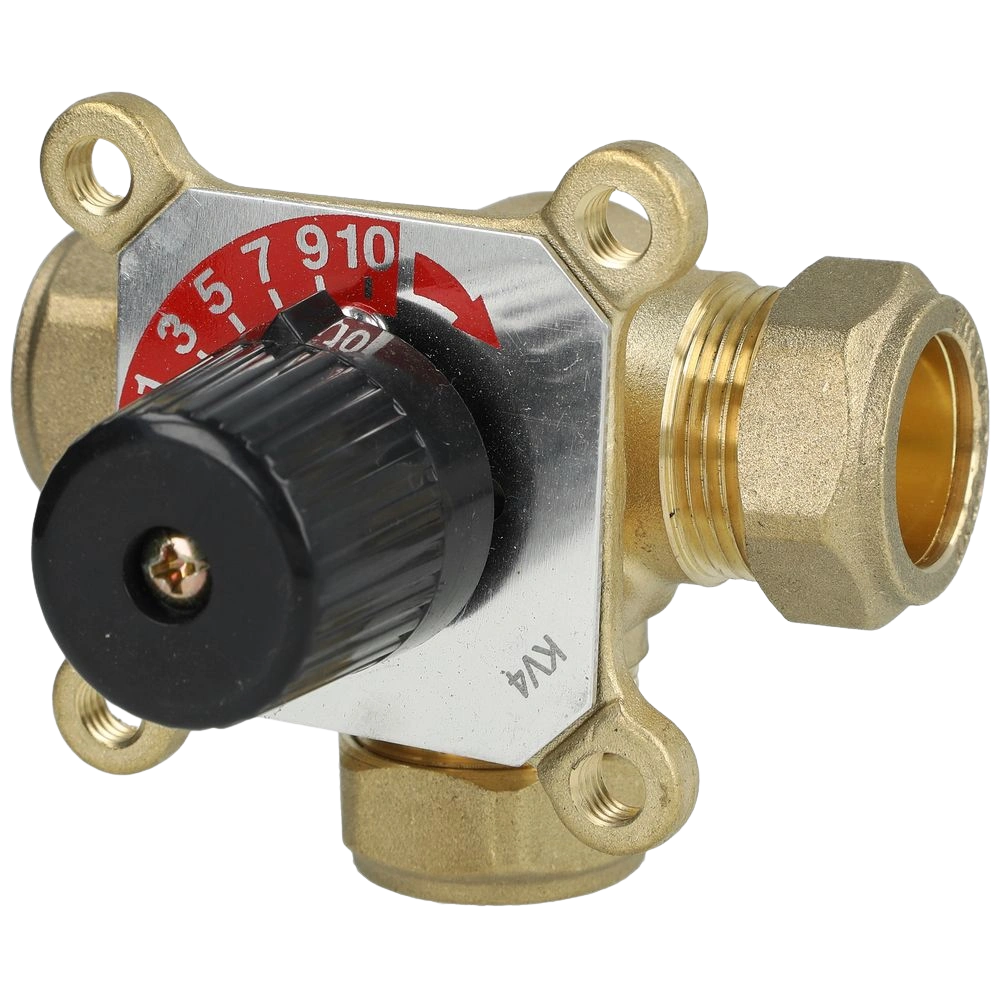

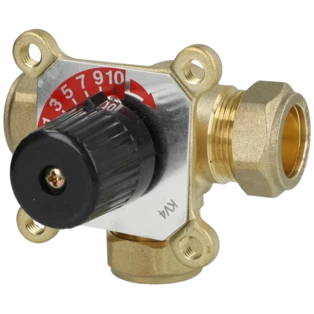

3-way mixing valve clamp ring Ø 22 mm
OEG no.: 512240639
The 3-way compact mixing valve has excellent control characteristics.
Due to the low torque, the mixing valve is ideally applicable in conjunction with a motor control.
Supply and return temperature...
The 3-way compact mixing valve has excellent control characteristics.
Due to the low torque, the mixing valve is ideally applicable in conjunction with a motor control.
Supply and return temperature can be controlled regardless of the installation position.
The suitable OEG actuator is 512400200.
For more information see Downloads
| OEG no. | 512240639 |
| Torque [Nm]: | 5 |
| Material: | Brass |
| Type: | 3-way mixing valve compression fitting |
| Connection size: | 22 mm |
| Operating pressure max. [bar]: | 10 |
| Media: | Water with up to 50 % glycol |
| kvs-value [m³/h]: | 6.3 |
| Seal: | EPDM |
| Temperature max. [°C]: | 110 |
| Type of connection: | Compression fitting |
| EAN | 4055668013714 |
| Weight [kg] | 0.7 |
| Customs tariff number | 84818051 (CN) |
Question
(Connection size: 28 mm | kvs-value [m³/h]: 4.0)
Beste OEG , ik heb onlangs de messing menger 512240610 besteld echter zou ik graag willen weten aan de as zit een plat stukje , is dit ook de zijde die hij af sluit Is hier een duidelijke foto of tekening van ? Ik hoor het graag
Answer OEG:
in het downloadbereik van dit artikel (3-way mixing valve clamp ring Ø 28 mm) is een tekening te vinden
