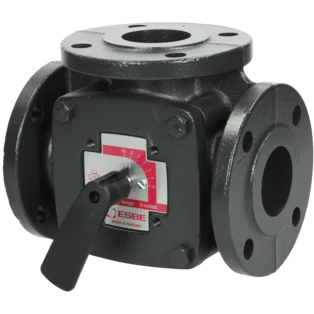

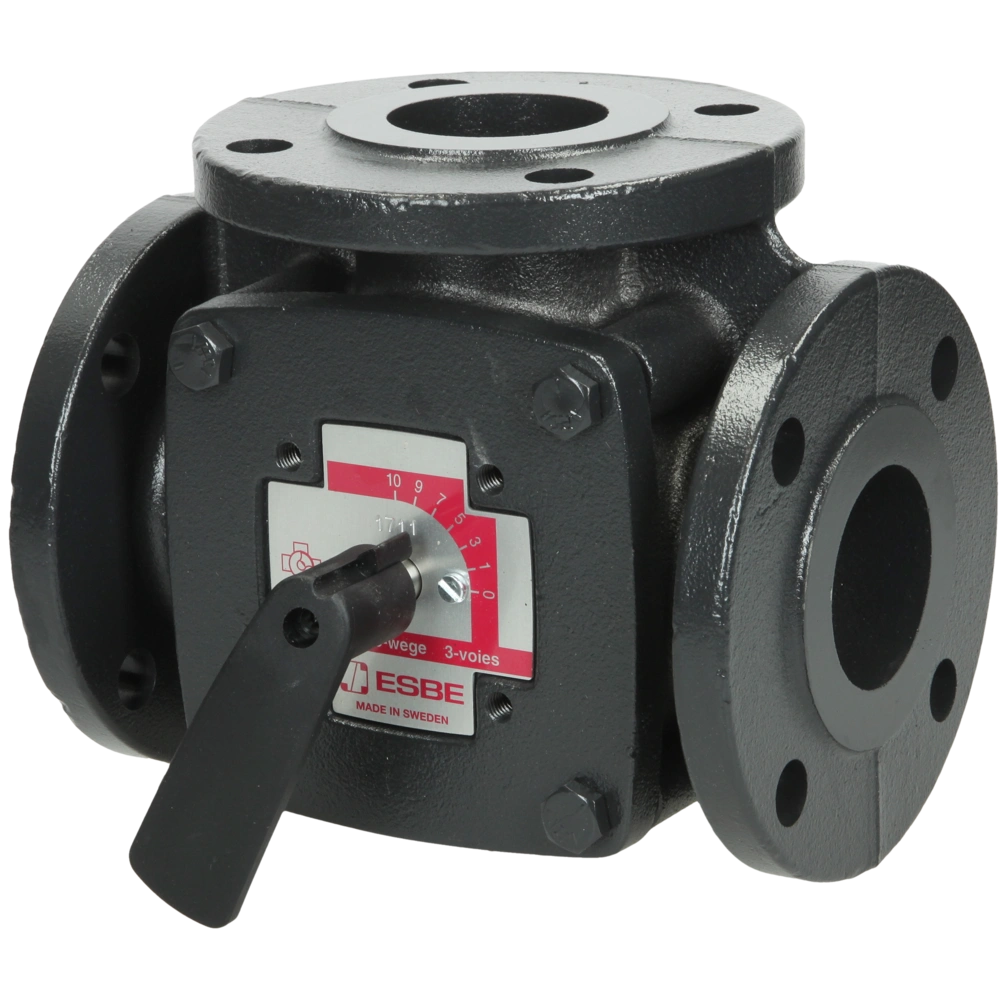

3-way mixing valve with flange connection DN50 11100600
OEG no.: 512200154
3-way mixing valve with flange connection for precise mixing and flow regulation in large heating, hot water and air- conditioning systems. Thanks to the straight passage, the mixing valve can be operated...
All product information3-way mixing valve with flange connection for precise mixing and flow regulation in large heating, hot water and air- conditioning systems. Thanks to the straight passage, the mixing valve can be operated both manually and by a motorised actuator. The special control curve in the chrome-plated cylinder plug ensures even temperature control. The 90° rotatable scale enables flexible installation.
The housing made of robust grey cast iron and the rotary valve seal with two EPDM O-rings ensure high stability and a long service life. The return connection is factory-set on the left-hand side, but can also be used on the right-hand side if required.
For more information see Downloads
| OEG no. | 512200154 |
| Nominal size [DN]: | 50 |
| Material: | Cast iron EN-JL 1,030 |
| Connection: | Flange according to EN 1092-2 |
| Pressure stage PN [bar]: | 6 |
| kvs-value [m³/h]: | 60 |
| differential pressure [mbar]: | 300 |
| Media temperature [°C]: | -10 .. 110 |
| Manufacturer | ESBE |
| Manufacturer number | 11100600 |
| Weight [kg] | 12.6 |
| Customs tariff number | 84818051 (SE) |
Question
Hello, do you have bigger sizes of this, DN100 or 125?
Answer OEG:
You will receive an offer from our sales department in due time.
Question
kann der Mischer als Umstellventil fungieren, kann er liegend montiert werden und welchen elektrischen Antrieb gibt es dazu ?
Answer OEG:
Guten Tag,
dieses 3-Wege Ventil kann nicht als Umschaltventil fungieren, da es keine absulute Nullstellung hat. Es kann liegend montiert werden. Einen passenden Stellmotor finden Sie unter der OEG Art.-Nr.: Actuator ESBE for mixing valve type 95.
Mit freundlichen Grüßen
