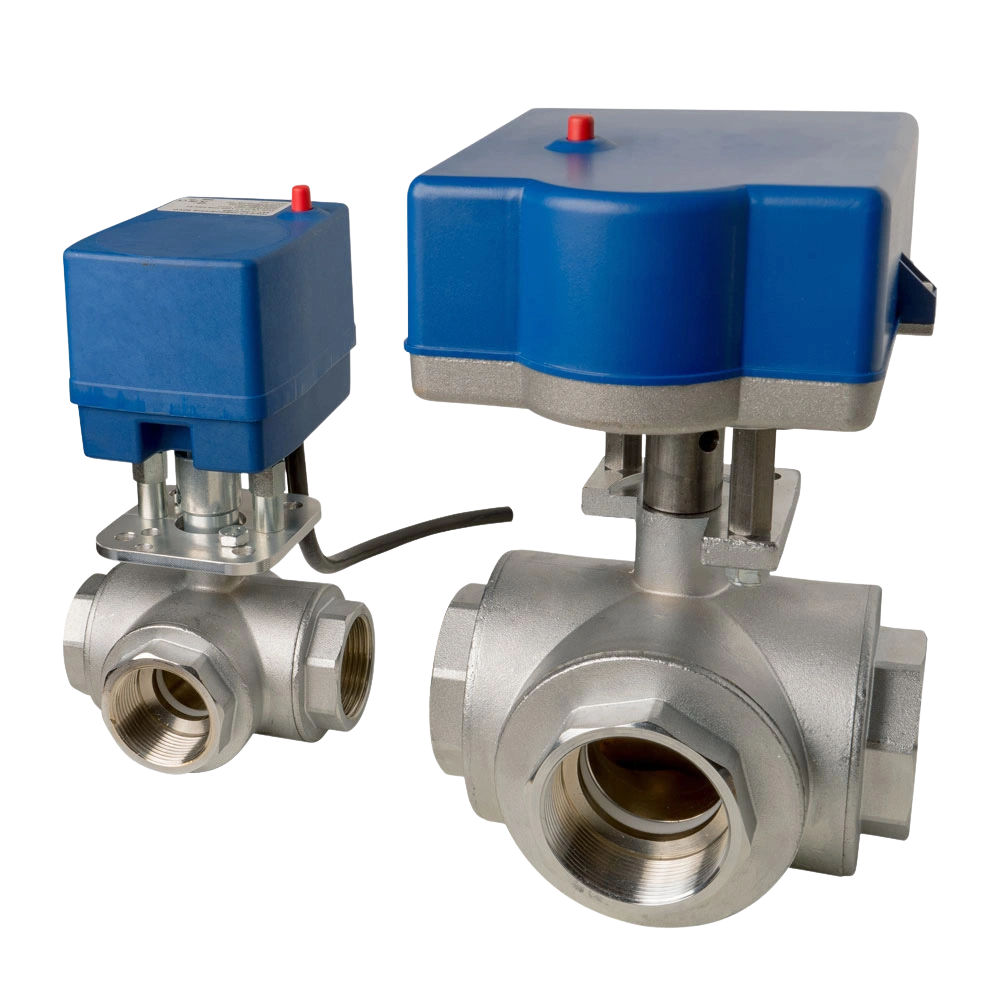

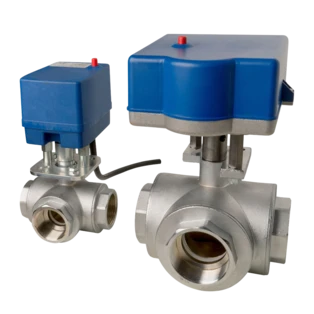

3-way motorised ball valve 1 1/2" IT with L-bore
OEG no.: 116339902
3-way ball valve with full bore in L-shape for the diversion of heat transfer fluid. The ball valve is suitable for high flow rates with low pressure loss and remains functional at high differential pressures...
All product information
CE
EAC
3-way ball valve with full bore in L-shape for the diversion of heat transfer fluid. The ball valve is suitable for high flow rates with low pressure loss and remains functional at high differential pressures. The motor is detachable and is provided with manual opening. Single-pole switching, the actuator only needs a control phase, resetting is via continuous phase.
For more information see Downloads
| OEG no. | 116339902 |
| Type: | 3-way |
| Drive: | 3-point |
| Material: | Brass CW 617N |
| Connection size: | 1 1/2" IT |
| Voltage [V]: | 230 |
| kvs-value [m³/h]: | 38 |
| Operating temperature [°C]: | -10 .. 120 |
| Ambient temperature [°C]: | -10 .. 50 |
| Operating pressure [bar]: | 16 |
| Switch contact: | SPST: single-pole switching |
| Auxiliary switch: | No |
| Protection type [IP]: |
 IP54
|
| Installation length [mm]: | 134 |
| Media: | Water, Water- Glycol max. 50 % |
| Closing time [s]: | 90°|100 |
| Design: | L-bore |
| Nominal size [DN]: | 40 |
| Weight [kg] | 2.2 |
| Notes |
CE
EAC
|
| Customs tariff number | 84818081 (IT) |
