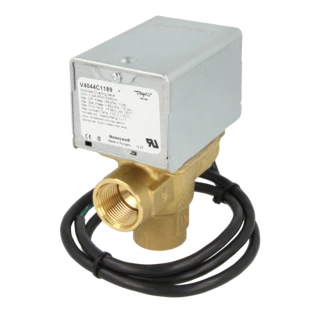

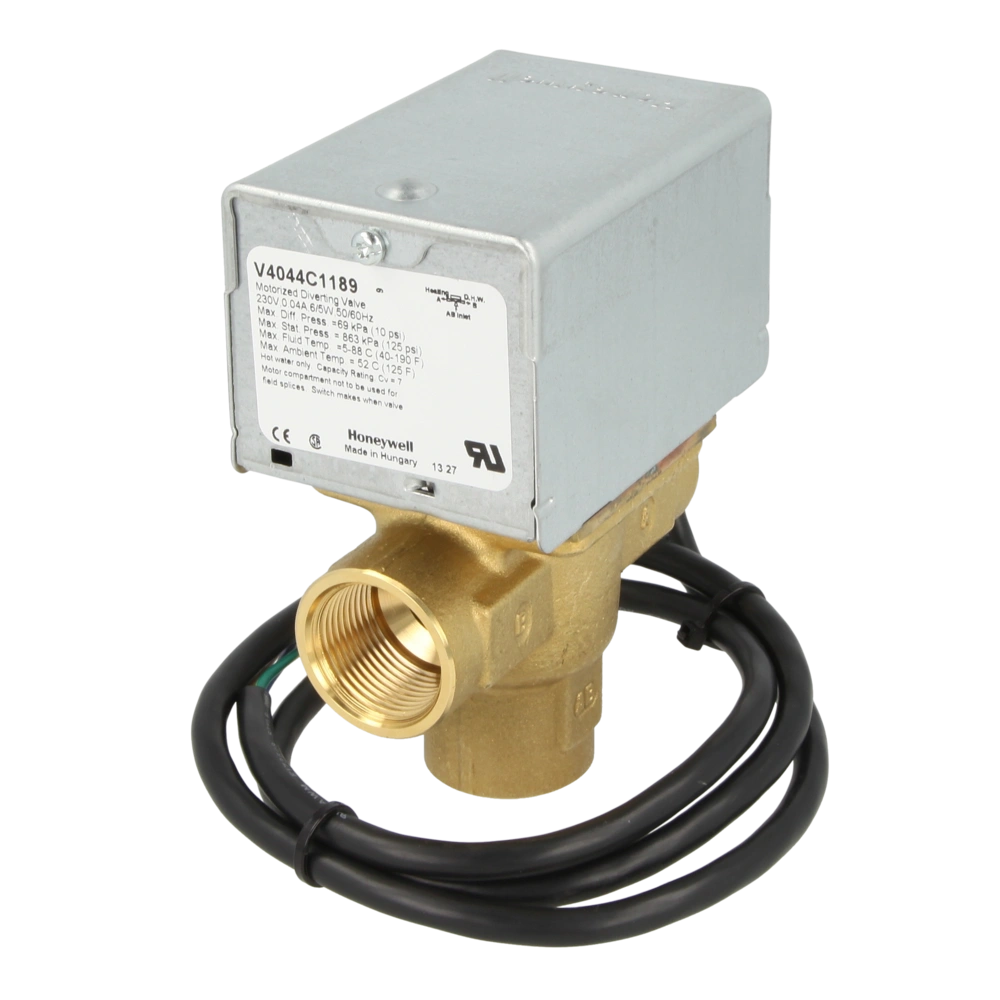

3-way zone valve 3/4" IT V4044C1189
OEG no.: 512240003
Three-way zone valve with electric actuator for heating and cooling systems to control the flow of cold and hot water.
The valve is particularly suitable for systems with circulation pump and DHW...
Resideo 5-year warranty
CE
Three-way zone valve with electric actuator for heating and cooling systems to control the flow of cold and hot water.
The valve is particularly suitable for systems with circulation pump and DHW priority circuit where a pressure increase in the DHW system and in the pipe network of the heating system shall take place.
For more information see Downloads
| OEG no. | 512240003 |
| Connection size: | 3/4" IT |
| Voltage [V]: | 230 |
| Design: | Spring-loaded return |
| Auxiliary switch: | No |
| kvs-value [m³/h]: | 6.0 |
| Operating pressure max. [bar]: | 8.6 |
| Cable length: | 1 |
| Media temperature [°C]: | 5 .. 88 |
| Media: | Water |
| Power consumption [W]: | 5 .. 6 |
| Closing time [s]: | 30 |
| Manufacturer | Honeywell |
| Manufacturer number | V4044C1189 |
| Weight [kg] | 1.2 |
| Notes |
Resideo 5-year warranty
CE
|
| Customs tariff number | 84818059 (IT) |
Question
est ce que le vanne règle automatiquement a une température définie la sort?
Answer OEG:
Non, mais la commande de la vanne de zone (fonction ouverture / fermeture) peut être effectuée, selon l'application, par un thermostat à horloge comme CM67 (voir schéma de l'installation) ou CM Zone avec CM67z et R6660D.
