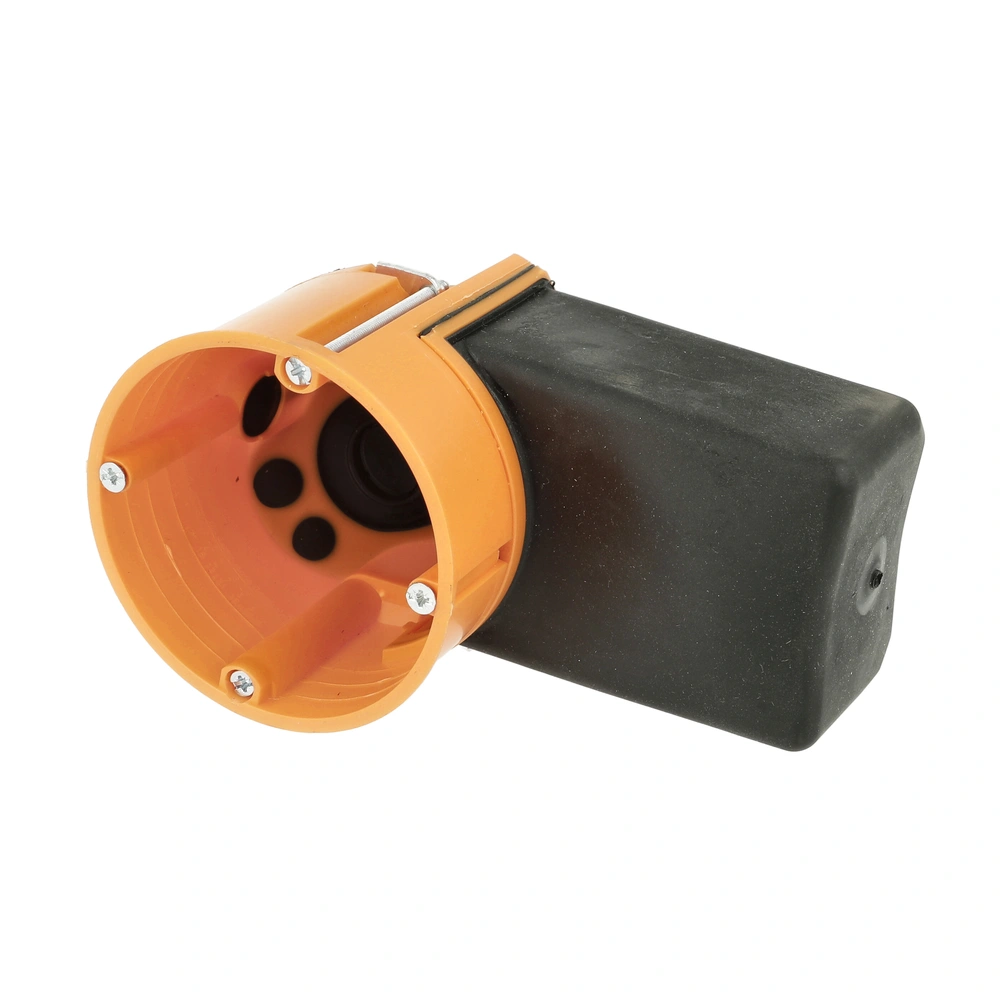

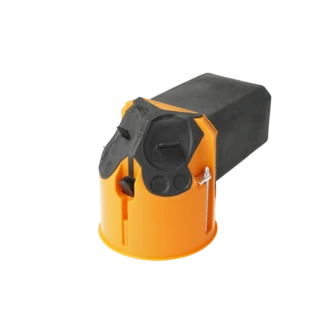

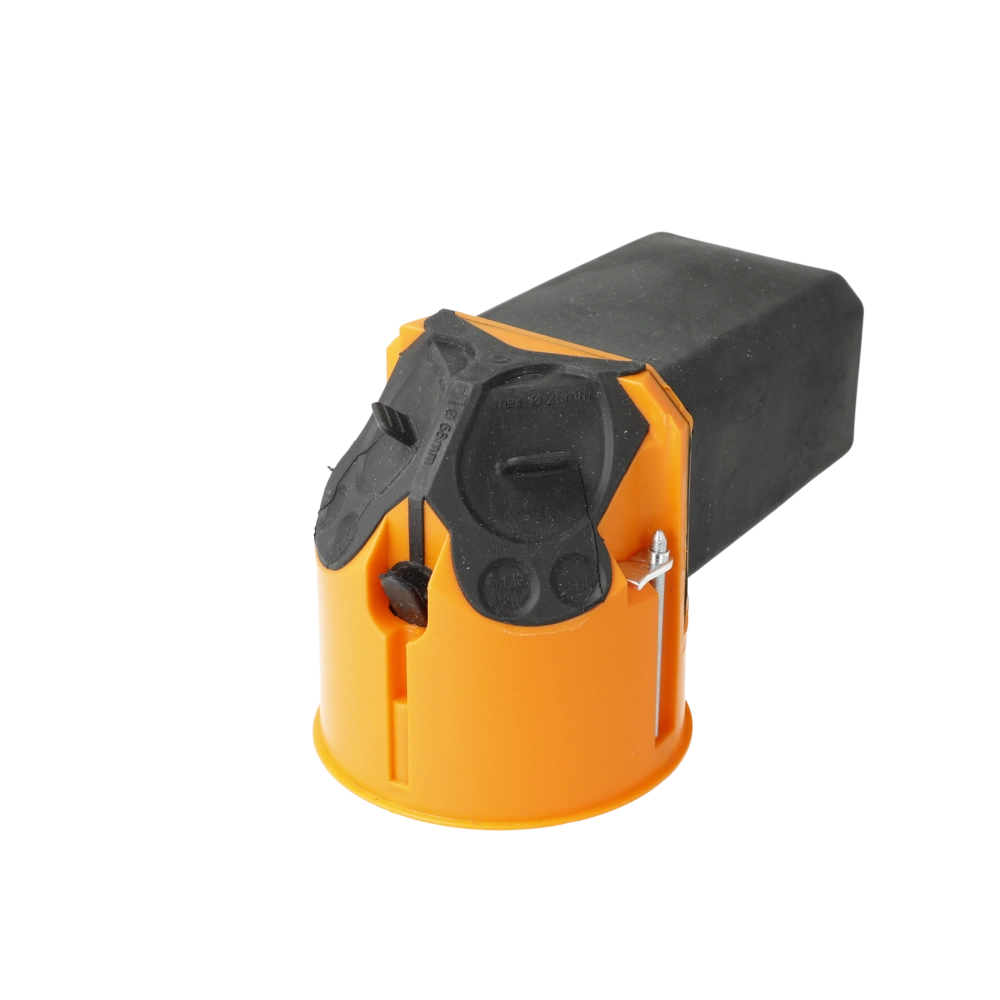

Airtight electronics box with flexible tunnel 68 mm 9268-94
OEG no.: 716999997
Airtight electronics box for installations in accordance with EnEV and for installations under clean room or enhanced hygiene conditions. Elastic sealing membranes guarantee airtightness. Cable and conduit entry is toolfree...
All product information
PU
OSB
Suitable for gypsum fibreboards
Wood
Airtight electronics box for installations in accordance with EnEV and for installations under clean room or enhanced hygiene conditions. Elastic sealing membranes guarantee airtightness. Cable and conduit entry is toolfree. The flexible tunnel allows for easy installation and creates space for electronic components, cable reserves and terminals. The only tool you will need for the installation of the box is a screwdriver.
For more information see Downloads
| OEG no. | 716999997 |
| Protection type [IP]: |
 IP30
|
| Temperature max. [°C]: | 850 |
| Diameter [mm]: | 68 |
| Depth [mm]: | 75 |
| Wall thickness [mm]: | 7 .. 30 |
| Wire cross-section [mm²]: | 1.5 .. 2.5 |
| Mounting type: | Flush-mounted |
| Cable entries: | 6 |
| Pipe diameter [mm]: | 25 |
| Type: | O-range ECON Flex |
| Manufacturer | Kaiser |
| Manufacturer number | 9268-94 |
| Weight [kg] | 0.2 |
| Notes |
PU
OSB
Suitable for gypsum fibreboards
Wood
|
| Customs tariff number | 39259080 |
