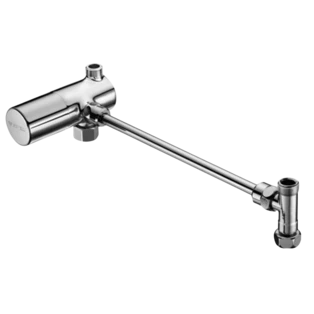

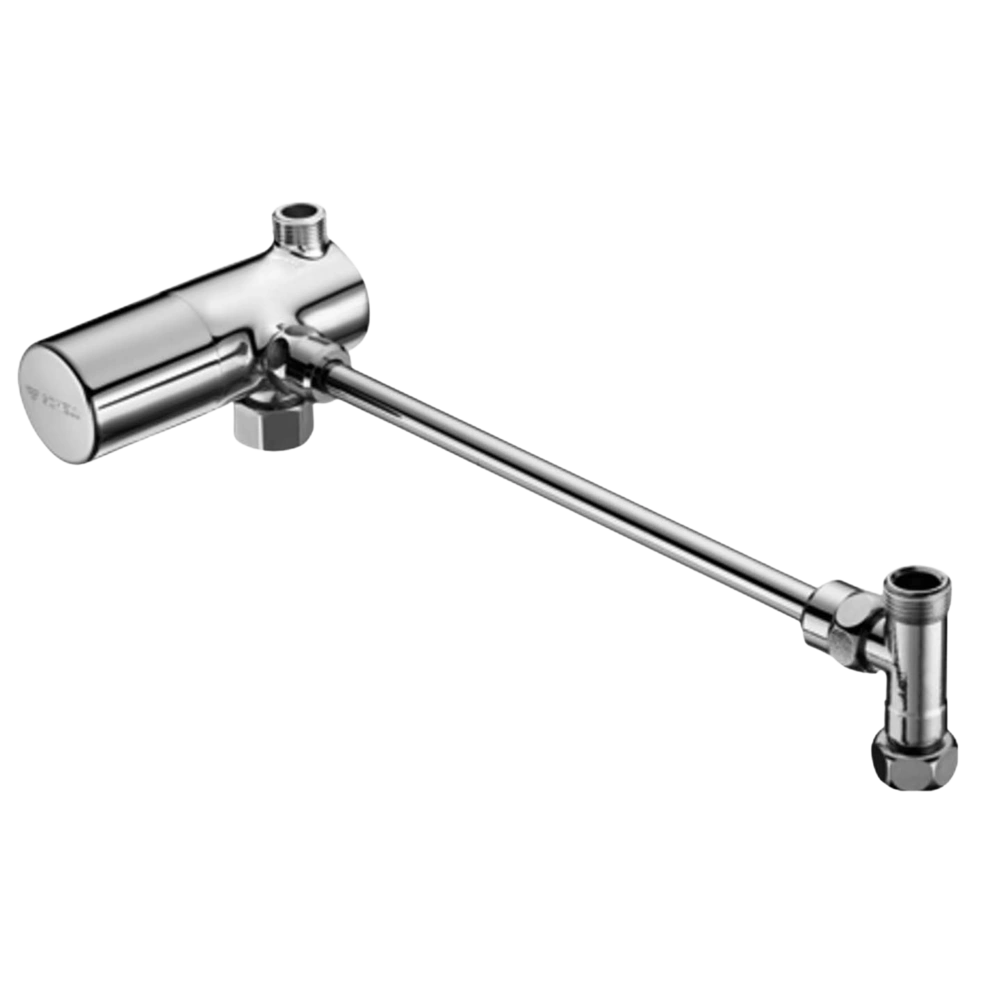

Angle valve thermostat set with rigid pipework 094150699
OEG no.: 805001488
OEG no. : 805001488
Thermostatic anti-scalding protection fitting with rigid pipe set for installation on angle valves with 3/8" ET outlet. Setting of max. draw-off temperature via thermostat, thermal disinfection is also possible...
All product information Scope of delivery
certified by DVGW
ACS
Thermostatic anti-scalding protection fitting with rigid pipe set for installation on angle valves with 3/8" ET outlet. Setting of max. draw-off temperature via thermostat, thermal disinfection is also possible. The connecting pipe has 2 high-tensile brass cone compression fittings with length compensation and a tee with movable union nut 3/8" IT.
| Scope of delivery: | |||
| 1 x | Angle valve thermostat | ||
| 1 x | Pipe set for angle valve thermostat | ||
For more information see Downloads
| OEG no. | 805001488 |
| Connection size angle valve: | 3/8" IIT |
| Connection size flex hose: | 3/8" ET |
| Axial dimension: | 264 |
| Noise class: | I |
| Flow rate [l/min]: | 13 |
| Operating pressure [bar]: | 3 |
| Housing: | Brass chrome-plated |
| Control temperature [°C]: | 33 .. 50 |
| Manufacturer | Schell |
| Manufacturer number | 094150699 |
| EAN | 4021163168679 |
| Weight [kg] | 0.87 |
| Notes |
certified by DVGW
ACS
|
| Customs tariff number | 84818079 |
