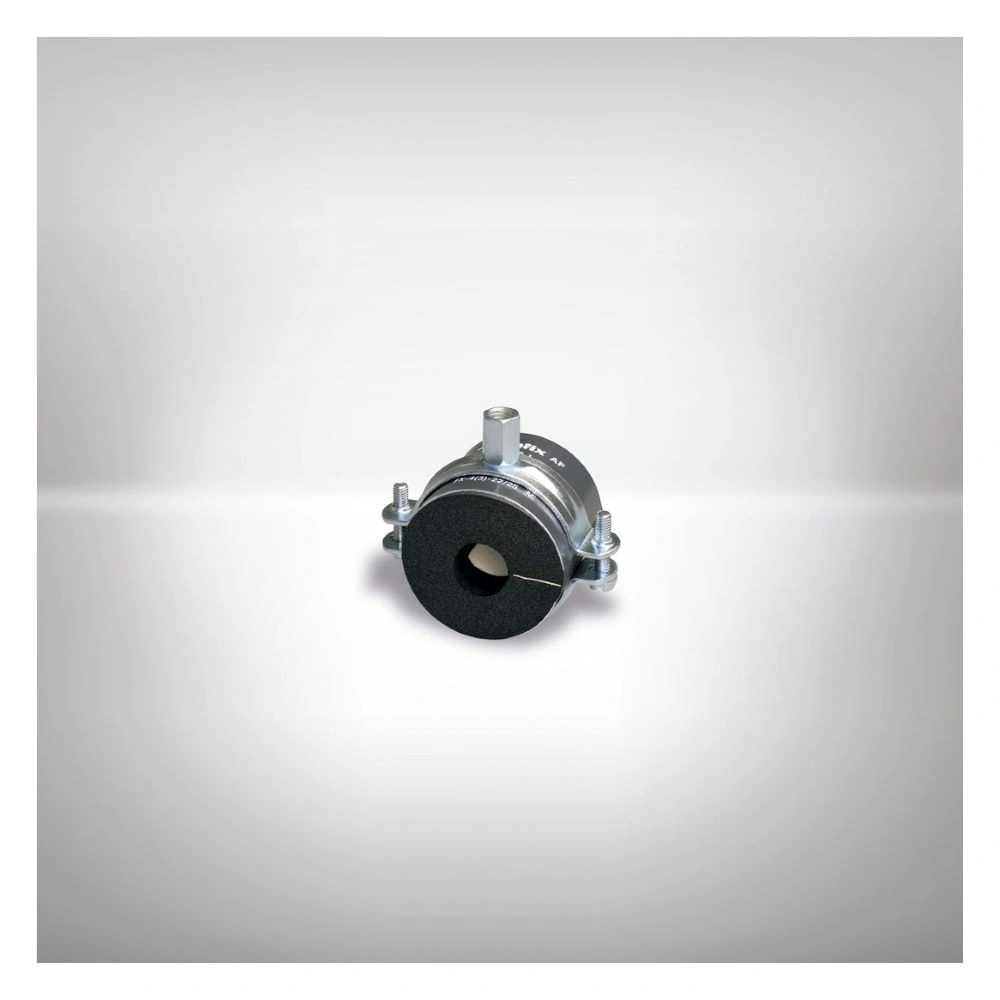

Armafix AF insulated pipe clamp for 35 and 38 mm FX433538K
OEG no.: 311922116
Pipe clamp with load‑bearing ArmaForm segments for fixing pipes. The clamp encloses the insulation shells from the outside with thermal separation, preventing cold bridges and condensation. The pipe...
All product information Scope of delivery

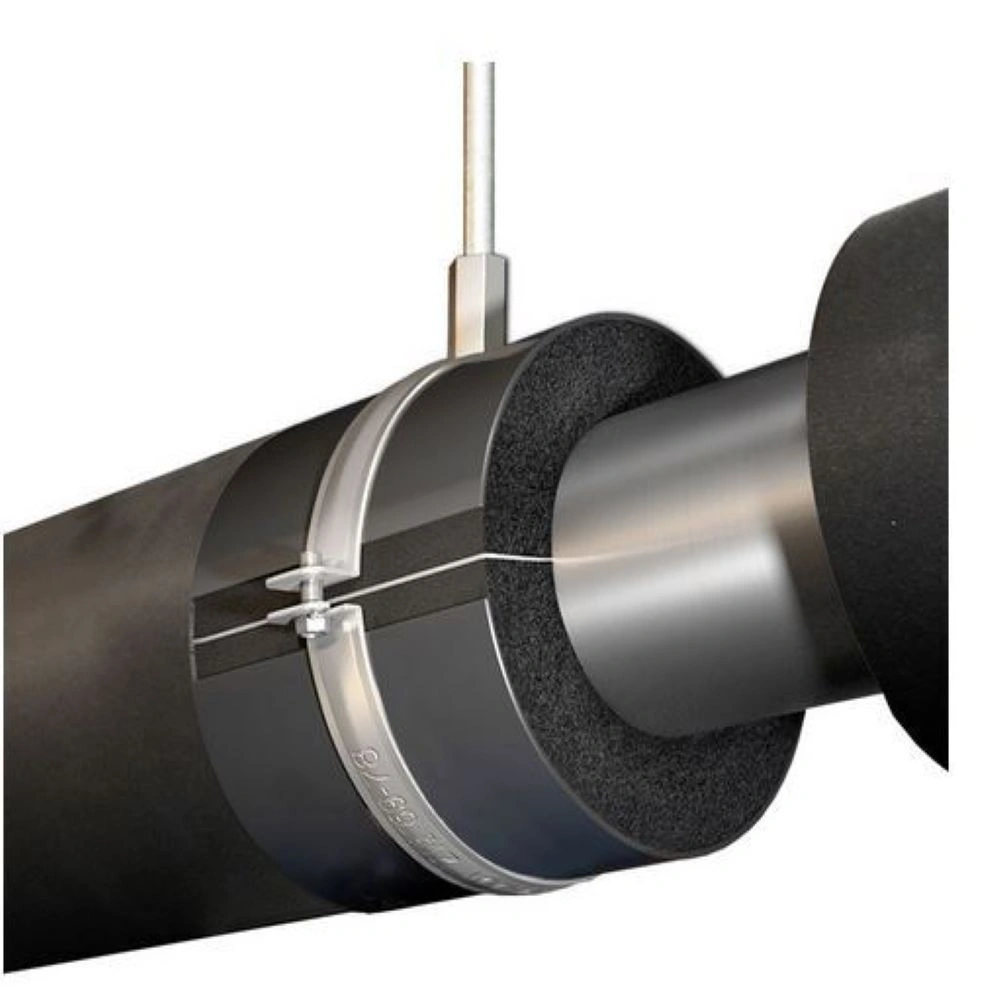

Pipe clamp with load‑bearing ArmaForm segments for fixing pipes. The clamp encloses the insulation shells from the outside with thermal separation, preventing cold bridges and condensation. The pipe supports are matched to the ArmaFlex product range according to the insulation thickness.
| Scope of delivery: | |||
| 1 x | pipe clamp | ||
| 2 x | Bearing jacket | ||
For more information see Downloads
| OEG no. | 311922116 |
| Suitable for pipe diameter [mm]: | 35 .. 38 |
| Thickness of insulation layer [mm]: | 15.5 .. 22.5 |
| Media temperature [°C]: | -50 .. 110 |
| Density: | 95 .. 105 kg/m³ |
| Fire protection class: | Euroclass : E(L) / E |
| Standard: | according to EN13501-1 EN |
| Type: | FX-4(3)-35/38K |
| Manufacturer | Armacell |
| Herstellernummer | FX433538K |
| Weight [kg] | 0.25 |
| Notes | |
| Customs tariff number | 39269097 |
There are no questions available on this item yet
Technical data sheet (PDF)
- 1.6MB
