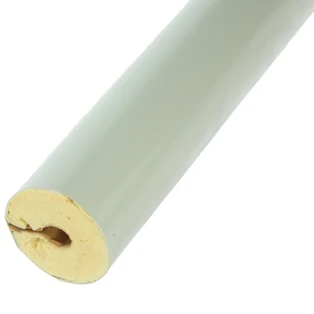

Armalok PUR tube sheath 22 x 20 mm
OEG no.: 311921382
The self-adhesive PUR tube sheaths are particularly suitable for the professional pipe insulation in visible range.
The meticulously-made PVC-cladding protects the insulation of visible pipelines...
Related products
The self-adhesive PUR tube sheaths are particularly suitable for the professional pipe insulation in visible range.
The meticulously-made PVC-cladding protects the insulation of visible pipelines.
These polyurethane insulations for heating and sanitary applications are normally inflammable according to DIN 4102 B2.
The insulation meets the EnEV regulations 100%.
Properties:
Bulk density of material: 25 kg/m³
Cladding: matt-grey PVC-foil
Suitable for:
Iron pipes DN15, ½"
Copper pipes DN20, 22 mm
For more information see Downloads
| OEG no. | 311921382 |
| PU | 1,000 mm |
| Thermal conductivity [W / m * k]: | 0.035 |
| Fire protection class: | B2 |
| Thickness of insulation layer [mm]: | 20 |
| Temperature max. [°C]: | 110 |
| EnEV - GEG [%] : | 100 |
| Type: | Tube sheath |
| Outer pipe diameter max. [mm]: | 22 |
| Manufacturer | Armacell |
| Weight [kg] | 0.16 |
| Customs tariff number | 39269097 (PL) |
Question
peut on le mettre a l'exterieur ?
Answer OEG:
cet article n'est pas prevu pour l'utilisation à l'exterieur. Merci de verifier HT/Armaflex solar insulation for 22 mm pipes, il est resistant UV
You have to be logged in to ask a question
21/03/2018, 19:35:39 of: Mr MI
Bien
Utilisation facile et bon produit
