Assembly block hot-cold for COAX water meters
OEG no.: 819001150
Insulated assembly block for COAX cold- and hot-water meter measuring capsules. The PU foam casing ensures sound and heat insulation. 3/4" flush-mounted shut-off valves are integrated. Tile mounting...
All product information Scope of delivery
certified by DVGW

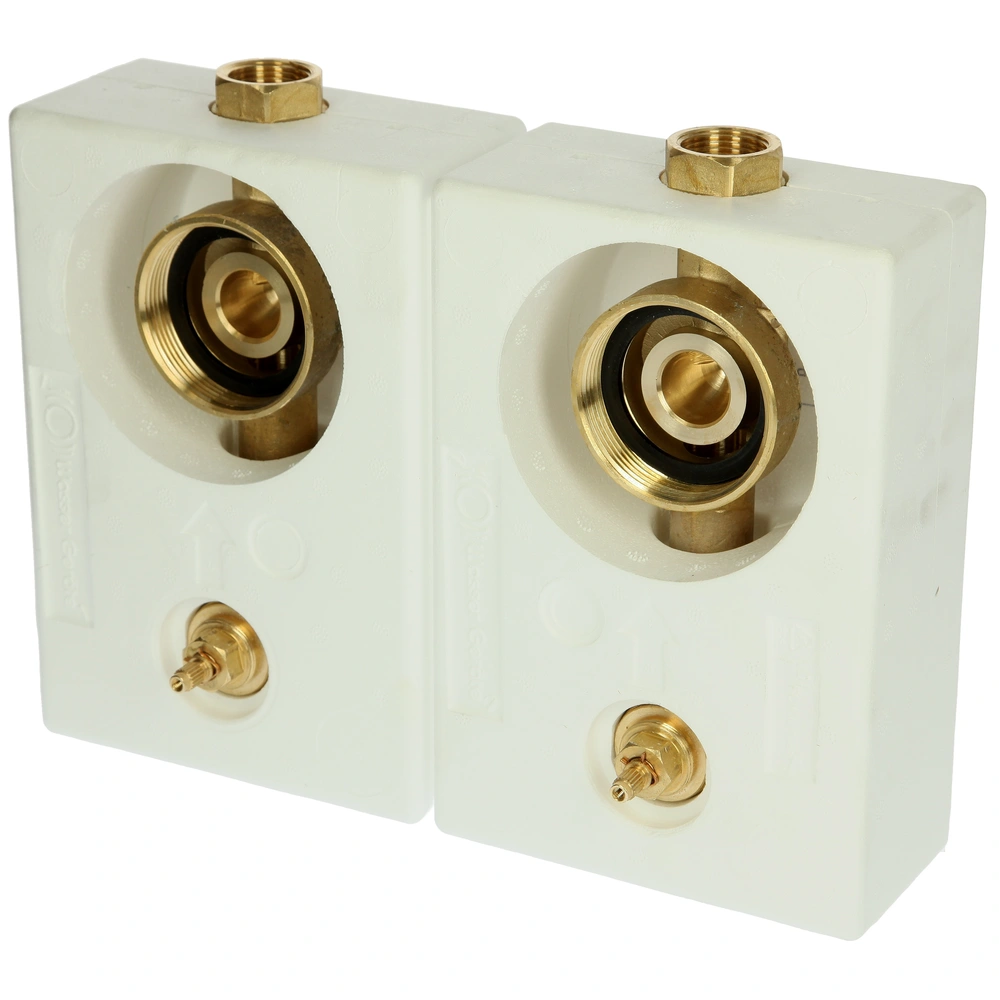

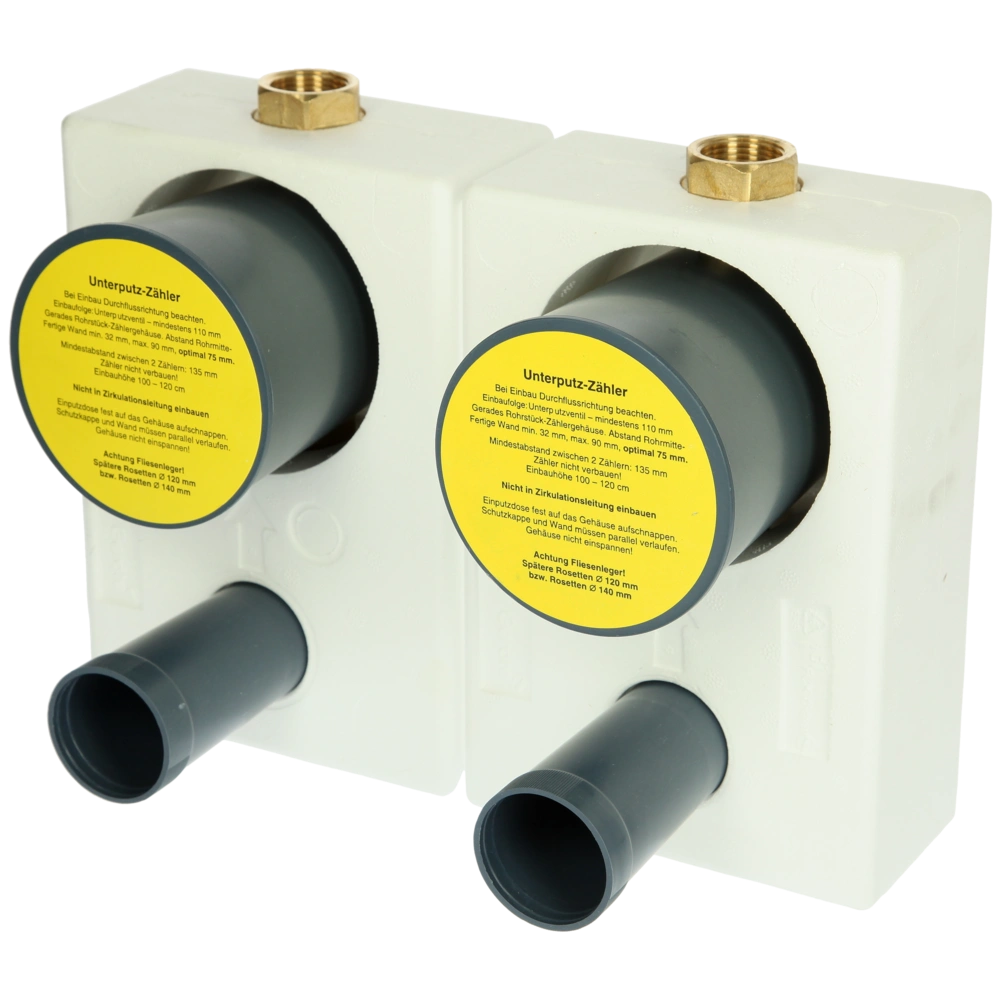

Insulated assembly block for COAX cold- and hot-water meter measuring capsules. The PU foam casing ensures sound and heat insulation. 3/4" flush-mounted shut-off valves are integrated. Tile mounting is possible without prior surface treatment. The component is suitable for the assembly in masonry, rear walls and sides. The double assembly block can be easily changed into two mono-blocks by sawing up the insulation.
| Scope of delivery: | |||
| 2 x | concealed housing | ||
| 2 x | concealed valves | ||
| 1 x | insulation (separable double/single) | ||
| 4 x | protective cap | ||
| 4 x | universal brackets | ||
| 4 x | Screws and wall plugs | ||
For more information see Downloads
| OEG no. | 819001150 |
| Material: | Brass |
| Meter connection: | 2" IT |
| Connection size: | 3/4" IT |
| Length x Width x Height [mm]: | 210 x 290 x 70 |
| Compatible with: | Ista, COAX |
| Insulation: | Polystyrene |
| Also replaces |
|
| Weight [kg] | 3.83 |
| Notes |
certified by DVGW
|
| Customs tariff number | 90289090 |
Question (Material: Brass)
hallo welche Zählerkapsel kann ich bestellen für den Montageblock
Answer OEG:
EAS measuring capsule type IE for cold and hot water ist passend für den Montageblock.
You have to be logged in to ask a question
24/07/2016, 11:58:49 of: Mr Feld
gut
Ein sehr guter Montageblock Messing-Double-Ausführung Typ IE G 2"
04/07/2016, 16:01:35 of: Mr Feld
gut
Ein sehr stabiler und schneller Montageblock Messing-Double-Ausführung Typ IE G 2"
