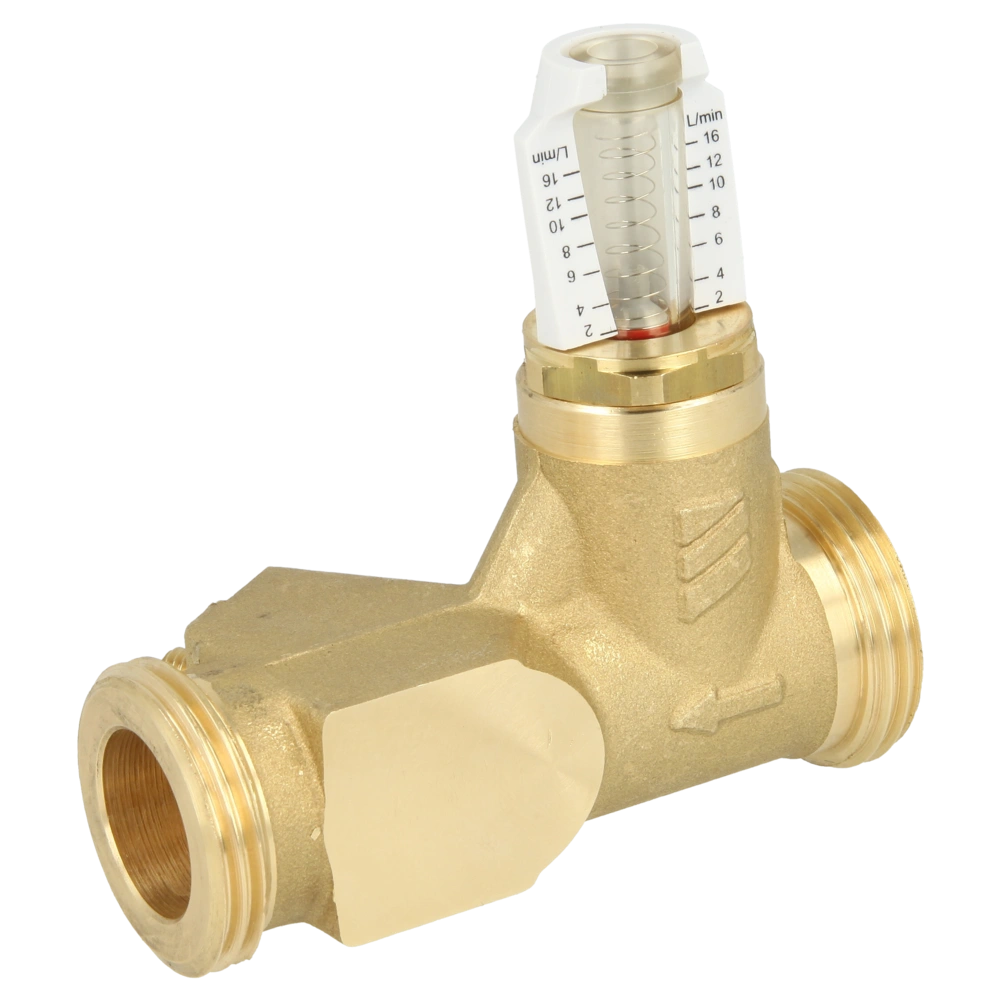

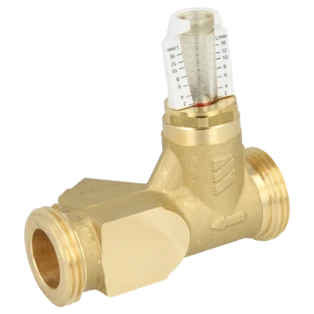

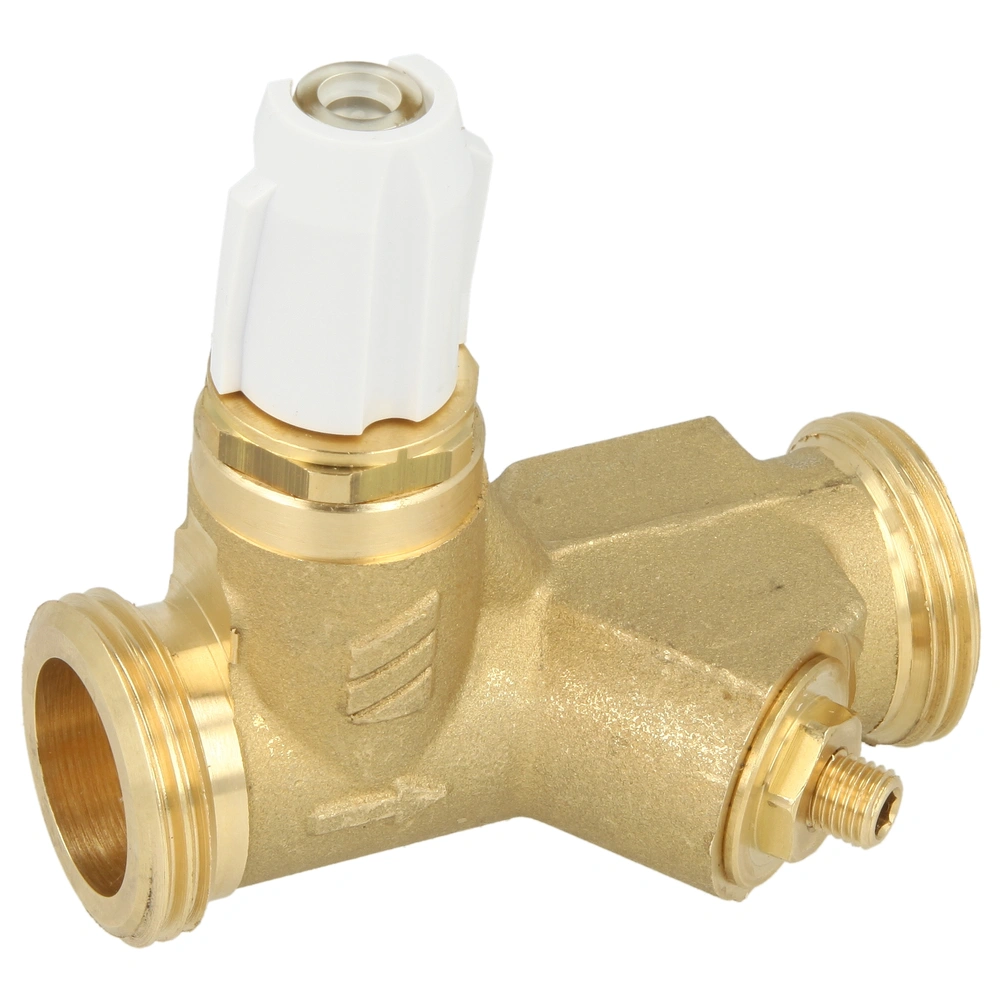

Balancing valve WattFlow BP 1" 10010138
OEG no.: 512003700
OEG no. : 512003700
Balancing valve for the regulation of consumer circuits in HVAC systems as well as for balancing solar and heat pump systems. The flow display is not positioned directly in the medium flow and is, therefore, protected against soiling...
All product informationBalancing valve for the regulation of consumer circuits in HVAC systems as well as for balancing solar and heat pump systems. The flow display is not positioned directly in the medium flow and is, therefore, protected against soiling. The scale element can be rotated around its own axis, thereby allowing convenient read-off of the volume flow in any installation position.
For more information see Downloads
| OEG no. | 512003700 |
| Seal: | EPDM |
| Housing: | Brass |
| Nominal size [DN]: | 15 |
| Flow rate [l/min]: | 2 .. 16 |
| Connection size: | 1" ET |
| Operating temperature [°C]: | -20 .. 100 |
| Operating pressure max. [bar]: | 10 |
| kvs-value [m³/h]: | 3.0 |
| Manufacturer | Watts |
| Manufacturer number | 10010138 |
| Weight [kg] | 0.5 |
| Customs tariff number | 84818059 |
