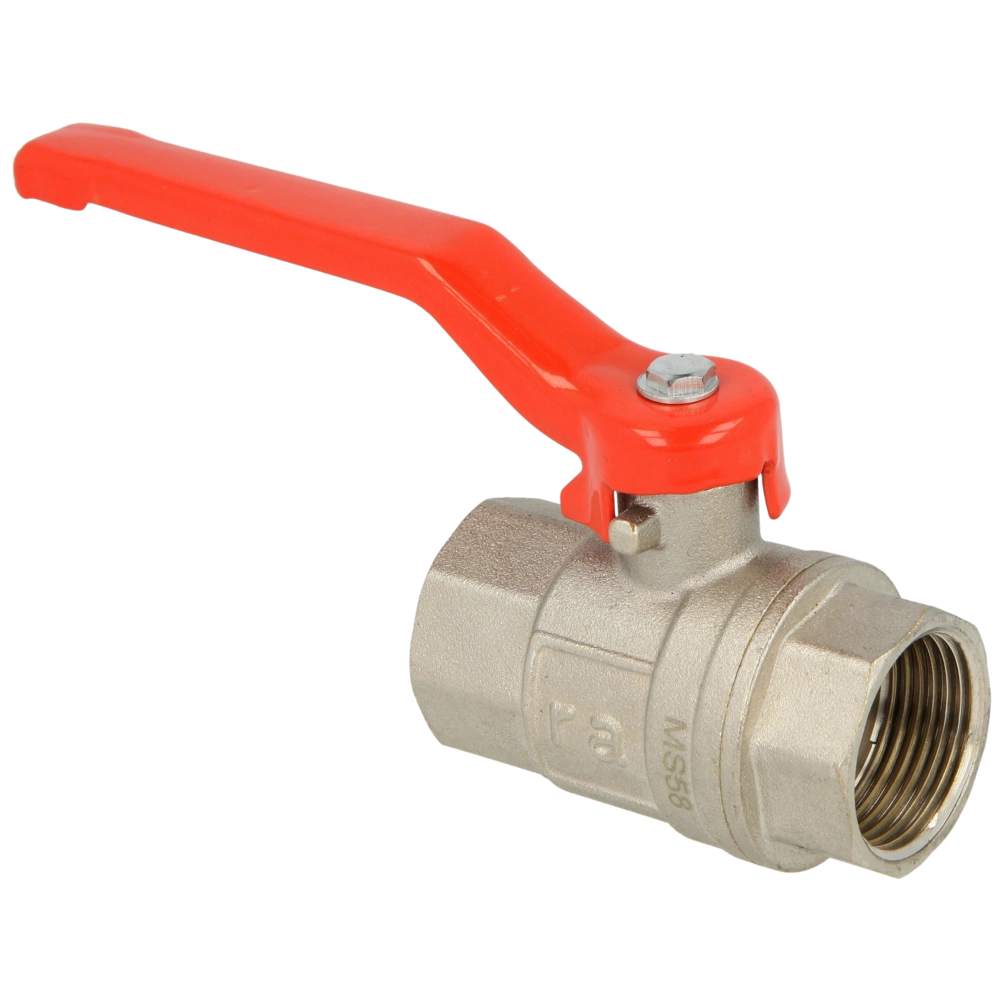

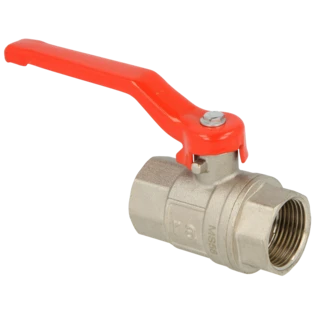

Ball valve 1 1/2" IT with steel lever red 0900112
OEG no.: 116338790
Ball valve for water supply, heating or air-conditioning systems with female thread on both ends. The red lever handle is made of painted steel, the body is made of brass according to CW617N.
All product information
Ball valve for water supply, heating or air-conditioning systems with female thread on both ends. The red lever handle is made of painted steel, the body is made of brass according to CW617N.
For more information see Downloads
| OEG no. | 116338790 |
| Connection size: | 1 1/2" |
| Type of connection: | Female thread | Female thread |
| Nominal pressure PN [bar]: | 30 |
| Nominal size: | DN40 |
| Seal: | PTFE |
| Length [mm]: | 94.5 |
| Material: | Brass CW617N nickel-plated |
| Manufacturer | Itap |
| Manufacturer number | 0900112 |
| Also replaces |
|
| Weight [kg] | 0.86 |
| Customs tariff number | 84818081 (IT) |
Question
(Connection size: 1")
kan deze kraan gebruikt worden voor stookolie ? diesel ?
Answer OEG:
Helaas is het alleen geschikt voor water.
Voor olie bijv. Ball valve 1" IT/IT with insulated steel lever of Ball valve 1" IT/IT with steel sheet lever red deze zijn geschikt voor huisbrandolie, brandstoffen en dieselolie.
Question
(Connection size: 1")
Can this valve be used with etanol or glykol mixture and down to -10c*?
Answer OEG:
The valve usually works from – 20 degree to 120 degree. And also for etanol or glycol should be ok with -10 degree but life will be not as long as water.
Question
(Connection size: 1")
Bitte um die Einbaulänge von diesem Artikel
Answer OEG:
Guten Morgen,
die Einbaulänge beträgt 80,5mm.
Mit freundlichen Grüßen
Question
(Connection size: 1")
Mit oder ohne Stopfbüchse ?
Answer OEG:
Er ist ohne Stopfbüchse.
Question
(Connection size: 1")
Wie ist denn der Temperaurbereich zu diesem Produkt?
Answer OEG:
Der Temperaturbereich liegt bei -20°C bis maximal 120°C.
You have to be logged in to ask a question
05/03/2017, 12:27:10 of: Mr Feld
gut
Kugelhahn besteht aus gutem Material
