Ball valve 3/4" ET with draining

(1)
Ask the first question about this item
OEG no.: 805002924
  • Also replaces
    schließen Also replaces:
    • 805002940 (Ball valve DVGW, ET 1/2" x 75 mm, DN15 with wing handle, with drain CW 617-M)

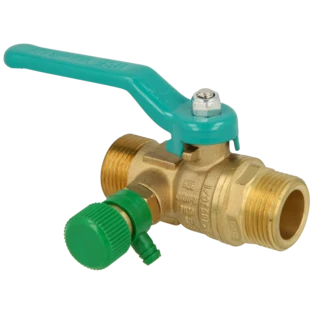

Zoom Ball valve 3/4" ET with draining

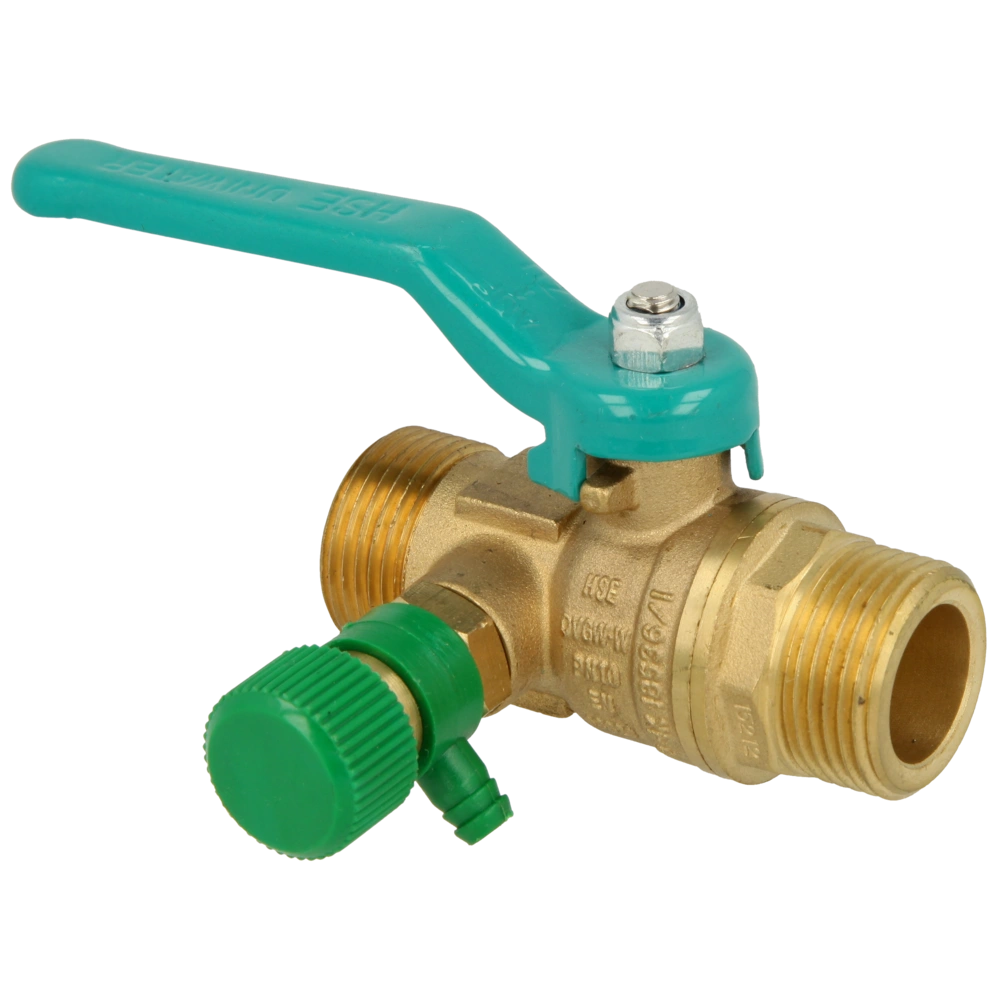

DVGW-compliant drinking water ball valve made of brass with long lever and draining.

All product information
certified by DVGW

certified by DVGW
certified by DVGW
Wipe 'n' Buy ®

DVGW-compliant drinking water ball valve made of brass with long lever and draining.


For more information see Downloads


OEG no. 805002924
Connection size: 3/4"
Type of connection: Male thread | Male thread
Pressure [bar]: 50
Material: Brass CW 617 N
Total length [mm]: 75
Standard: DIN EN 13828
Seal: PTFE (ball and stem)
Nominal size [DN]: 15
Draining facility:
Yes

Yes
Yes
Also replaces
  • 805002940 (Ball valve DVGW, ET 1/2" x 75 mm, DN15 with wing handle, with drain CW 617-M)
Weight [kg] 0.2
Notes
certified by DVGW

certified by DVGW
certified by DVGW
Customs tariff number 84818081 (CN)
There are no questions available on this item yet

You have to be logged in to ask a question

Average customer assessment
Bewertungen
en 26/01/2015, 19:27:45 of: Mr Jöhnk

Gut und Preiswert

Ich bin damit zufrieden Preis Leistung stimmt

In order to give a review, you have to be logged in.
