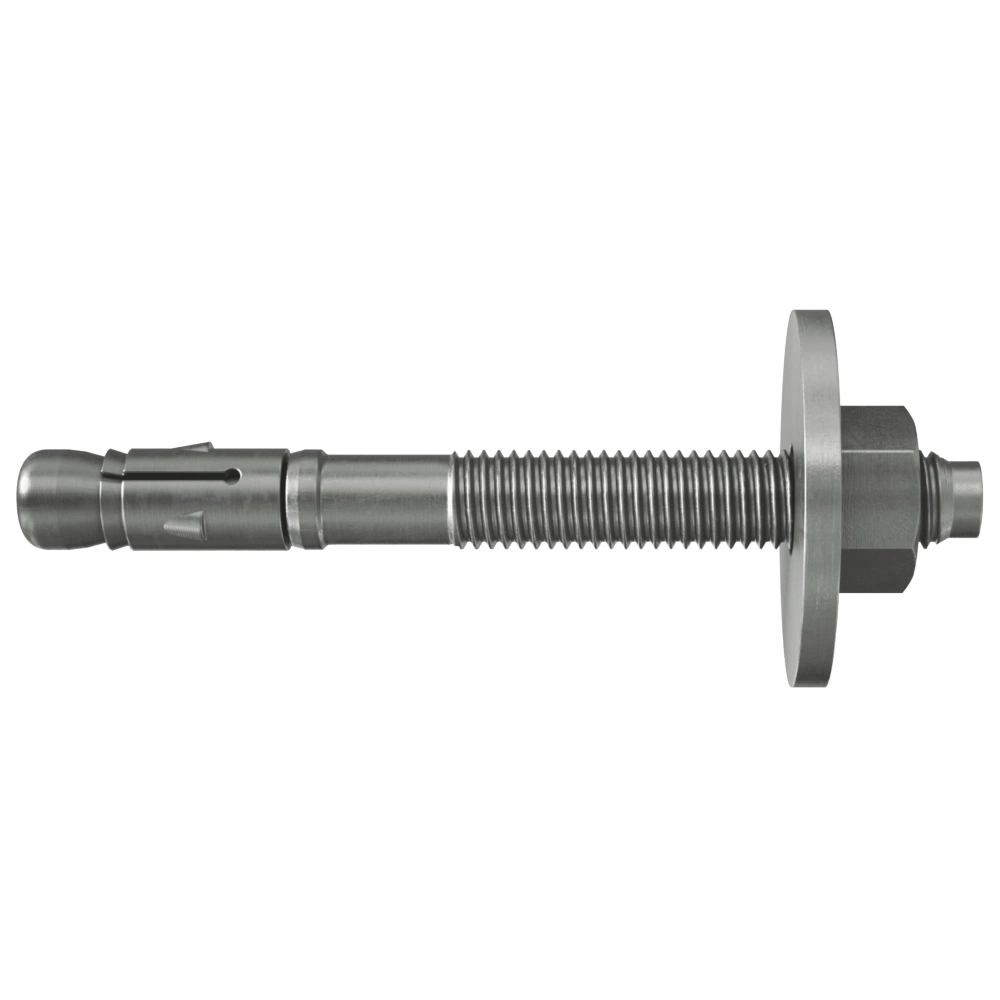

Bolt anchor FBZ GS R 10 x 105 mm with washer 543417
OEG no.: 806005295
Bolt anchor made of corrosion-resistant steel with preassembled washer for all standard fixings in cracked and uncracked concrete. Two anchorage depths provide for a flexible mounting. In case of an...
All product informationRelated products
Stainless steel
Fire resistance class R120
Suitable for concrete
Suitable for cracked concrete
Bolt anchor made of corrosion-resistant steel with preassembled washer for all standard fixings in cracked and uncracked concrete. Two anchorage depths provide for a flexible mounting. In case of an aborted drill hole, the anchor can be screwed out again so that the concrete surface remains even. The anchor can be reused if a new drill hole is created with a minimum distance of twice the depth, or in less distance if the aborted drill hole is filled with high-strength mortar.
For more information see Downloads
| OEG no. | 806005295 |
| Type: | Bolt anchor |
| Type: | FBZ R with large washer |
| Thread: | M10 |
| Thread length [mm]: | 63 |
| Dowel diameter [mm]: | 10 |
| Dowel length [mm]: | 105 |
| Bore hole diameter [mm]: | 10 |
| Bore hole depth min. [mm]: | 97 |
| Spanner width [mm]: | 17 |
| Mounting type: | Pre-positioned installation, Push-through installation |
| Material: | Non-corrosive steel |
| Manufacturer | Fischer |
| Manufacturer number | 543417 |
| EAN | 4048962305661 |
| Weight [kg] | 0.4 |
| Notes |
Stainless steel
Fire resistance class R120
Suitable for concrete
Suitable for cracked concrete
|
| Customs tariff number | 73181900 |
