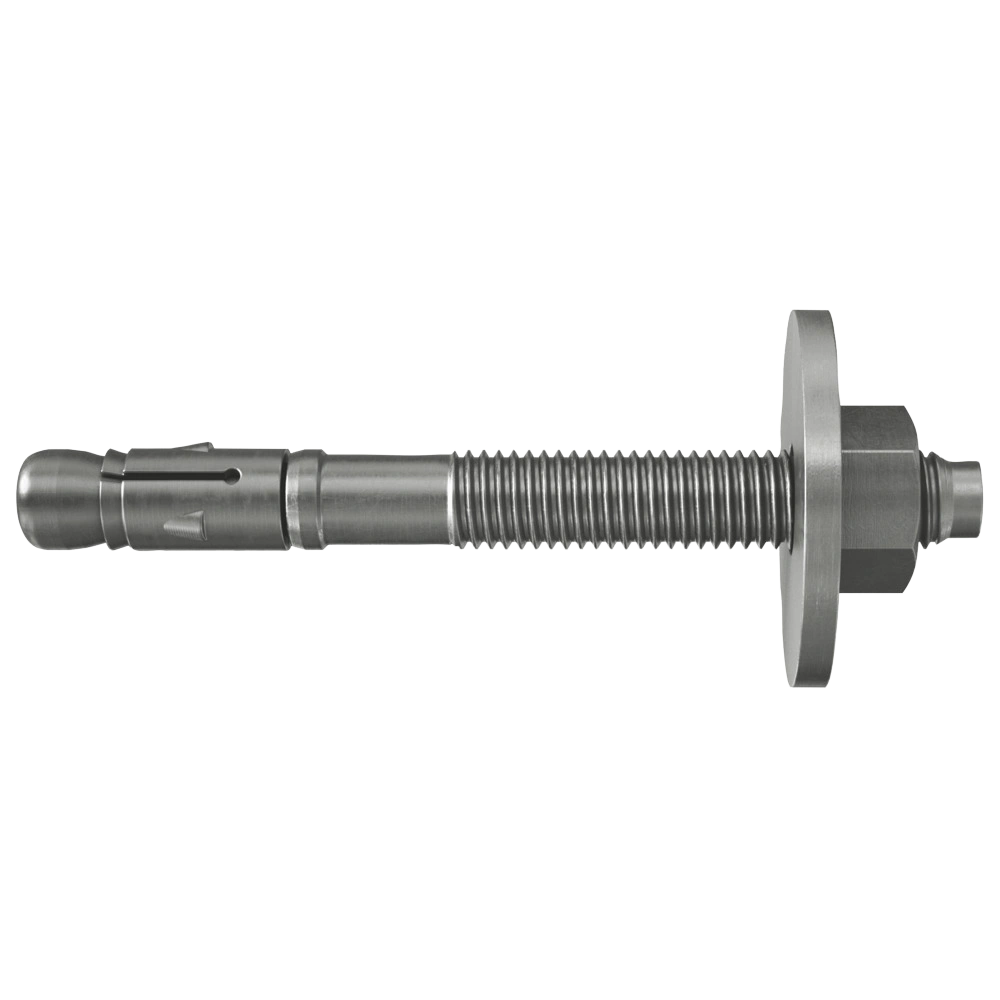

Bolt anchor made of corrosion-resistant steel with preassembled washer for all standard fixings in cracked and uncracked concrete. Two anchorage depths provide for a flexible mounting...
All product informationStainless steel
Fire resistance class R120
Suitable for concrete
Suitable for cracked concrete
Bolt anchor made of corrosion-resistant steel with preassembled washer for all standard fixings in cracked and uncracked concrete. Two anchorage depths provide for a flexible mounting. In case of an aborted drill hole, the anchor can be screwed out again so that the concrete surface remains even. The anchor can be reused if a new drill hole is created with a minimum distance of twice the depth, or in less distance if the aborted drill hole is filled with high-strength mortar.
For more information see Downloads
OEG no. | 806005293 |
Type: | Bolt anchor |
Type: | FBZ R with large washer |
Thread: | M8 |
Thread length [mm]: | 38 |
Dowel diameter [mm]: | 8 |
Dowel length [mm]: | 75 |
Bore hole diameter [mm]: | 8 |
Bore hole depth min. [mm]: | 70 |
Spanner width [mm]: | 13 |
Mounting type: | Pre-positioned installation, Push-through installation |
Material: | Non-corrosive steel |
Manufacturer | Fischer |
Manufacturer number | 543415 |
EAN | 4048962305647 |
Weight [kg] | 1.72 |
Notes |
Stainless steel Fire resistance class R120 Suitable for concrete Suitable for cracked concrete |
Customs tariff number | 73181900 |
