Bolt anchor S-Fix Plus M12 x 115 mm 04210131

OEG no.: 806001340
Zoom Bolt anchor S-Fix Plus M12 x 115 mm
OEG no. : 806001340

Proven bolt anchor for through installation in concrete in dry indoor areas. The galvanised bolt anchor has a long thread, a washer and a hexagonal nut...

All product information
Related products

Suitable for concrete

Suitable for concrete

Suitable for concrete
ETA-17/0830

ETA-17/0830

ETA-17/0830
Wipe 'n' Buy ®
Wipe 'n' Buy

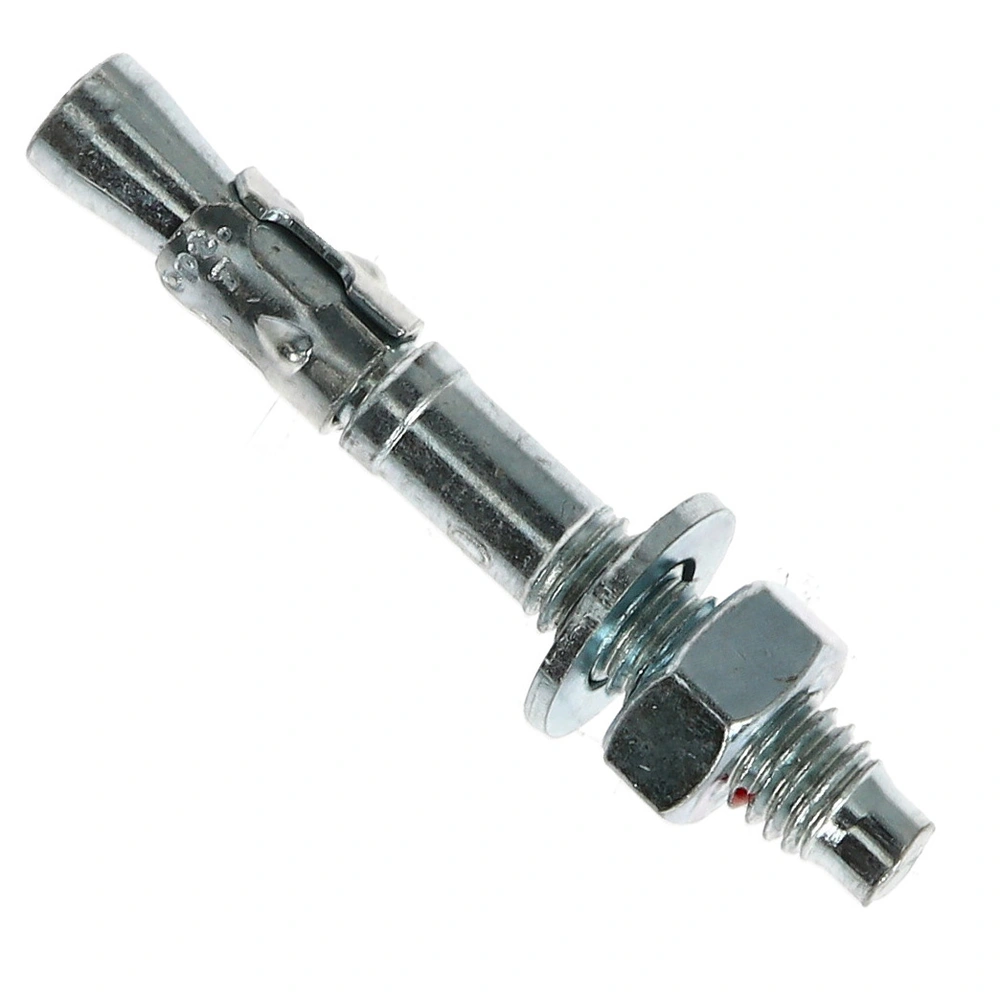

Proven bolt anchor for through installation in concrete in dry indoor areas. The galvanised bolt anchor has a long thread, a washer and a hexagonal nut. The slanted tip protects the thread when driving in. The type-approved anchor allows for the fastening of attachments with various thicknesses due to 2 setting depths, the setting depth marking providing for visual inspection of installation.


For more information see Downloads


OEG no. 806001340
PU 25 pieces
Type: Bolt anchor
Type: S-Fix Plus
Thread: M12
Dowel length [mm]: 110
Bore hole diameter [mm]: 12
Bore hole depth min. [mm]: 70
Setting depth min. [mm]: 50
Thickness of attachment part max. [mm]: 33
Torque [Nm]: 60
Mounting type: Push-through installation
Manufacturer Tox
Manufacturer number 04210131
EAN 4049563026047
Weight [kg] 0.5
Notes

Suitable for concrete

Suitable for concrete

Suitable for concrete
ETA-17/0830

ETA-17/0830

ETA-17/0830
Customs tariff number 73181542
