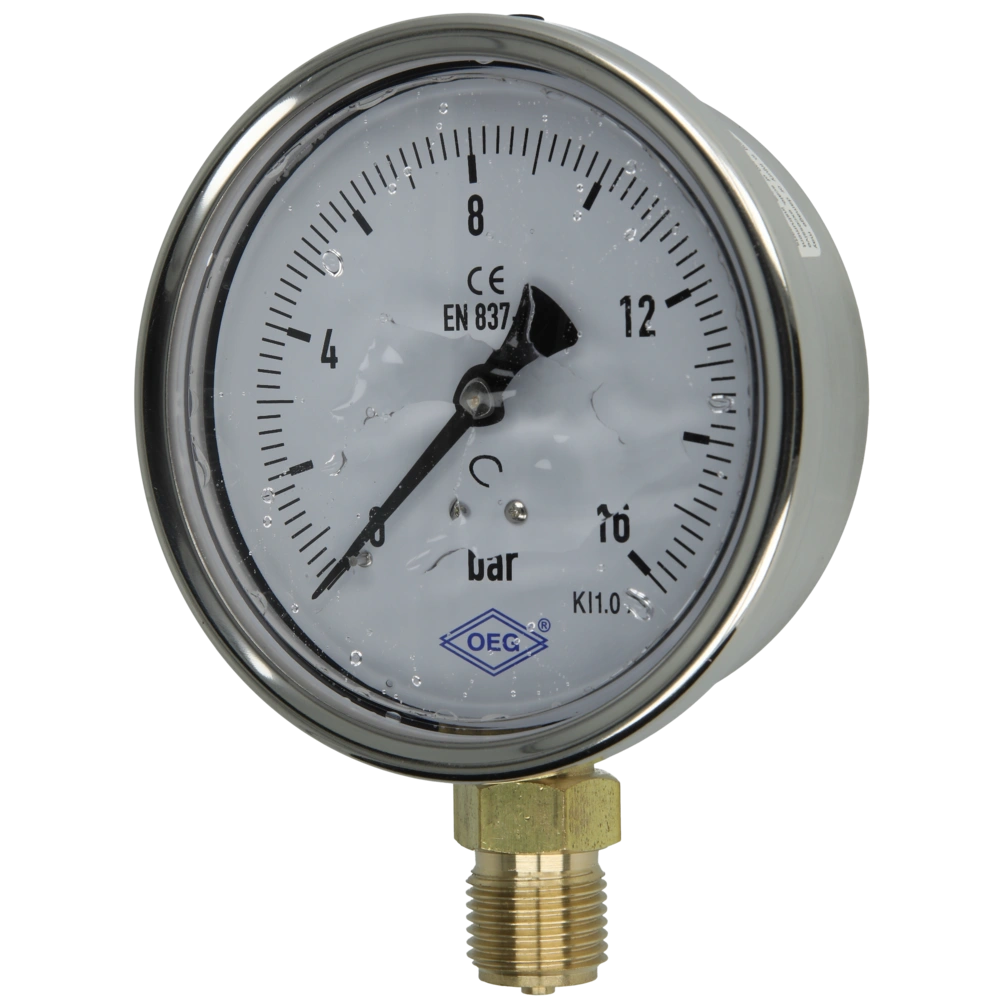

Bourdon tube pressure gauge 0 - 16 bar
OEG no.: 135486200
The bourdon-tube pressure gauge is suitable for gaseous and liquid, not highly viscous and not crystallising media that do not corrode copper alloy.
All product informationRelated products
CE
The bourdon-tube pressure gauge is suitable for gaseous and liquid, not highly viscous and not crystallising media that do not corrode copper alloy.
| OEG no. | 135486200 |
| Measuring range: | 0 - 16 bar |
| Operating temperature [°C]: | 60 |
| Type: | Bourdon-tube gauge |
| Diameter [mm]: | 100 |
| Connection: | R 1/2" |
| Type of connection: | Radially downwards |
| Housing: | Stainless steel |
| EAN | 4055668020965 |
| Also replaces |
|
| Weight [kg] | 0.6 |
| Notes |
CE
|
| Customs tariff number | 90262040 (CN) |
Question
bis zu welchem Temperaturbereich sind die Thermometer zugelassen ? (Mediumtemperatur)
Answer OEG:
Die maximale Betriebstemperatur liegt bei 60°C.
