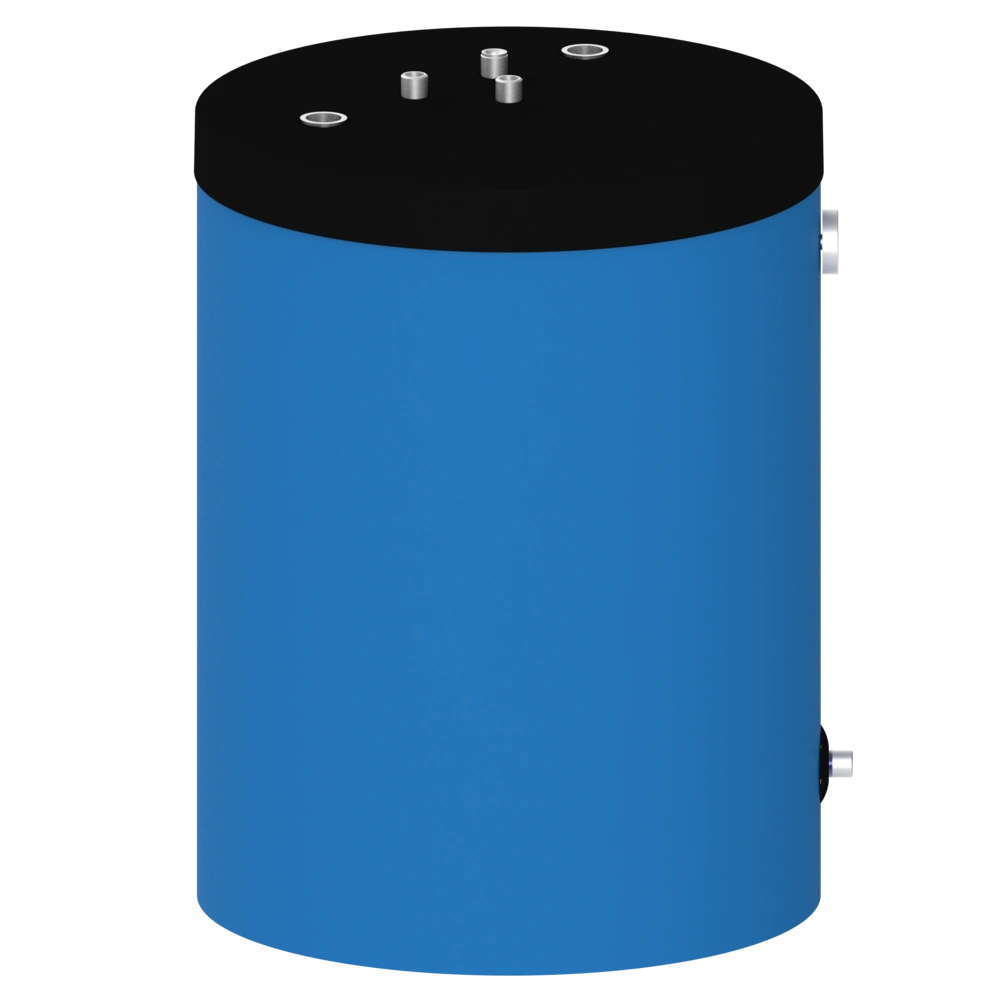

Built-under Fresh-Water Storage Tank 120 litres vertical with upward connections
OEG no.: 516005745
Premium built-under fresh-water storage tanks for the highest demands on drinking water hygiene and efficiency.
The built-in corrugated stainless steel pipe separates the drinking water from the...
All product information
Delivery by forwarding agency
High Quality
Clean fresh water generation in corrugated stainless steel pipe with flow heater principle
10-year warranty
Premium built-under fresh-water storage tanks for the highest demands on drinking water hygiene and efficiency.

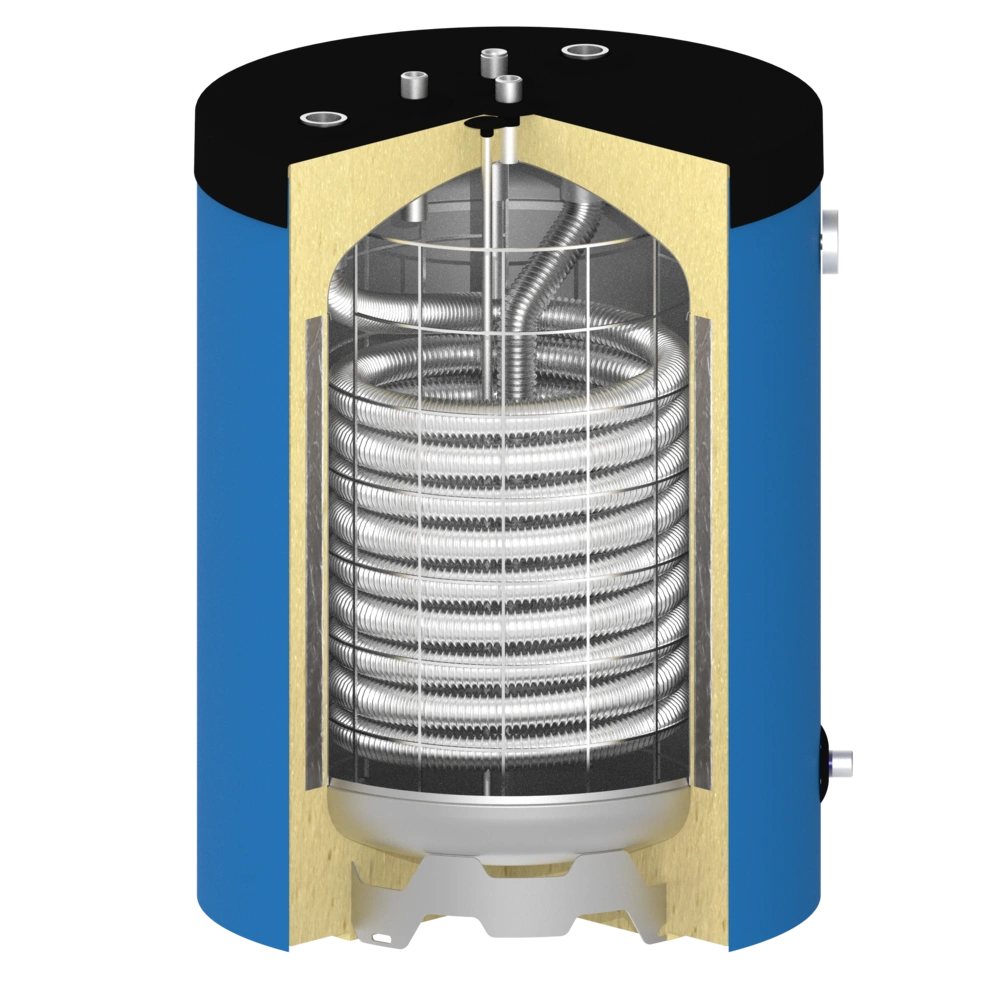

The built-in corrugated stainless steel pipe separates the drinking water from the heating water and also serves as a high-performance heat exchanger. This combines the advantages of a buffer storage tank with those of an instantaneous water heater.
The drinking water only passes through the corrugated stainless steel pipe in the water of the heated cylinder when required. This guarantees very low energy consumption and legionella-safe drinking water. You do not need a legionella protection programme in the control unit. At all times, the consumer is provided with hygienically perfect, fresh water at the desired temperature.
The storage tank is designed with connections towards the top, and its compact design makes it particularly suitable for DHW heating as a built-under fresh-water storage tank with wall-mounted heaters. The dimensions have been selected so that it is replacement-compatible with the built-under storage tanks of many renowned manufacturers. The storage tank can also demonstrate its strengths in new installations in conjunction with wall-mounted heaters.
The vertical, compact design even allows the use in places that must be ruled out for other cylinders (e.g. below sloping ceilings and stairs). This allows the benefits of a fresh-water storage tank to be utilised even where space is limited.
The generously dimensioned heat exchanger surfaces provide an enormous energy advantage over other products available on the market.
For more information see Downloads
| OEG no. | 516005745 |
| Tank capacity [litres]: | 120 |
| Installation type: | Built-under storage tank vertical |
| Manufacturer | OEG |
| Brand | Pure+ |
| EAN | 4055668003869 |
| Energy efficiency class | A+ |
| ErP-Label |
|
| Notes |
Delivery by forwarding agency
High Quality
Clean fresh water generation in corrugated stainless steel pipe with flow heater principle
10-year warranty
|
| Customs tariff number | 84191900 |
General
| Colour: | blue |
| Insulation according to DIN 4102-1 Fire Protection Class B2: | solid foamed insulation |
| Weight [kg]: | 45 |
| Total height including insulation [mm]: | 830 |
| Diameter with insulation [mm]: | 610 |
| Tilt height [mm]: | 950 |
| Energy efficiency class according to EU regulation no. 812/2013: | A+ |
| Heat retaining loss according to EN 12897 [W]: | 26 |
| Heat losses in stand-by mode according to DIN 12897 [kW/h / 24 h]: | 0,624 |
| Output capacity (45°C) [l]: | 68 |
| Performance indicator NL following DIN 4708: | 0,80 |
| Real volume according to EN 12897 [l]: | 120 |
| pmax Tank [bar]: | 3 |
| tmax Tank [°C]: | 95 |
| tmin Tank [°C]: | 20 |
| DHW heat exchanger area [m²]: | 2,50 |
| DHW heat exchanger volume [l]: | 11 |
| pmax DHW heat exchanger [bar]: | 6 |
| tmax DHW heat exchanger [°C]: | 95 |
| Connection layout: | connections at the top |
| Connection sensor [Ø mm / terminal]: | 6 mm |
| Connection cold / hot water: | Rp 1 1/4" |
| Connection heat generator [thread]: | R 3/4" |
Question
(Tank capacity [litres]: 80 | Colour: Silver)
goedendag, ik heb een vraag ik heb de boiler ontvangen en heb niet gerealiseerd dat het hier een doorstroomtoestel betreft. nu is het plan de boiler indirect op te warmen met een 5kw warmtepomp nu vraag ik mij af hoeveel warmwater geeft dit toestel dan en hoeveel L/min van 55graden? Of is het te vergelijken met een normale boiler van 80L? graag even advies? alvast bedankt.
Answer OEG:
De opslagtank heeft een vulcapaciteit van 45 °C (opslagtank 65 °C, koud water 10 °C, geen heropwarming) van 50 liter.
Ter vergelijking: de Built-under hot-water storage tank 80 l with connections on top heeft een vulcapaciteit 45 °C van 125 liter.
Question
(Tank capacity [litres]: 80 | Colour: Silver)
In den nebenstehenden Datenblättern ist einmal ein Gewicht mit 80 kg und darunter mit 35 kg angegeben. Was stimmt denn nun davon?
Answer OEG:
Der Speicher hat ein Gewicht von 35 kg, die Angaben mit den 80 kg wurden dementsprechend abgeändert.
Vielen Dank für den Hinweis.
Question
(Tank capacity [litres]: 80 | Colour: Silver)
goedemiddag is deze boiler ook geschikt voor de warmtepomp? de hoogte welke beschikbaar is 170 cm [kelder] met vriendelijke groet P van der Haak
Answer OEG:
Helaas is deze boiler niet geschikt voor een warmtepomp, omdat deze vrij hoge temperaturen vereist en slechts een zeer lage tapcapaciteit heeft.
Question
(Tank capacity [litres]: 80 | Colour: Silver)
kan er op de vers water boiler een electrische weerstand peplaast worden?
Answer OEG:
Hiervoor is geen aansluiting aanwezig. eventueel kan een speciale boiler op maat gemaakt worden.
Question
(Tank capacity [litres]: 80 | Colour: Silver)
sind diese Speicher bereits bestellbar?
Answer OEG:
Ja, die Speicher sind jederzeit bestellbar, rechnen Sie bitte mit einer Lieferzeit von ca.2-3
Tagen. Sollte die Speicher nicht am Lager sein, sollten Sie mit ca. 10 Tagen Lieferzeit rechnen.
