Dimmer

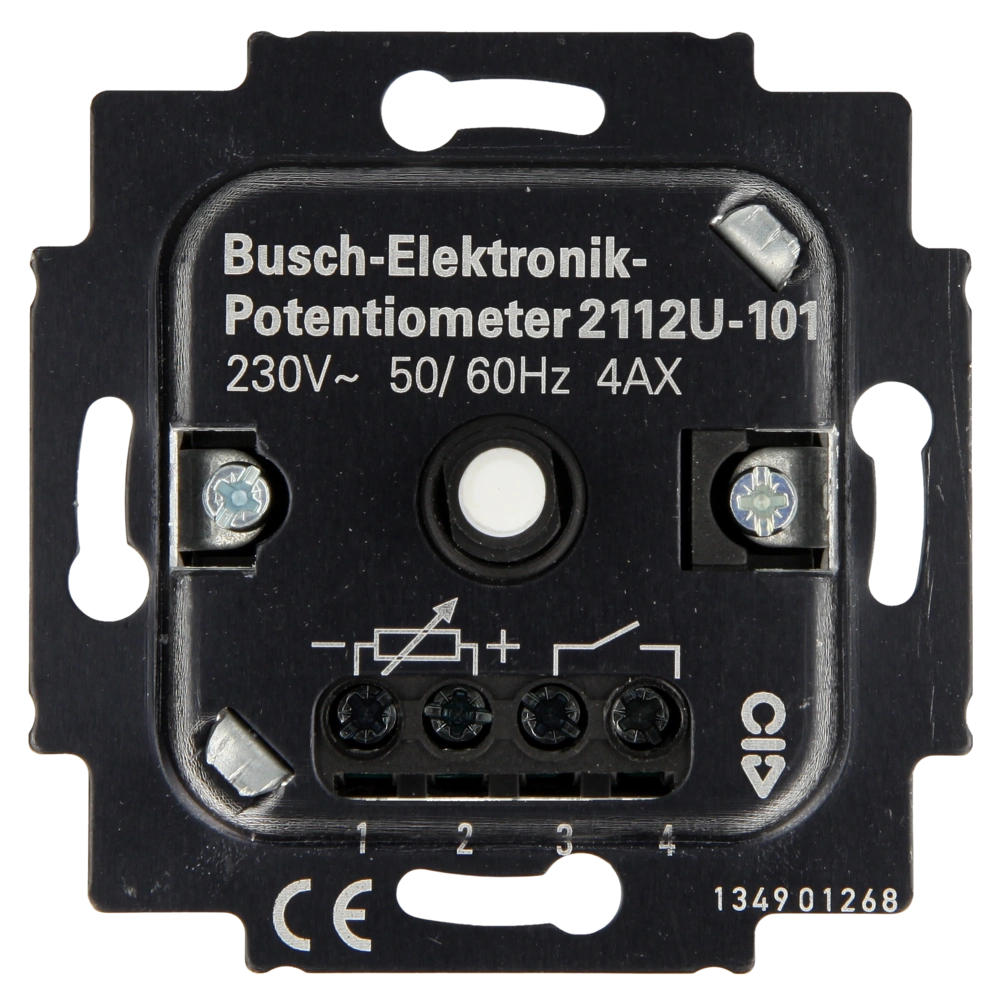

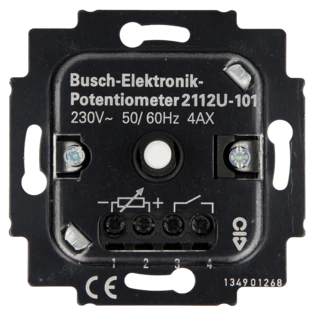

The rotary dimmer is equipped with a rotary control and a rotary off-switch and is suitable for controlling electronic ballast units for fluorescent lamps with control output 1-10 C DC, control current max. 50 mA DC and for LED control via control gears. The insert is not illuminable and will be delivered without cover plate. Making current limiters have to be provided in case of too high making currents.
Technical data:
Rated voltage: 230 V~, + 10 % / - 10 %
Rated frequency: 50/60 Hz
Nominal power: 700 W/VA
Use cover plates 2115 J-xxx (OEG no. 717001574 /2115-xxx (OEG no. 717000826, 717000827, 717002602) or 6540-xxx (OEG no. 717001629).
| OEG no. | 717001575 |
| Model: | Rotary dimmer 700 W |
| Application: | LED 1 - 10 V |
| Manufacturer | Busch-Jaeger |
| Manufacturer number | 2112 U-101 |
| EAN | 4011395463802 |
| Weight [kg] | 0.08 |
| Notes |
Dimmer
|
| Customs tariff number | 85365080 |
