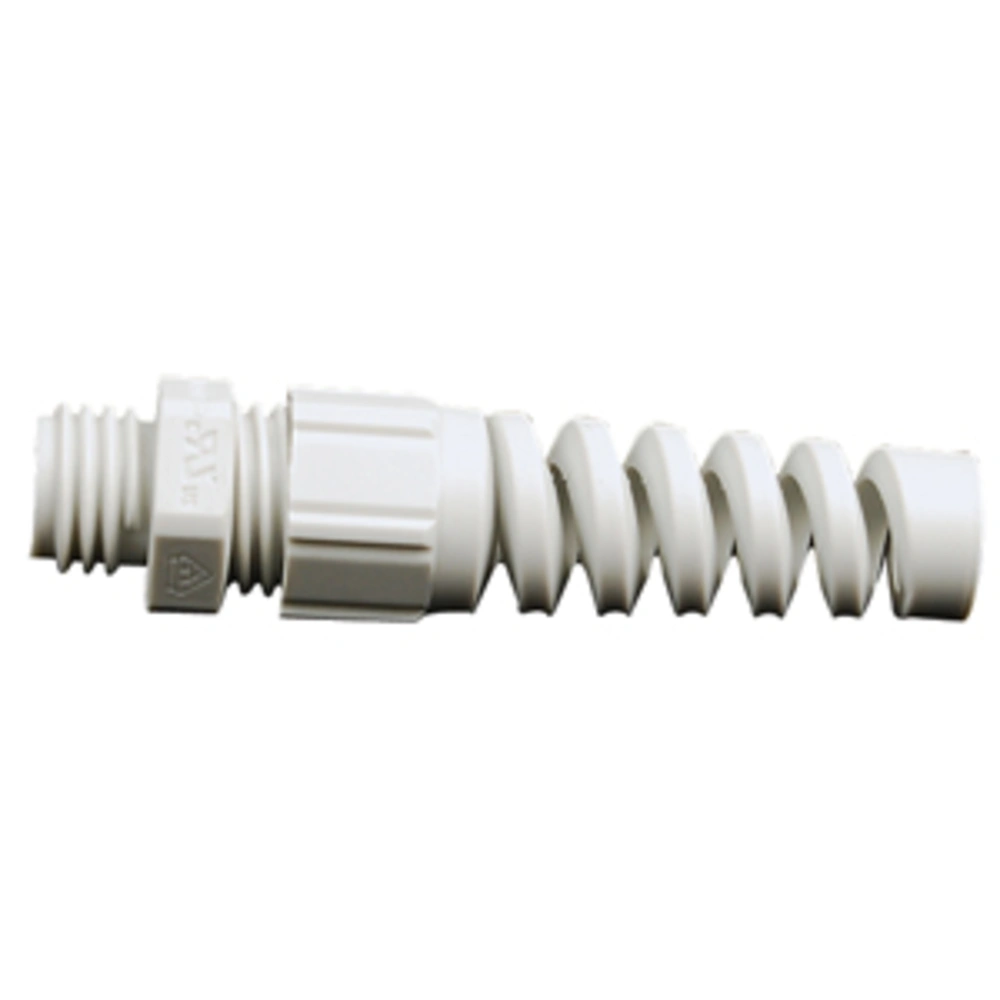

Cable gland with bending protection to connect a cable to electrical appliances and machinery that are moved during normal use. The line attached in accordance with VDE 0730 protects the connection and cable against excessive bending.
All product information Scope of deliveryRelated products
CE
PU
Cable gland with bending protection to connect a cable to electrical appliances and machinery that are moved during normal use. The line attached in accordance with VDE 0730 protects the connection and cable against excessive bending.
| Scope of delivery: | |||
| 1 x | dismantling tool | ||
| 1 x | Cable gland | ||
For more information see Downloads
| OEG no. | 705000076 |
| PU | 25 pieces |
| Colour: |
 Light grey
|
| Clamping range [mm]: | 7 .. 13 |
| Length [mm]: | 108 |
| Connection thread: | M20 |
| Type: | SKINTOP® Click BS 20 |
| Pressure max. [bar]: | 5 |
| Temperature range [°C]: | -20 .. 100 |
| Thread length [mm]: | 8 |
| Property: | UV-resistant |
| Protection type [IP]: |
 IP68
|
| Manufacturer | Lapp |
| Manufacturer number | 53112889 |
| Weight [kg] | 0.3 |
| Notes |
CE
PU
|
| Customs tariff number | 39269097 |
