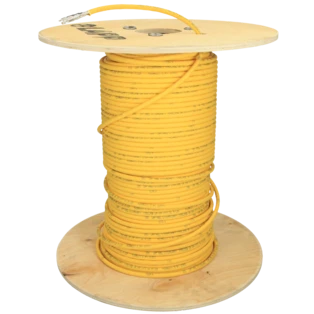

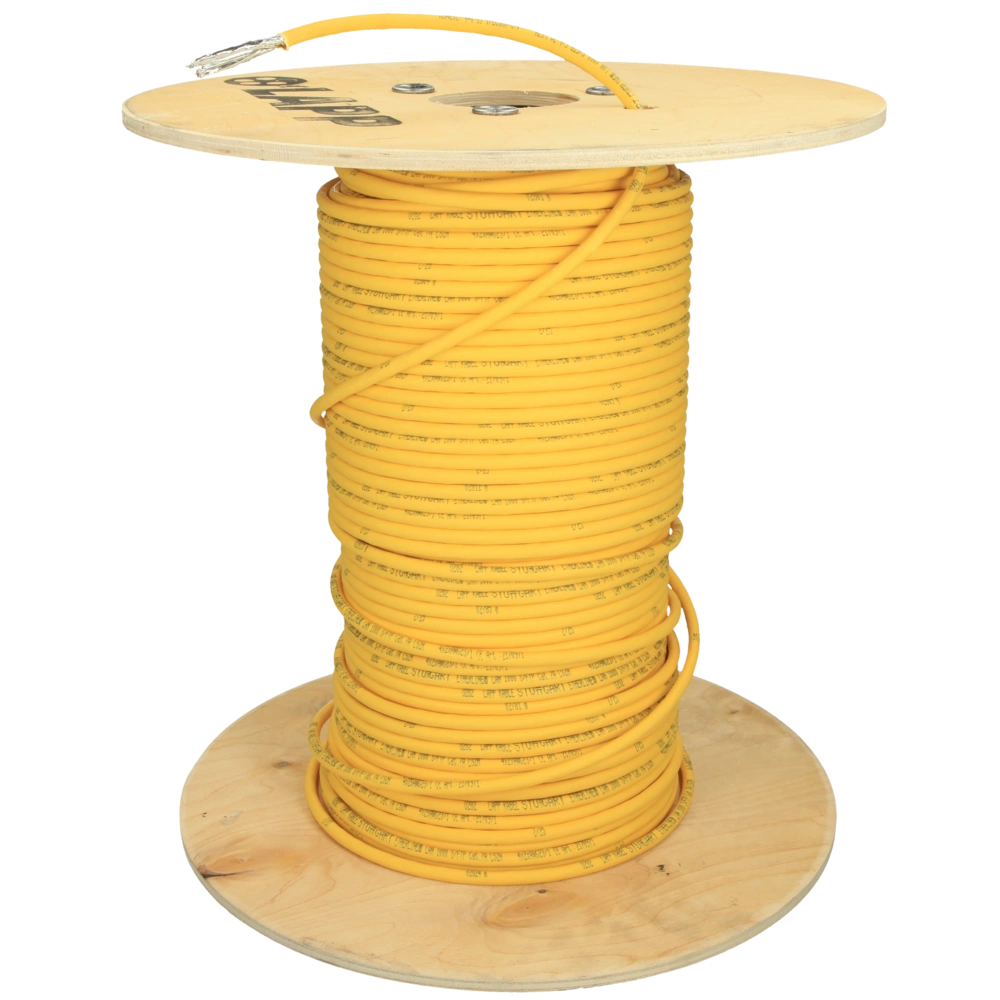

High-speed data cable for wiring IT installations or signalling systems. The cable is designed for use in LAN networks and Ethernet applications.
The foil shielding protects the cable from electromagnetic...
Halogen-free
Delivery by forwarding agency
High-speed data cable for wiring IT installations or signalling systems. The cable is designed for use in LAN networks and Ethernet applications.
The foil shielding protects the cable from electromagnetic interference and allows it to be used in industrial environments.
This data cable is used in areas with a very high density of terminal devices and for the wiring of office, administrative, and development buildings with multiple storeys.
The cable length should not exceed 100 metres in accordance with ISO/IEC 11801 and EN 50173 standards (90 metres in cable ducts + 10 metres for workstation cabling).
For more information see Downloads
| OEG no. | 701001656 |
| PU | 500 metres |
| Bending radius [mm]: | 32.8 .. 65.6 |
| Copper content: | 34 kg/km |
| Temperature resistance [°C]: | -20 .. 60 |
| Outer diameter [mm]: | 8.2 |
| Wire cross-section [mm²]: | 0.34 |
| Cable shielding: | S/FTP |
| Frequency [MHz]: | 1,600 |
| Number of cores: | 4 x 2 |
| Cable length max. [m]: | 100 |
| Model: | ETHERLINE® |
| Manufacturer | Lapp |
| Manufacturer number | 2170976 |
| Weight [kg] | 36 |
| Notes |
Halogen-free
Delivery by forwarding agency
|
| Customs tariff number | 85444995 |
