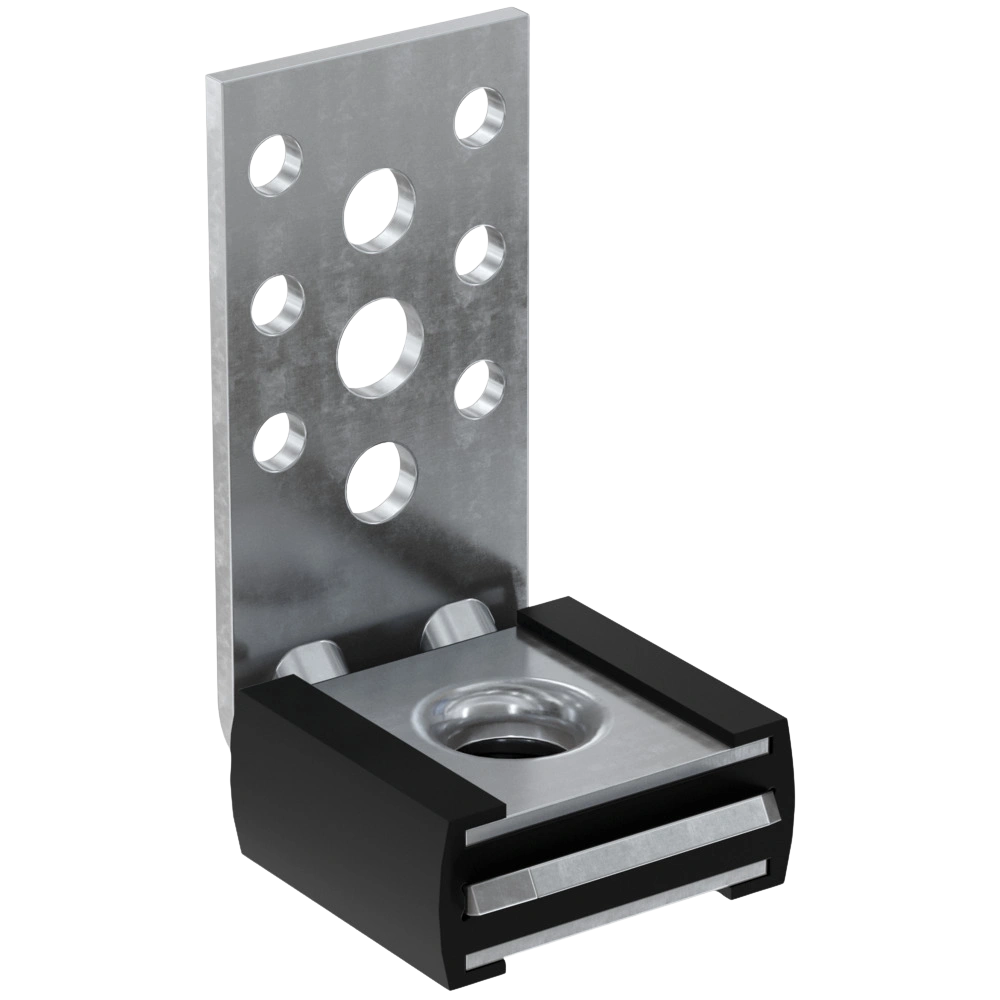

Ceiling hanger für ventilation ducts with threaded rods 516537
OEG no.: 806005751
Ceiling hanger with sound insulation element for suspension of ventilation ducts with threaded rod. The multiple holes allow for an easy fastening with self-drilling screws or rivets. Thanks to the...
All product informationRelated products
Ceiling hanger with sound insulation element for suspension of ventilation ducts with threaded rod. The multiple holes allow for an easy fastening with self-drilling screws or rivets. Thanks to the through-hole in the ceiling hanger, a simple alignment and height adjustment of the threaded rod is possible.
| OEG no. | 806005751 |
| PU | 50 pieces |
| Proven applications: | Ventilation ducts |
| Type: | Duct hanger |
| Connection thread: | M8, M10 |
| Material: | Steel |
| Surface: | Zinc-galvanised |
| Shore hardness [A]: | 45 |
| Temperature range [°C]: | -50 .. 110 |
| Fire protection class: | B2 according to DIN 4102 |
| Type: | KHN L |
| Design: | For threaded rods |
| Manufacturer | Fischer |
| Manufacturer number | 516537 |
| EAN | 4048962138702 |
| Weight [kg] | 3.94 |
| Customs tariff number | 73269098 |
