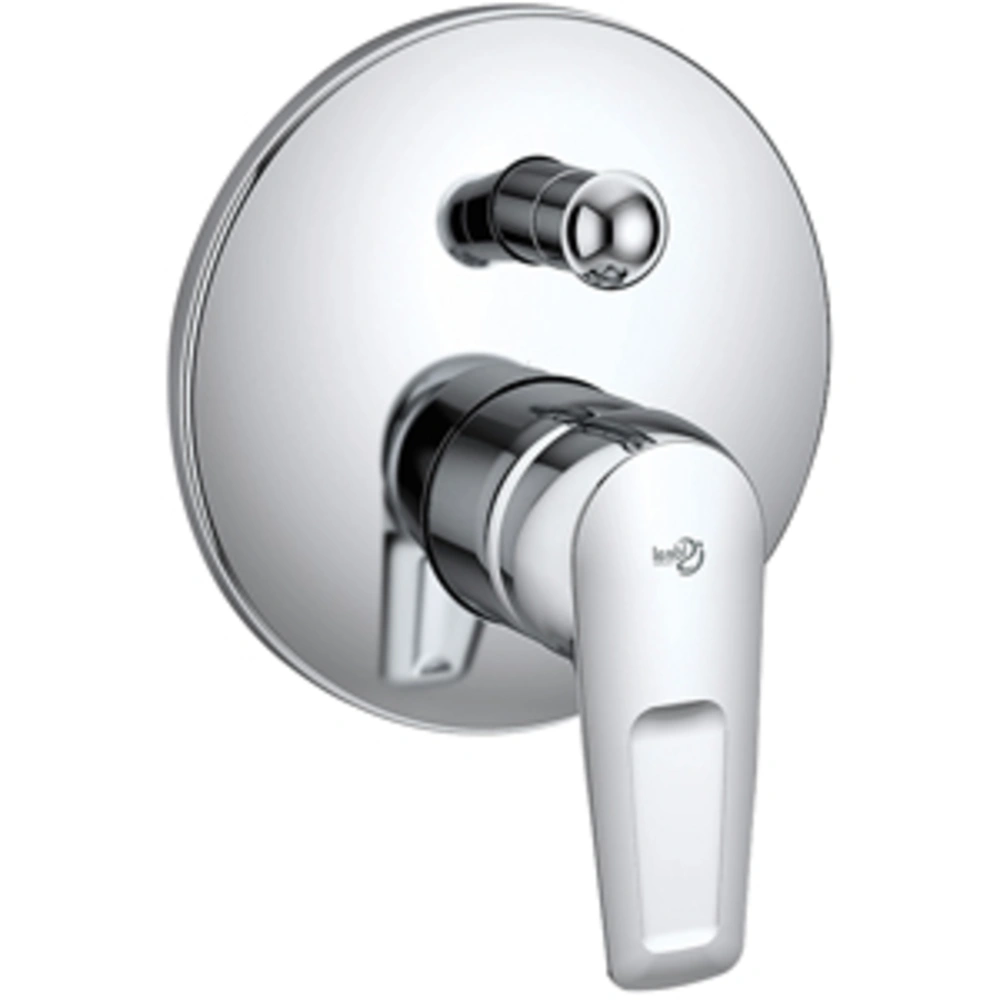

ceramic Blue concealed bath mixer A5665AA
OEG no.: 800006155
Single-lever bath mixer for concealed installation. The insulated IdealPure® waterways are nickel- and lead-free and reduce water and energy consumption. The mixer is also equipped with an integrated...
All product information Scope of deliveryRelated products
Single-lever bath mixer for concealed installation. The insulated IdealPure® waterways are nickel- and lead-free and reduce water and energy consumption. The mixer is also equipped with an integrated hot water temperature limiter and ECO function. Automatic diversion from shower to bath.
| Scope of delivery: | |||
| 1 x | single-lever bath mixer | ||
| 1 x | metal escutcheon chrome-plated ø 163 mm | ||

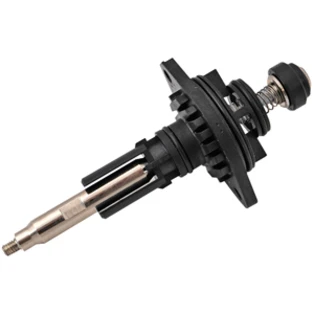

| 1 x | CLICK cartridge ø 47 mm with ceramic sealing discs | ||
| 1 x | DICHT-FIX sealing | ||
For more information see Downloads
| OEG no. | 800006155 |
| Application : | Bathtub |
| Fitting operation: | Single-lever mixer tap |
| Tap fitting installation: | Concealed |
| Projection [mm]: | 66 - 84 |
| Diameter [mm]: | 163 |
| Flow rate [l/min]: | 26 |
| Operating pressure [bar]: | 3 |
| Connection size [inch]: | 1/2 |
| Cartridge: | Ø 47 mm CLICK cartridge |
| Design line: | CeraMix Blue |
| Application: | Cold and hot water |
| Type of connection: | High pressure |
| Mixer colour: | Chrome |
| Manufacturer | Ideal-Standard |
| Manufacturer number | A5665AA |
| Weight [kg] | 0.16 |
| Customs tariff number | 84818011 |
