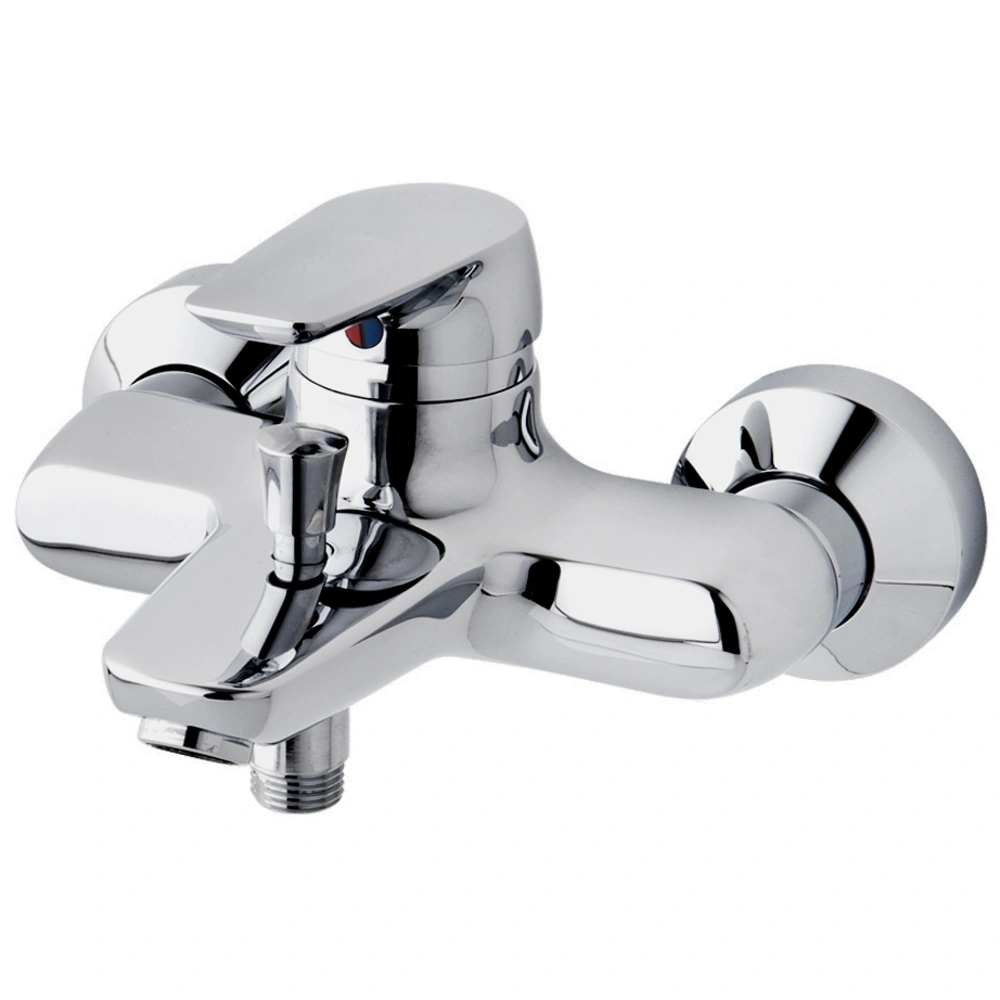

CeraMix Blue exposed bath mixer B9490AA
OEG no.: 800006153
Single-lever bath mixer for exposed installation. The insulated IdealPure® waterways are nickel- and lead-free and reduce water and energy consumption. The mixer is also equipped with an integrated...
All product information Scope of deliveryRelated products
certified by DVGW

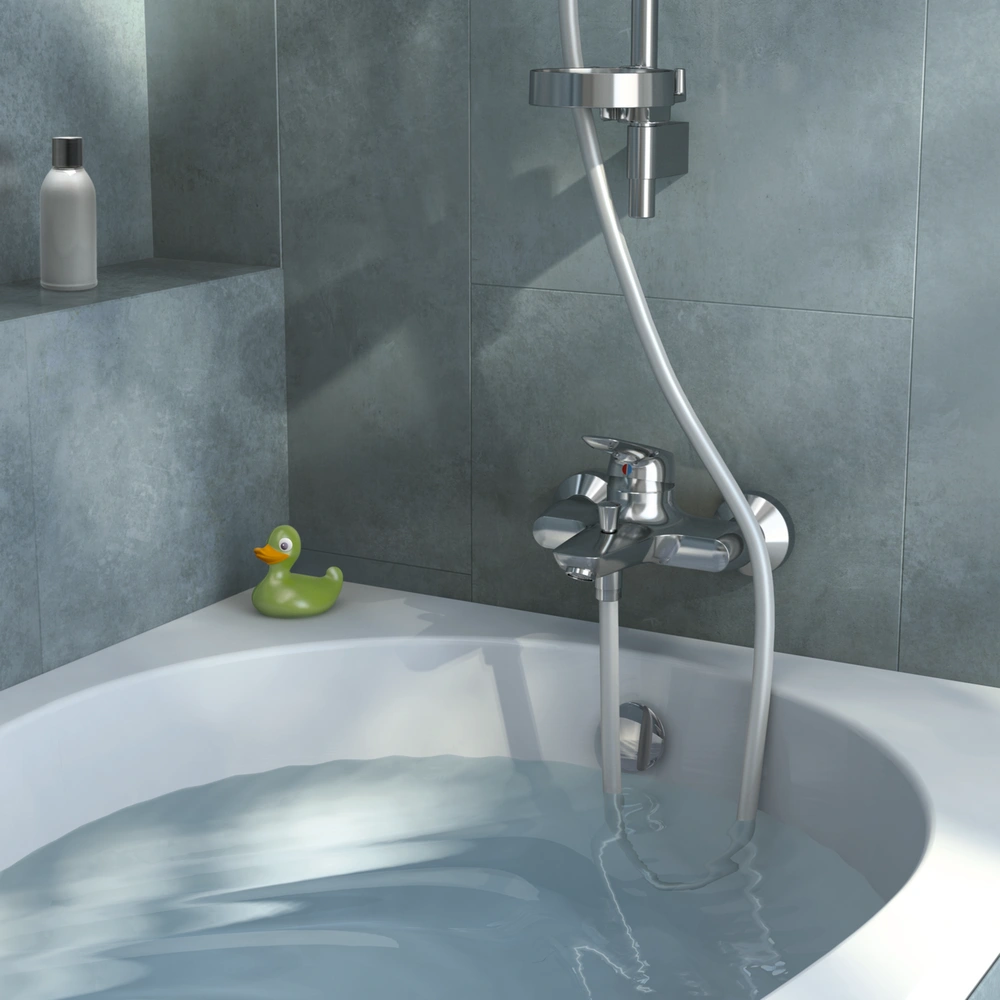

Single-lever bath mixer for exposed installation. The insulated IdealPure® waterways are nickel- and lead-free and reduce water and energy consumption. The mixer is also equipped with an integrated hot water temperature limiter and ECO function. Automatic diversion from shower to bath.
| Scope of delivery: | |||
| 1 x | single-lever bath mixer | ||
| 2 x | covered S-unions adjustable 137 - 167 mm | ||
| 2 x | Plastic rosette with wall sealing | ||
| 1 x | CLICK cartridge ø 47 mm with ceramic sealing discs | ||
For more information see Downloads
| OEG no. | 800006153 |
| Application : | Bathtub |
| Fitting operation: | Single-lever mixer tap |
| Tap fitting installation: | 2-hole installation |
| Height of tap [mm]: | 122 |
| Width of mixer tap [mm]: | 220 |
| Waste set: | Without |
| Projection [mm]: | 173 |
| Flow rate [l/min]: | 21 |
| Operating pressure [bar]: | 3 |
| Spout height [mm]: | 39 |
| Connection size supply hose: | 1/2" IT |
| Installation opening [mm]: | 13.5 |
| Inside micrometer [mm]: | 150 ± 13 |
| Cartridge: | Ø 47 mm CLICK cartridge |
| Design line: | CeraMix Blue |
| Application: | Cold and hot water |
| Type of connection: | High pressure |
| Mixer colour: | Chrome |
| Manufacturer | Ideal-Standard |
| Manufacturer number | B9490AA |
| EAN | 3800861022114 |
| Weight [kg] | 0.58 |
| Notes |
certified by DVGW
|
| Customs tariff number | 84818011 |
