Circuit breakers C characteristic with neutral conductor

Circuit breakers with a C characteristic are suitable for loads with a high inrush current, such as machines and lamp groups. With their time-delayed thermal releases as overload protection and an electromagnetic release as short-circuit protection, they comply with the specifications of DIN EN 60898-1. Miniature circuit-breakers cause all poles of circuits to be switched off as soon as the permissible residual current is exceeded. They are suitable for retrofitting and can be easily removed from the busbar assembly by unlocking the top-hat rail quick-release fastening. Labelling fields allow for clear identification of the connected loads.

Ratings and tips
(24)
Summary of item questions (3)

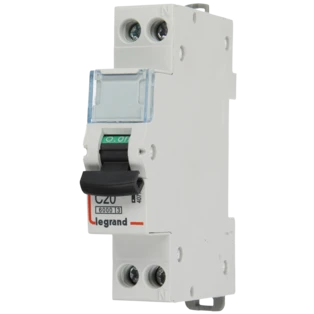

  • Lexic DX3
      Rated current [A] Switching capacity [A] Voltage [V] Horizontal pitches [HP] Number of poles Quantity Price Show all details
    Miniature circuit breaker 2 A C-characteristic +N 2 6,000 230 ~ 1 1

    Miniature circuit breaker 10 A C-characteristic +N 10 6,000 230 ~ 1 1

    Miniature circuit breaker 16A C-characteristic +N 16 6,000 230 ~ 1 1

    Miniature circuit breaker 20 A C-characteristic +N 20 6,000 230 ~ 1 1

    Miniature circuit breaker 25 A C-characteristic +N 25 6,000 230 ~ 1 1

    Miniature circuit breaker 32A C-characteristic +N 32 6,000 230 ~ 1 1

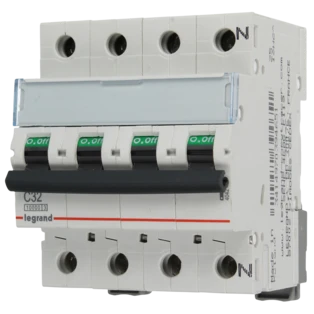

    Miniature circuit breaker 32A C-characteristic +N 32 10,000 400 ~ 4 3

    Miniature circuit breaker 40A C-characteristic +N 40 6,000 230 ~ 1 1

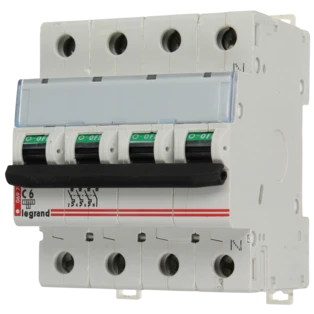

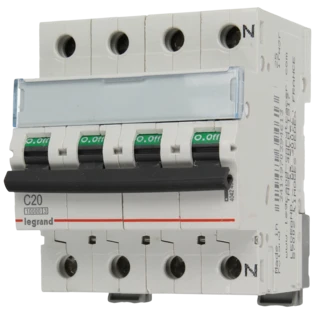

  • MCB TX3
      Rated current [A] Switching capacity [A] Voltage [V] Horizontal pitches [HP] Number of poles Quantity Price Show all details

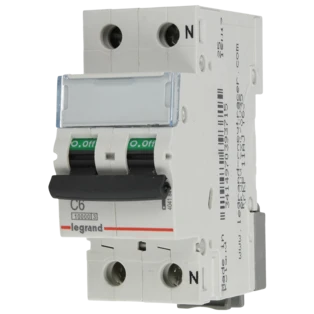

    Miniature circuit breaker 6A C-characteristic +N 6 10,000 230 ~ 2 1

    Miniature circuit breaker 6A C-characteristic +N 6 10,000 400 ~ 4 3

    Miniature circuit breaker 10A C-characteristic +N 10 10,000 230 ~ 2 1

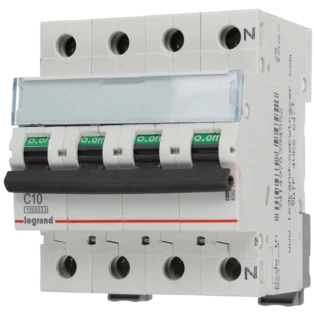

    Miniature circuit breaker 10A C-characteristic +N 10 10,000 400 ~ 4 3

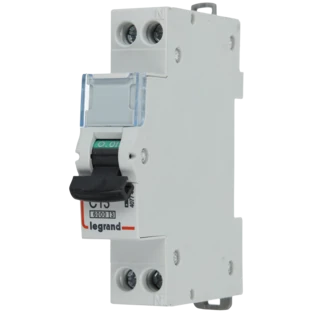

    Miniature circuit breaker 13A C-characteristic +N 13 6,000 230 ~ 1 1

    Miniature circuit breaker 13A C-characteristic +N 13 10,000 230 ~ 2 1

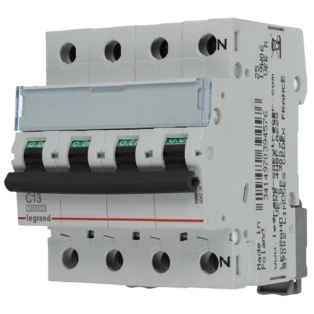

    Miniature circuit breaker 13A C-characteristic +N 13 10,000 400 ~ 4 3

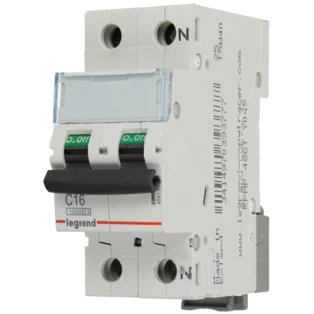

    Miniature circuit breaker 16A C-characteristic +N 16 10,000 230 ~ 2 1

    Miniature circuit breaker 16A C-characteristic +N 16 10,000 400 ~ 4 3

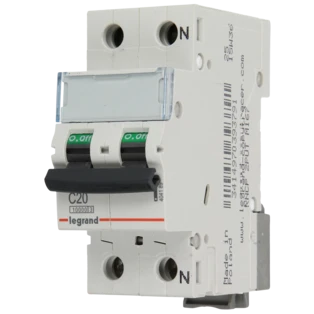

    Miniature circuit breaker 20A C-characteristic +N 20 10,000 230 ~ 2 1

    Miniature circuit breaker 20A C-characteristic +N 20 10,000 400 ~ 4 3

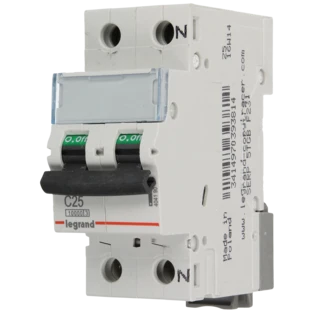

    Miniature circuit breaker 25A C-characteristic +N 25 10,000 230 ~ 2 1

    Miniature circuit breaker 25A C-characteristic +N 25 10,000 400 ~ 4 3

    Miniature circuit breaker 32A C-characteristic +N 32 10,000 230 ~ 2 1

    Miniature circuit breaker 40A C-characteristic +N 40 10,000 230 ~ 2 1

    Miniature circuit breaker 40A C-characteristic +N 40 10,000 400 ~ 4 3
