Malleable cast-iron compression fitting for easy installation and repair of steel pipes. The compression fitting is force-fitting, both resistant to tensile and shearing strength and can also be used as equipotential bonding...
All product informationRelated products
certified by DVGW
Suitable for drinking water installations

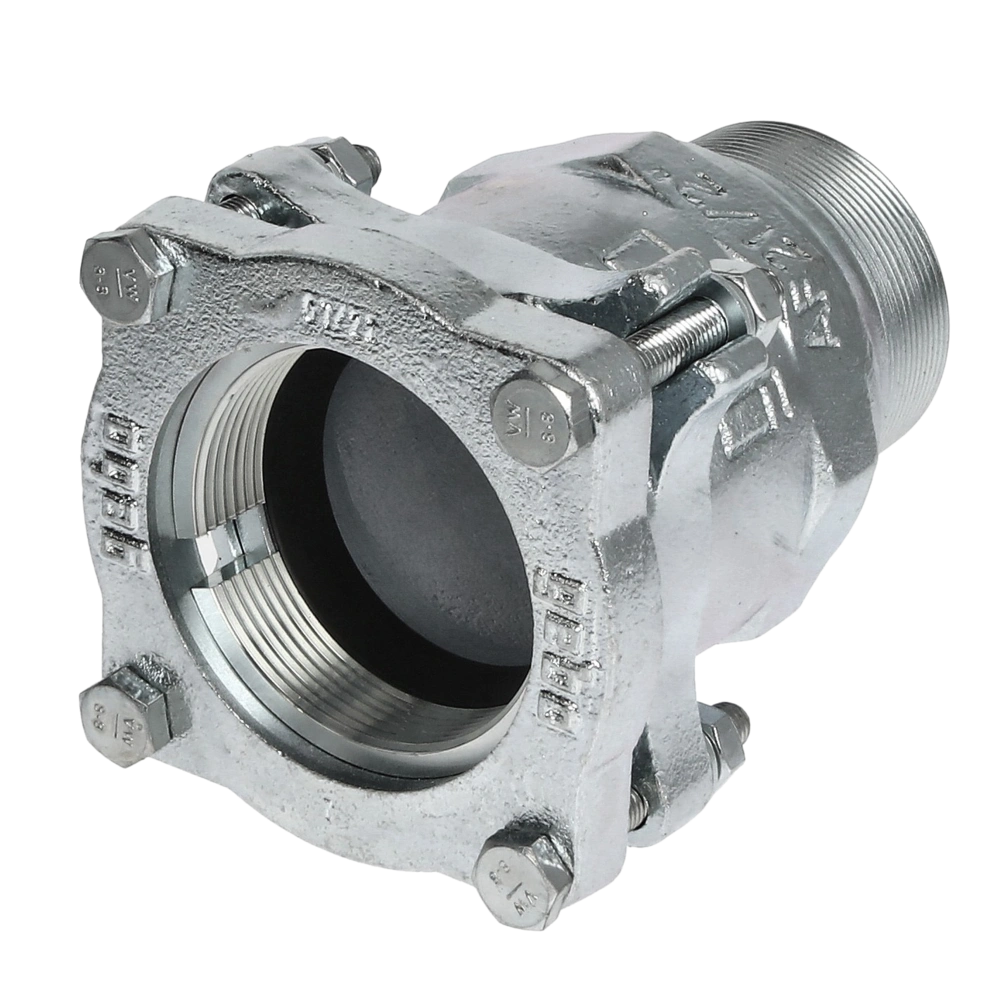

Malleable cast-iron compression fitting for easy installation and repair of steel pipes. The compression fitting is force-fitting, both resistant to tensile and shearing strength and can also be used as equipotential bonding.
For more information see Downloads
| OEG no. | 802011013 |
| Model: | Straight male adaptor |
| Type of connection: | Flange | Thread |
| Suitable for pipe diameter [mm]: | 76.1 |
| Suitable for pipe diameter [inch]: | 2 1/2 |
| Thread: | 2 1/2" ET |
| Series: | 220 |
| Material: | Malleable cast-iron |
| Suitable for: | Steel pipe |
| Type: | Compression fitting |
| DIN: | EN 10255 |
| Seal: | EPDM |
| Operating temperature max. [°C]: | 90 |
| DVGW certified up to temperature [°C]: | 25 |
| Manufacturer | Gebo |
| EAN | 4019576001744 |
| Weight [kg] | 3.18 |
| Notes |
certified by DVGW
Suitable for drinking water installations
|
| Customs tariff number | 73071910 (PL) |
je recherche 2 raccords de ce type ou similaire,mais en 2 1/4
demande en cours
Quelle différence entre TYPE IF et AF SVP Merci
Bonjour,
IF = filetage femelle
AF = filetage mâle
Cordialement,
Votre équipe OEG
