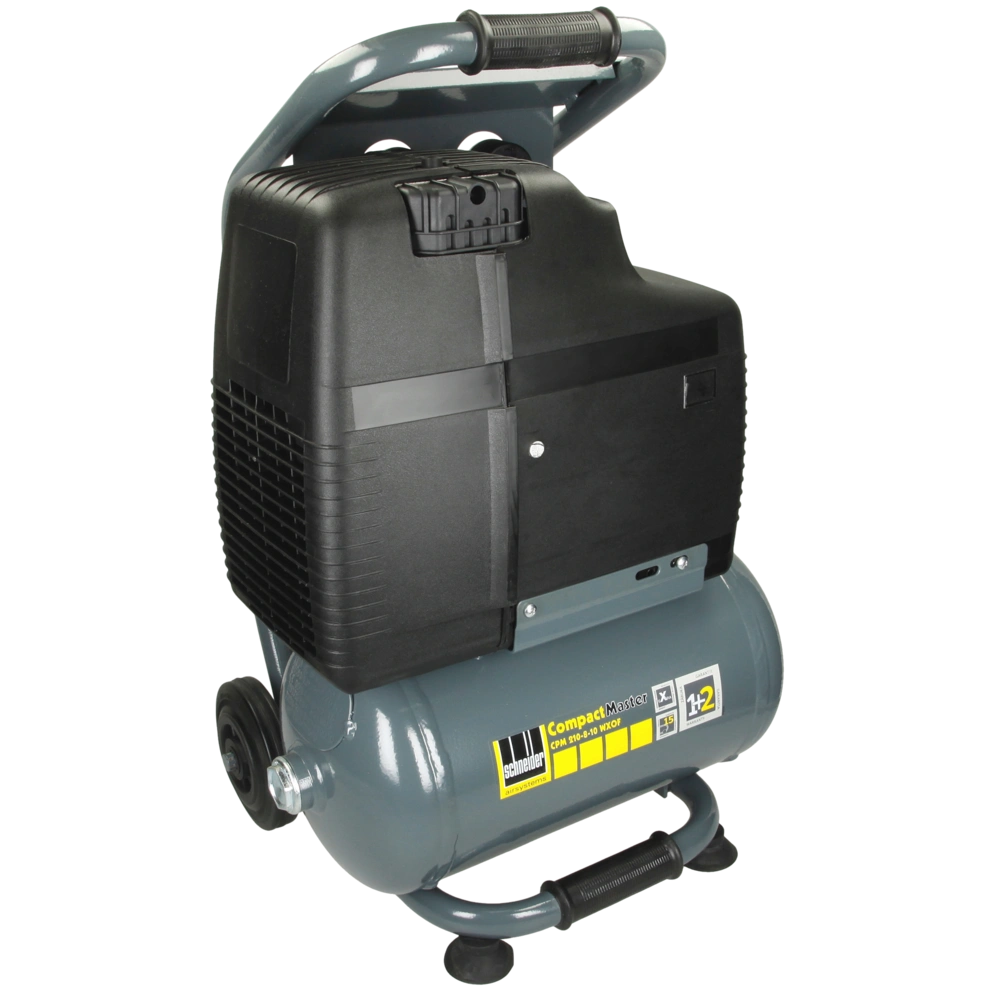

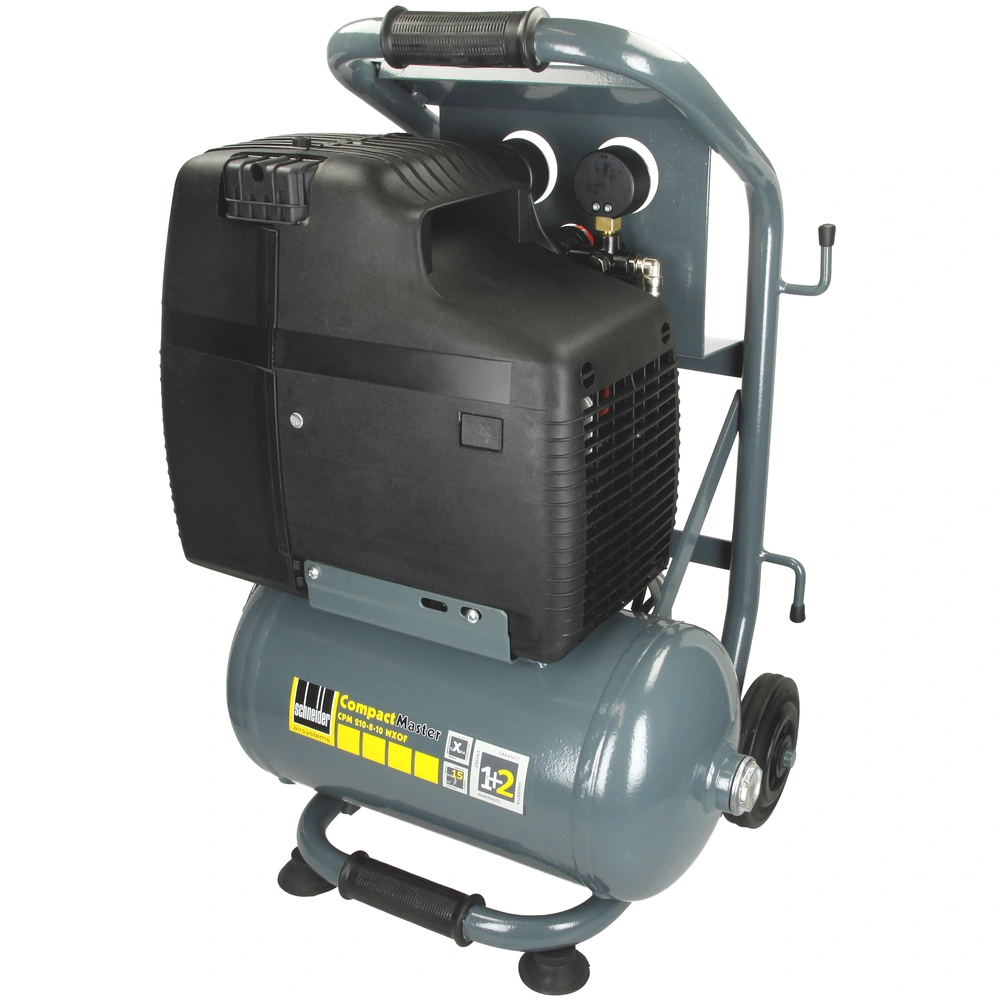

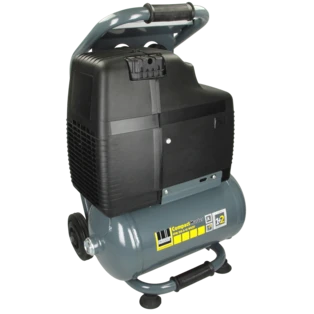

Compressor with 1-cylinder directly flanged power unit and a 15-year guarantee against rust on the vessel.
Vertical and horizontal transport possible.
Lifetime up to 10 times longer than common...
Related products
Compressor with 1-cylinder directly flanged power unit and a 15-year guarantee against rust on the vessel.
Vertical and horizontal transport possible.
Lifetime up to 10 times longer than common oil-free compressors thanks to high-quality, wear-resistant materials.
Oil-free operation saves maintenance. No oil change required, no oil in the condensate.
Up to 32% more filling capacity due to high-performance reeling piston.
Vessel with burnt-in inner coating.
Technical data:
- pressure: 8 bar
- filling capacity: 110 l/min
- suction capacity: 210 l/min.
- tank volume: 10 l
- drive power: 1.1 kW
- voltage: 230 Volt
- speed: 2,800 rpm
- dimensions (WxDxH): 420 x 340 x 620 mm
- weight: 21 kg
- noise level dB(A): 94
For more information see Downloads
| OEG no. | 350222007 |
| Pressure max. [bar]: | 8 |
| Voltage [V]: | 230 |
| Length x Width x Height [mm]: | 420 x 340 x 620 |
| Noise emission [dB]: | 95 |
| Capacity [l]: | 10 |
| Speed max. [1/min]: | 2,850 |
| Filling capacity [l/min]: | 120 |
| Drive power [kW]: | 1.1 |
| Suction capacity [l/min]: | 210 |
| Manufacturer | Schneider |
| Manufacturer number | 1121090030 |
| EAN | 4011666005106 |
| Weight [kg] | 21.4 |
| Customs tariff number | 84143089 (IT) |
