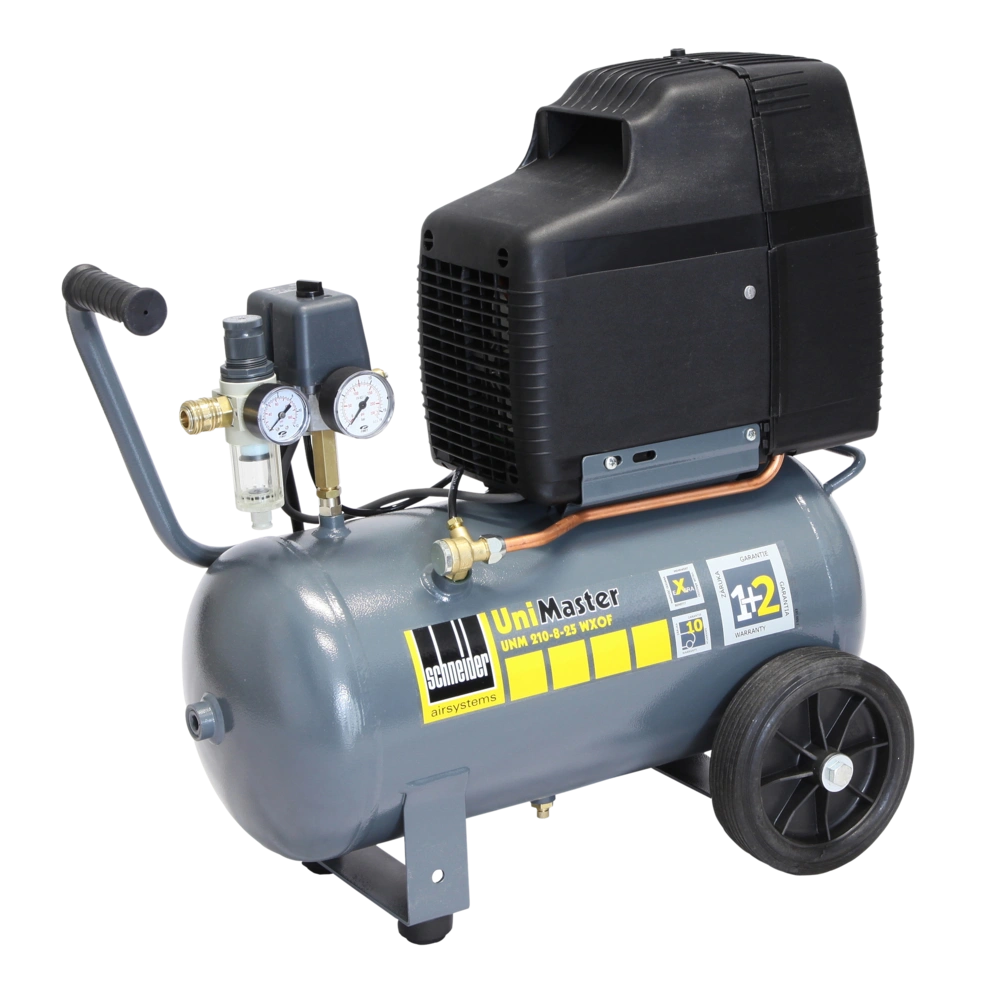

Compressor UNM 210-10-25 WXOF 1121210922
OEG no.: 350111002
This compressor is a directly flanged, oil-free 1-cylinder power unit with integrated motor protection. It is also provided with a filter pressure reducer ensuring controlled compressed air that is also purified from condensate, dirt and oil...
All product information Scope of deliveryRelated products
This compressor is a directly flanged, oil-free 1-cylinder power unit with integrated motor protection. It is also provided with a filter pressure reducer ensuring controlled compressed air that is also purified from condensate, dirt and oil. The compressor has an extremely long life due to high-performance reeling pistons.
| Scope of delivery: | |||
| 1 x | tank 24 litres | ||
| 1 x | compressor unit | ||
| 1 x | safety valve | ||
| 1 x | Pressure reducing valve | ||
| 2 x | pressure gauge | ||
| 1 x | pressure switch | ||
For more information see Downloads
| OEG no. | 350111002 |
| Pressure max. [bar]: | 10 |
| Voltage [V]: | 230 |
| Length x Width x Height [mm]: | 655 x 365 x 655 |
| Noise emission [dB]: | 95 |
| Capacity [l]: | 24 |
| Speed max. [1/min]: | 2,850 |
| Filling capacity [l/min]: | 120 |
| Drive power [kW]: | 1.1 |
| Suction capacity [l/min]: | 210 |
| Manufacturer | Schneider |
| Manufacturer number | 1121210922 |
| EAN | 4011666922205 |
| Also replaces |
|
| Weight [kg] | 22.2 |
| Customs tariff number | 84148028 (IT) |
