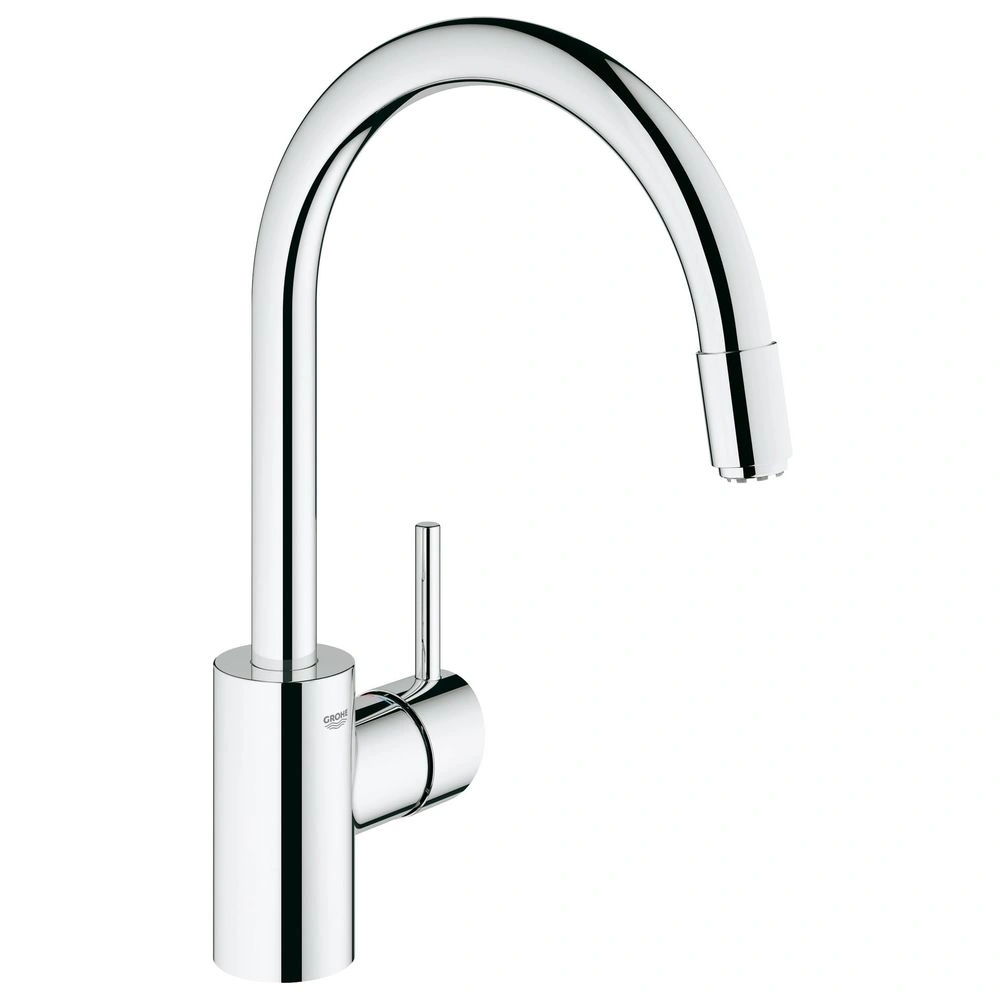

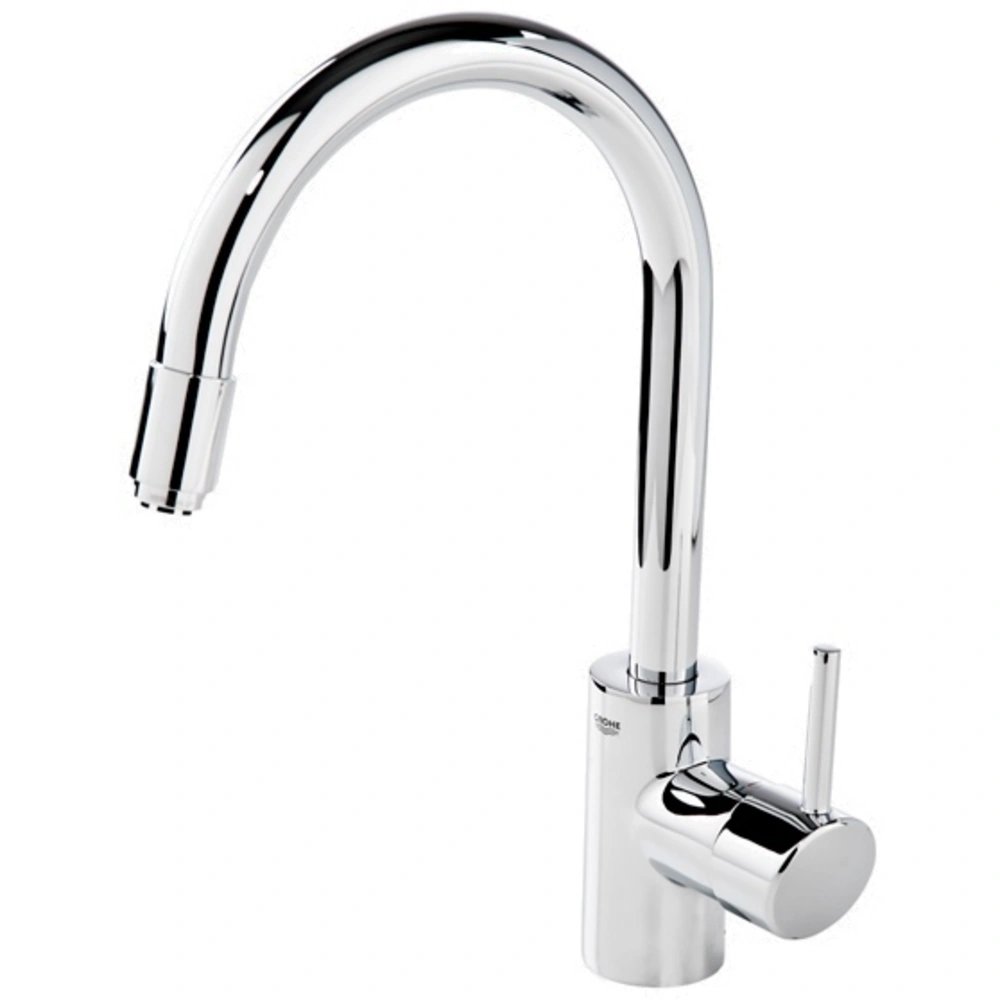

Concetto single-lever kitchen fitting with pull-out laminar spray 31212003
OEG no.: 800010252
Single-lever kitchen fitting for monobloc installation. The low-pressure tap has a GROHE 35 mm SilkMove® ceramic cartridge, a variably adjustable flow rate limiter and a high spout that can be swivelled by 360°...
All product information Scope of delivery
Low-pressure fitting for vented hot water cylinders
Single-lever kitchen fitting for monobloc installation. The low-pressure tap has a GROHE 35 mm SilkMove® ceramic cartridge, a variably adjustable flow rate limiter and a high spout that can be swivelled by 360°. The pull-out laminar spray is equipped with automatic retraction. The GROHE EcoJoy® flow rate limiter saves up to 50 % of water, and the GROHE Zero® technology provides isolated, inner waterways for lead- and nickel-free drinking water. The GROHE StarLight® chrome finish is easy to clean, hygienic and scratch-resistant. With the GROHE FastFixation® installation system and the flexible connection hoses the tap can be fitted quickly and easily. It is intrinsically safe against backflow.
| Scope of delivery: | |||
| 1 x | Sink fitting | ||
| 2 x | flexible connection hose | ||
| 1 x | Mounting kit | ||
For more information see Downloads
| OEG no. | 800010252 |
| Application : | Sink |
| Type of connection: | Low pressure |
| Tap fitting installation: | Surface mounting |
| Waste set: | Without |
| Connection size supply hose: | 3/8" IT |
| Fitting operation: | Single-lever mixer tap |
| Surface: | GROHE StarLight |
| Cartridge: | GROHE SilkMove 35 mm ceramic cartridge |
| Projection [mm]: | 215 |
| Spout height [mm]: | 211 |
| Height of tap [mm]: | 360 |
| Operating pressure [bar]: | 3 |
| Flow rate [l/min]: | 7.5 .. 8 |
| Spout swivelling: |
 Yes
|
| Pull-out spout: | Yes |
| Spout: | Laminar spray |
| Application: | Hot water, Cold water |
| Mixer colour: | Chrome |
| Spout shape: | Curved |
| Design line: | Concetto |
| Manufacturer | Grohe |
| Manufacturer number | 31212003 |
| EAN | 4005176466762 |
| Weight [kg] | 3.05 |
| Notes |
Low-pressure fitting for vented hot water cylinders
|
| Customs tariff number | 84818011 (PT) |
|
|
|
| OEG no. | 800010252 |
| Application : | Sink |
| Type of connection: | Low pressure |
| Tap fitting installation: | Surface mounting |
| Waste set: | Without |
| Connection size supply hose: | 3/8" IT |
| Fitting operation: | Single-lever mixer tap |
| Surface: | GROHE StarLight |
| Cartridge: | GROHE SilkMove 35 mm ceramic cartridge |
| Projection [mm]: | 215 |
| Spout height [mm]: | 211 |
| Height of tap [mm]: | 360 |
| Operating pressure [bar]: | 3 |
| Flow rate [l/min]: | 7.5 .. 8 |
| Spout swivelling: |
Yes
|
| Pull-out spout: | Yes |
| Spout: | Laminar spray |
| Application: | Hot water, Cold water |
| Mixer colour: | Chrome |
| Spout shape: | Curved |
| Design line: | Concetto |
| EAN | 4005176466762 |
| Weight [kg] | 3.05 |
| Notes |
Low-pressure fitting for vented hot water cylinders
|
| Customs tariff number | 84818011 (PT) |
There are no questions available on this item yet
