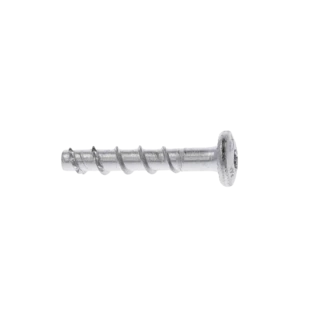

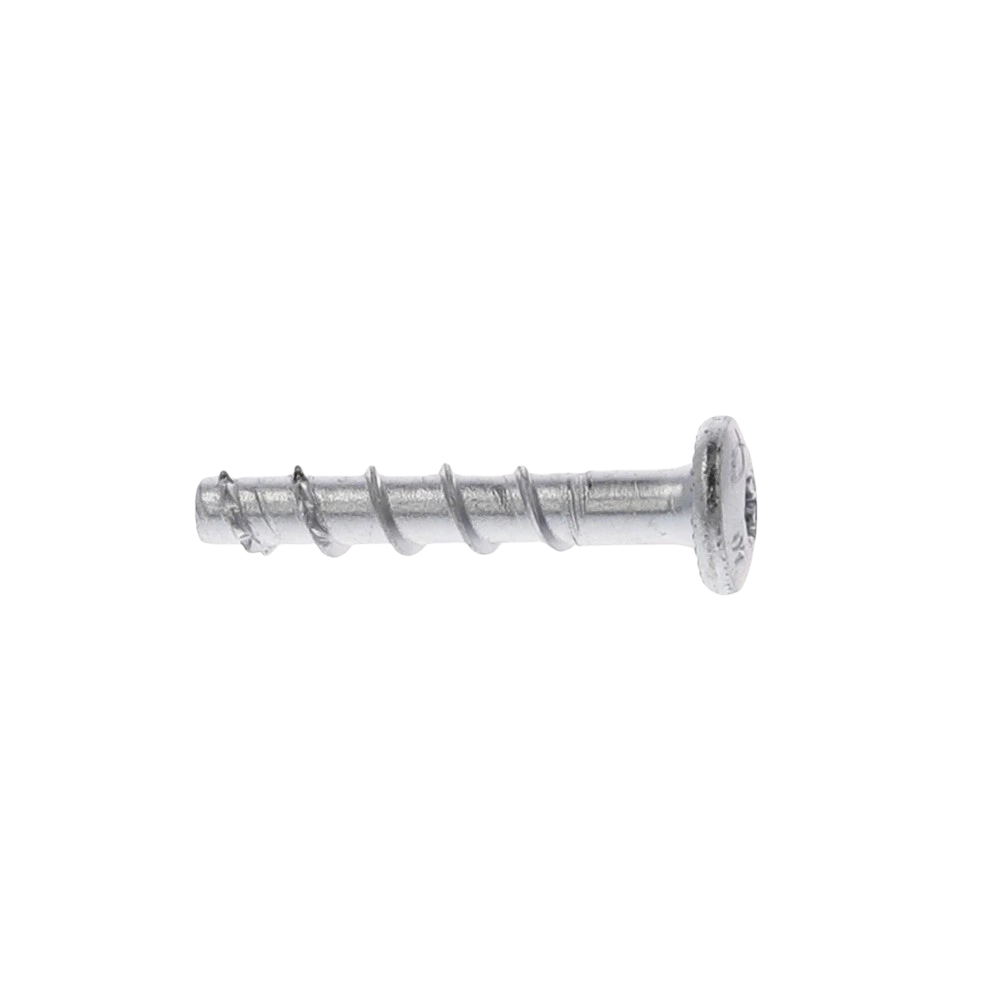

Concrete screw UltraCut Ø 6 x 60 mm with panhead 546380
OEG no.: 806005998
Electrogalvanised concrete screw with panhead design. Ideal for fixing pipe routes, channel systems, ventilation ducts and facilities in building service engineering. The variable embedment depth ensures high flexibility when adapting to loads...
All product information
Suitable for concrete
Building material Cracked concrete
Perforated sand-lime bricks
Solid sand-lime bricks
Solid brick
Fire resistance class R120
ETA CE certified

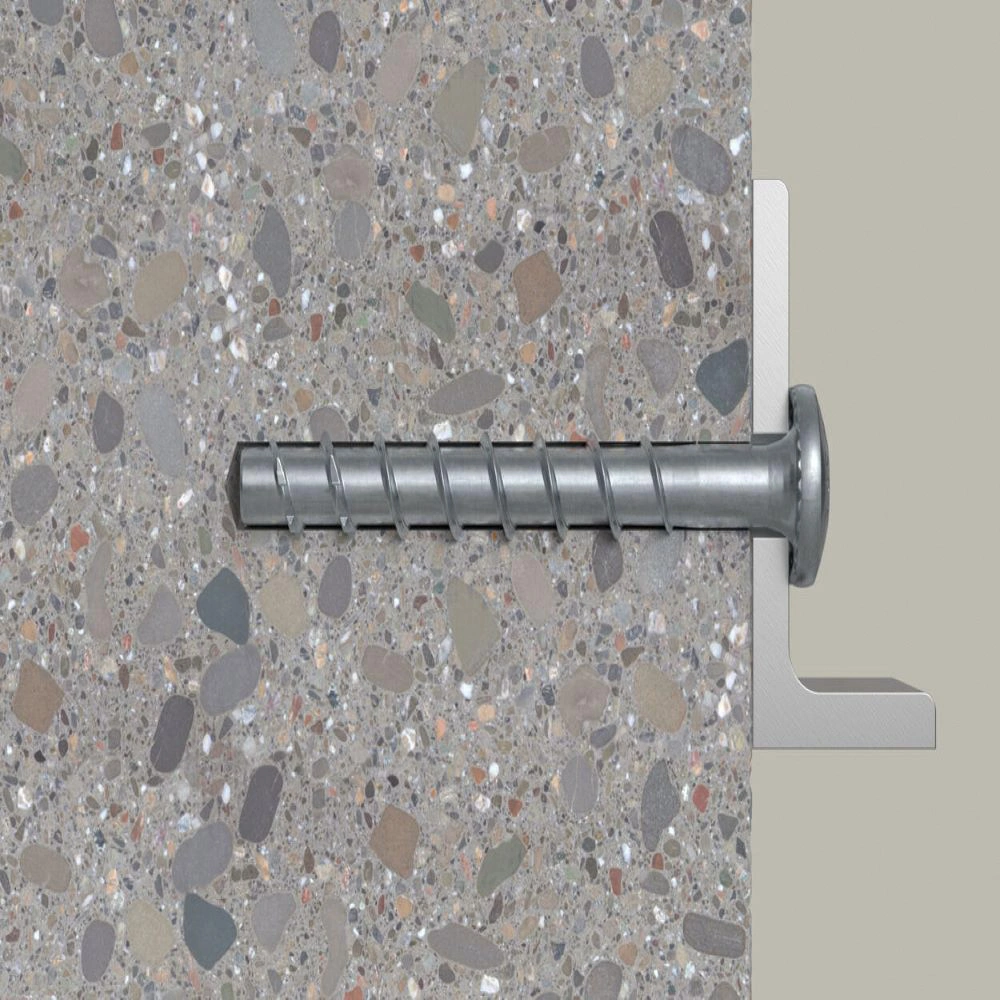

Electrogalvanised concrete screw with panhead design. Ideal for fixing pipe routes, channel systems, ventilation ducts and facilities in building service engineering. The variable embedment depth ensures high flexibility when adapting to loads.
For more information see Downloads
| OEG no. | 806005998 |
| PU | 100 pieces |
| Type: | Concrete screw |
| Type: | FBS II |
| Drive: | TX30 |
| Head diameter [mm]: | 14.4 |
| Screw length [mm]: | 60 |
| Bore hole diameter [mm]: | 6 |
| Bore hole depth min. [mm]: | 70 |
| Mounting type: | Push-through installation, Pre-positioned installation |
| Screw-in depth min. [mm]: | 25 |
| Screw-in depth max. [mm]: | 55 |
| Spanner width [mm]: | 10 |
| Material: | Electrogalvanised steel |
| Head type: | Panhead |
| Manufacturer | Fischer |
| Herstellernummer | 546380 |
| EAN | 4048962329384 |
| Weight [kg] | 1 |
| Notes |
Suitable for concrete
Building material Cracked concrete
Perforated sand-lime bricks
Solid sand-lime bricks
Solid brick
Fire resistance class R120
ETA CE certified
|
| Customs tariff number | 73181499 |
