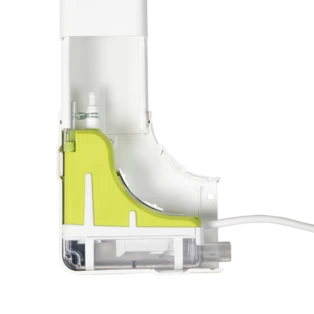

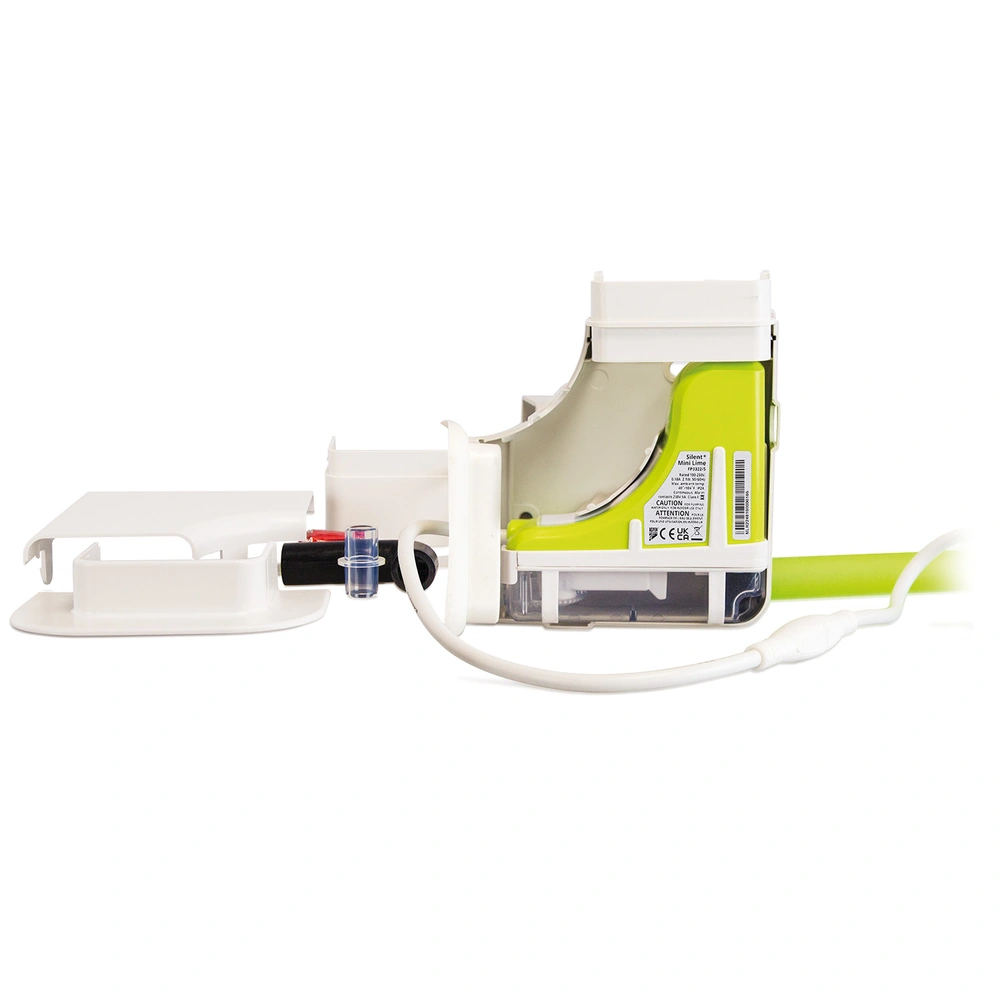

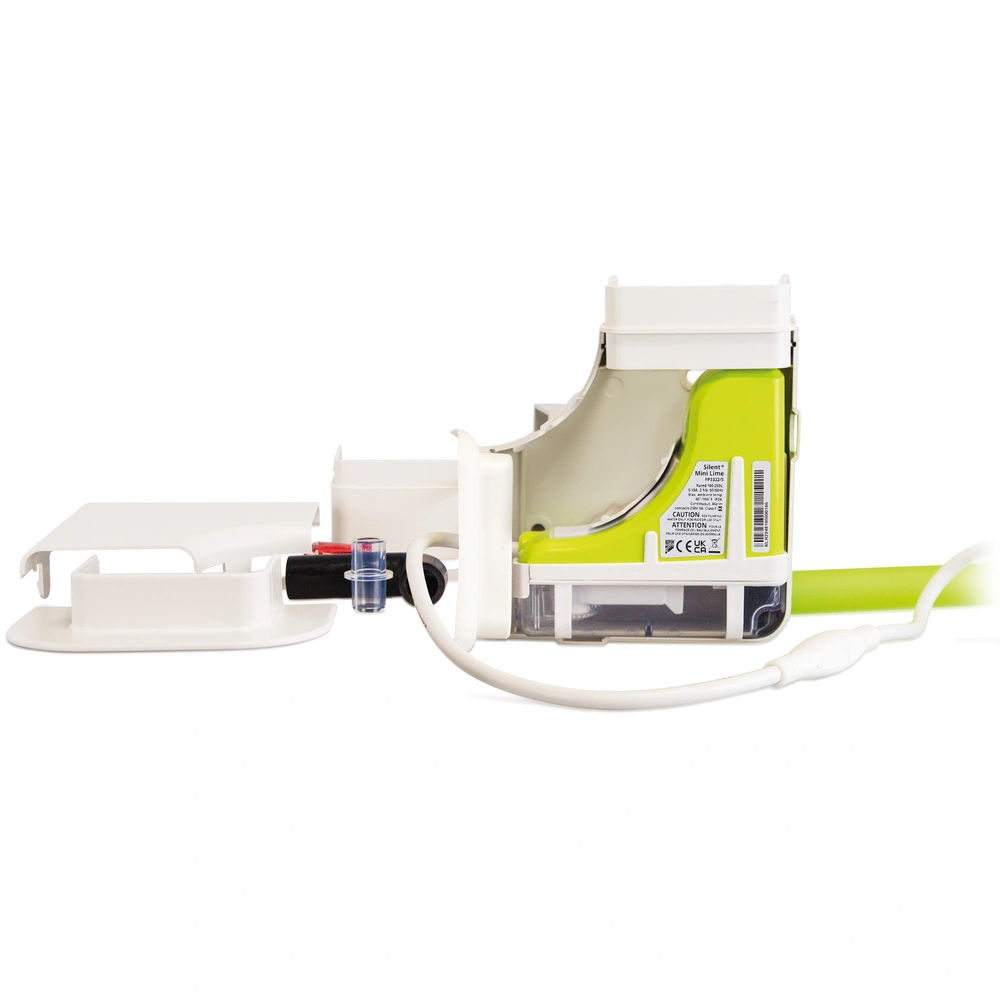

Condensate removal pump New Silent⁺ Mini Lime FP33205
OEG no.: 510499957

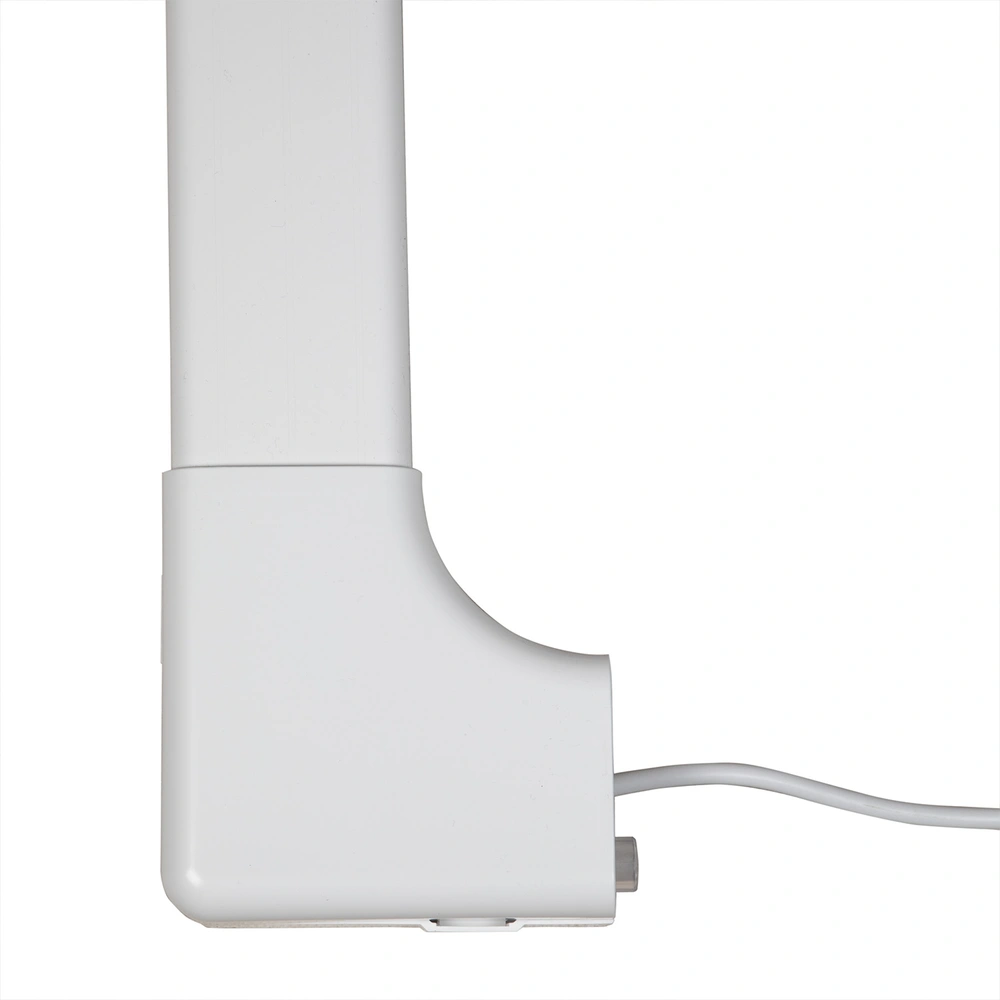

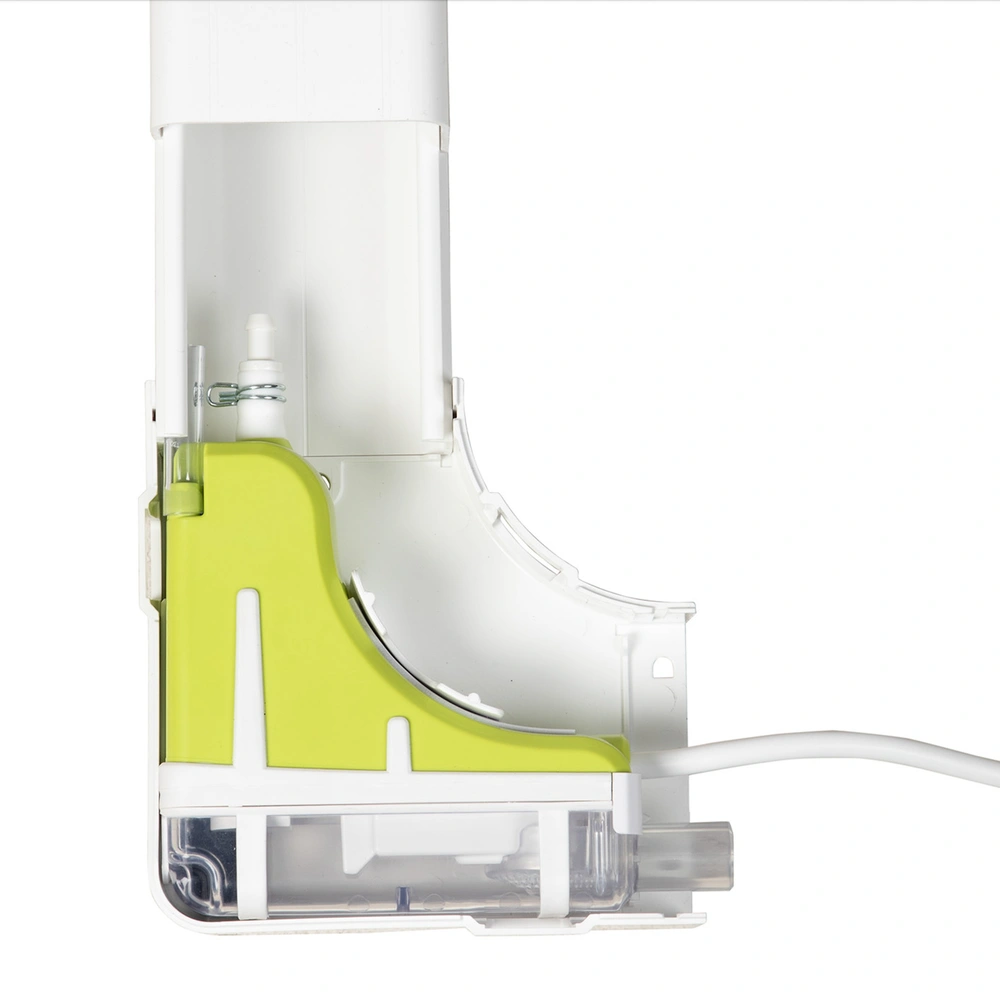

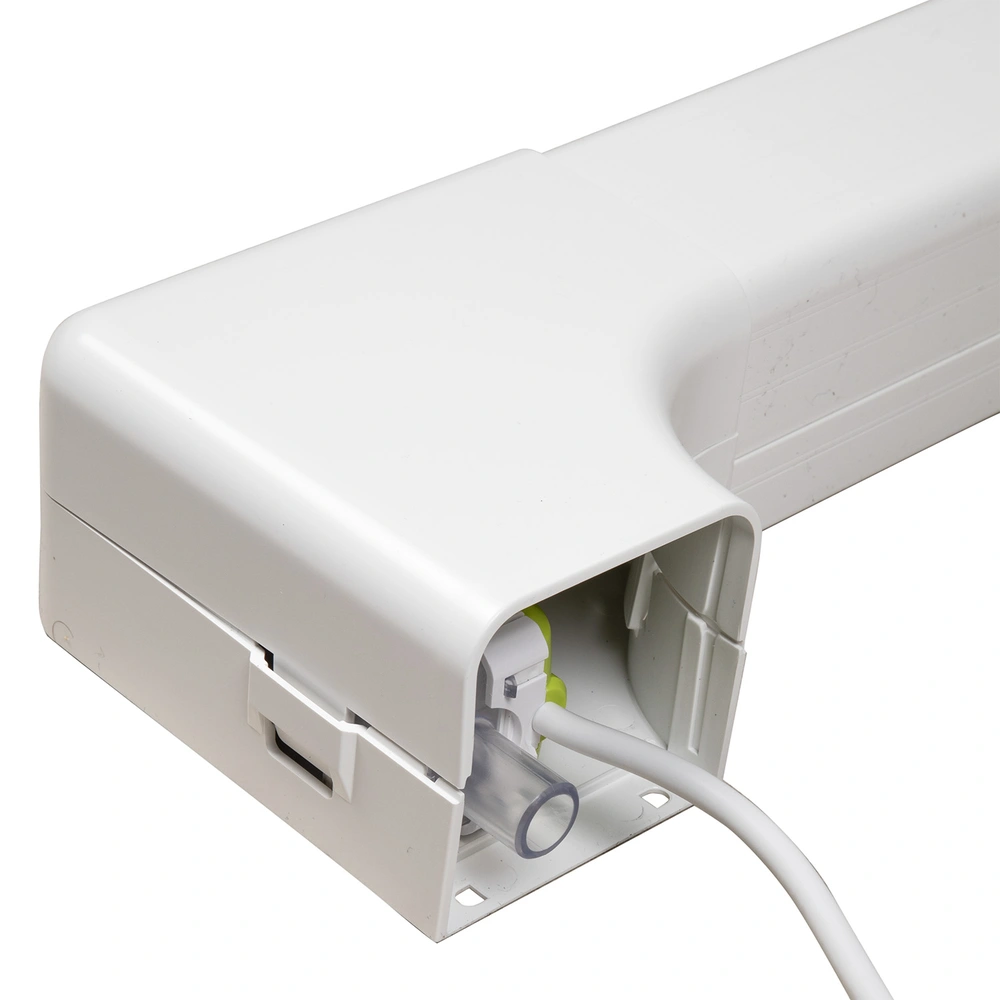

Mini condensate removal pump in trunking elbow for air-conditioning units. The slim design offers many installation options where space is limited. The latest technologies ensure an impressive flow...
All product information Scope of delivery
CE
Low-noise

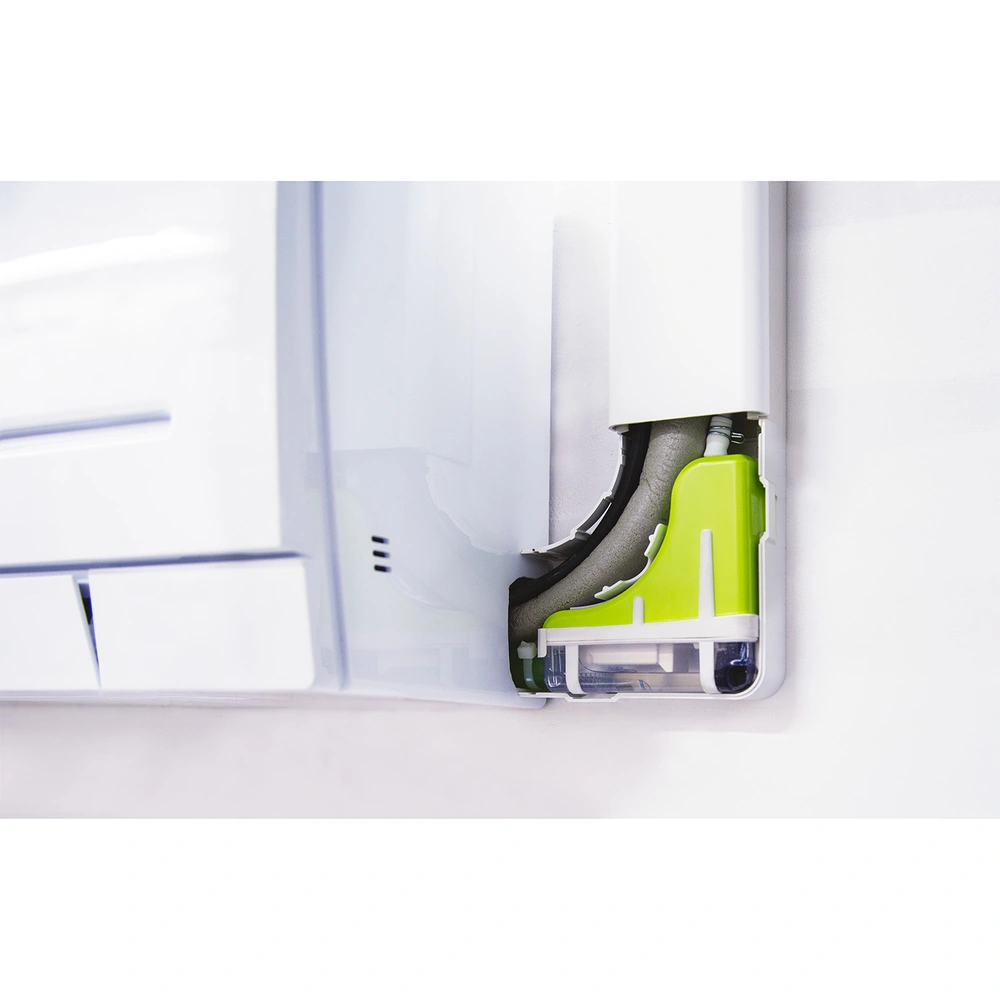

Mini condensate removal pump in trunking elbow for air-conditioning units. The slim design offers many installation options where space is limited. The latest technologies ensure an impressive flow rate with low power consumption and low noise levels. Particularly in rooms such as bedrooms and offices, where quiet is required, the pump is virtually silent - you hear nothing. You can hear a volume example in the video.

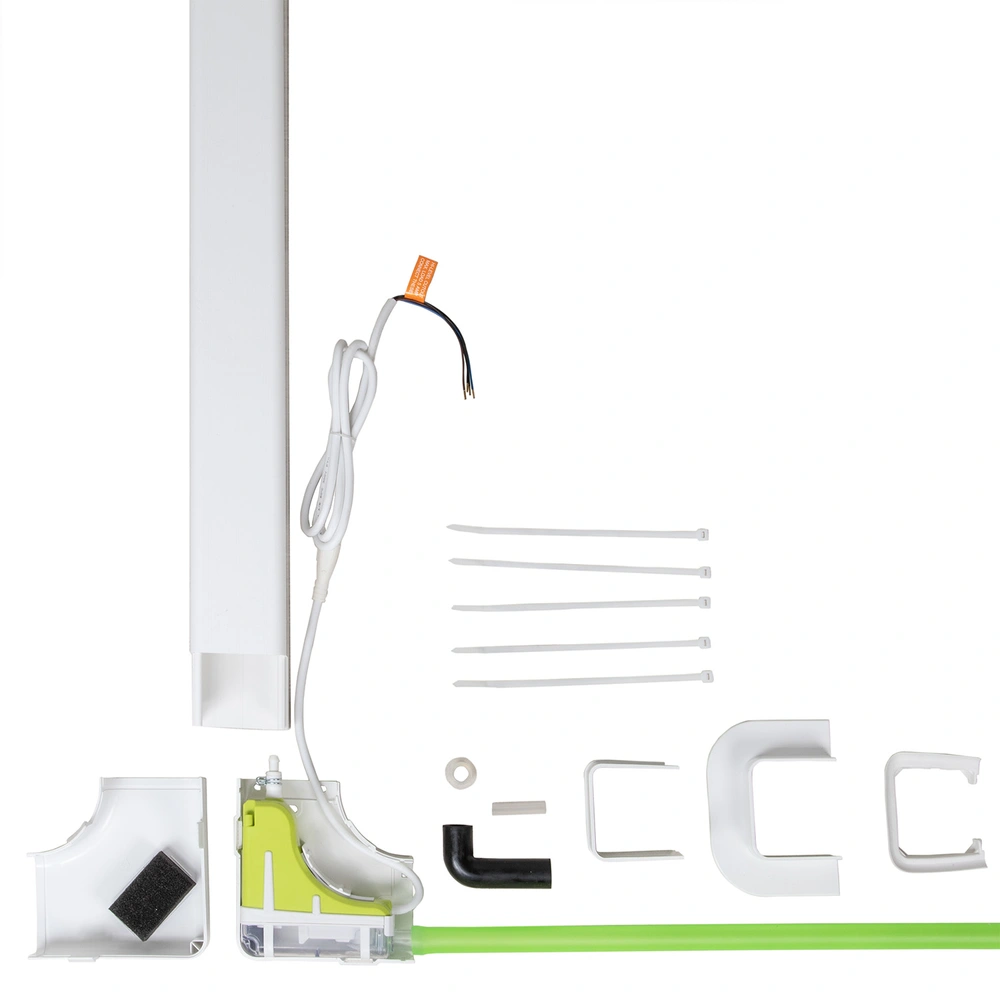

| Scope of delivery: | |||

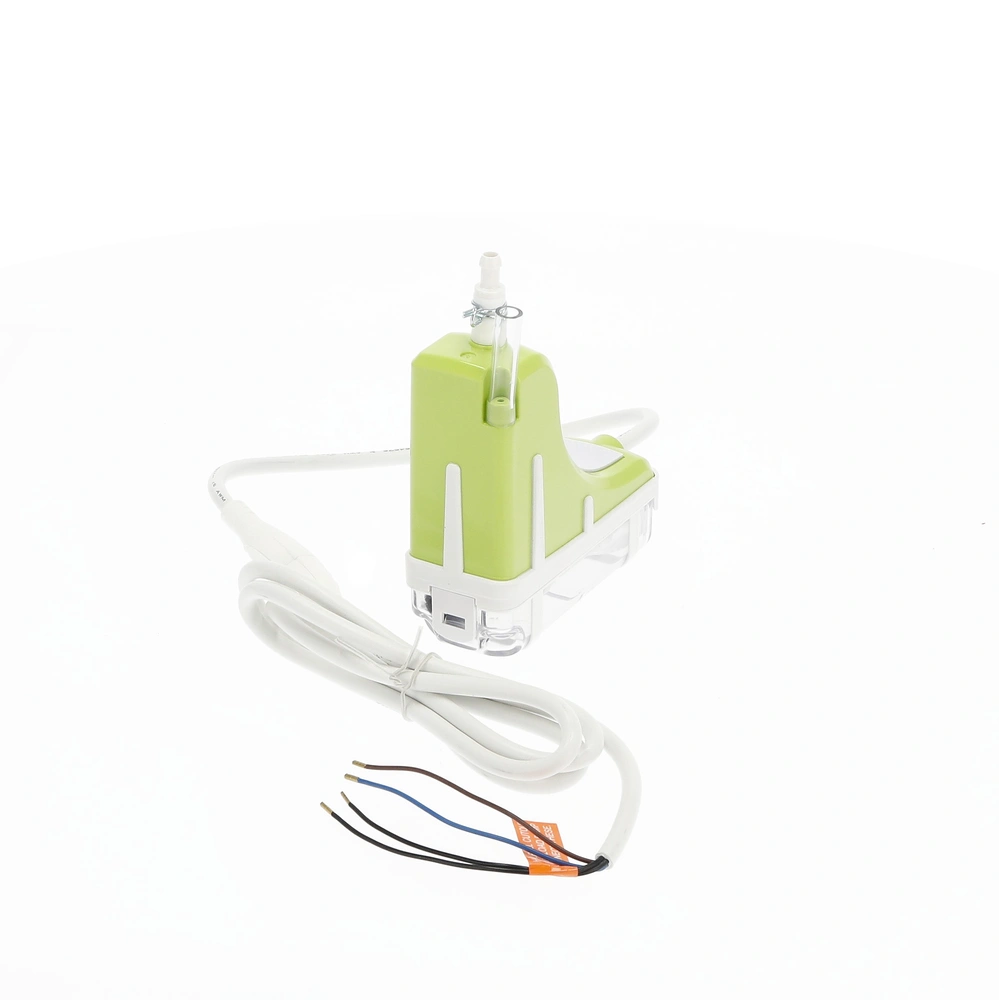

| 1 x | Condensate removal pump with 1.5 m wired power cable | ||
| 1 x | Anti-vibration damper | ||
| 1 x | Anti-siphon device and 500 mm discharge tube | ||
| 1 x | Inlet hose 500 mm | ||
| 1 x | 40 mm PVC venting hose 6 mm | ||
| 1 x | Pump angle | ||
| 1 x | 800 mm duct | ||
| 1 x | Seal | ||
| 1 x | Ceiling lead-through | ||
| 1 x | drain connector kit | ||
| 1 x | Fastening kit | ||
For more information see Downloads
| OEG no. | 510499957 |
| Type: | Mini Lime Silent⁺ |
| Delivery head [m]: | 15 |
| Voltage [V]: | 230 |
| Output max. [l/h]: | 40 |
| Protection type [IP]: |
 IP24
|
| Media temperature max. [°C]: | 40 |
| Noise emission dB (A): | 16 |
| Suitable for: | Air-conditioning units up to 46 kW |
| Power consumption [W]: | 2.1 |
| Manufacturer | Aspen Pumps |
| Manufacturer number | FP33205 |
| EAN | 5060144943996 |
| Weight [kg] | 1.55 |
| Notes |
CE
Low-noise
|
| Customs tariff number | 84138100 |
Question
Bonjour, cette pompe est elle compatible et est t'il possible de l'installer dans une unité intérieur clim bosch ?
Answer OEG:
La Minilime est une pompe à canal installée à côté de l'appareil. De nombreux accessoires d'aspiration sont inclus. Nous ne pouvons pas nous prononcer sur l'espace disponible dans l'unité Bosch.
Question
is dit wit of creme kleur?
Answer OEG:
De kleur is RAL 9003. Dat is "signal white" en kan getypeerd worden als bijna spierwit.
