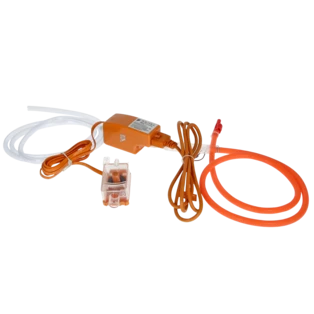

Condensate removal pump Silent⁺ Mini Orange® FP3313
OEG no.: 510499960
Mini condensate removal pump for the use in wall-mounted air-conditioning units and mini split devices. The slim design allows for a number of installation options even in confined spaces. The high-performance...
All product information Scope of delivery
CE
Mini condensate removal pump for the use in wall-mounted air-conditioning units and mini split devices. The slim design allows for a number of installation options even in confined spaces. The high-performance motor with sound insulation and the vibration-damped bracket make the pump very quiet.

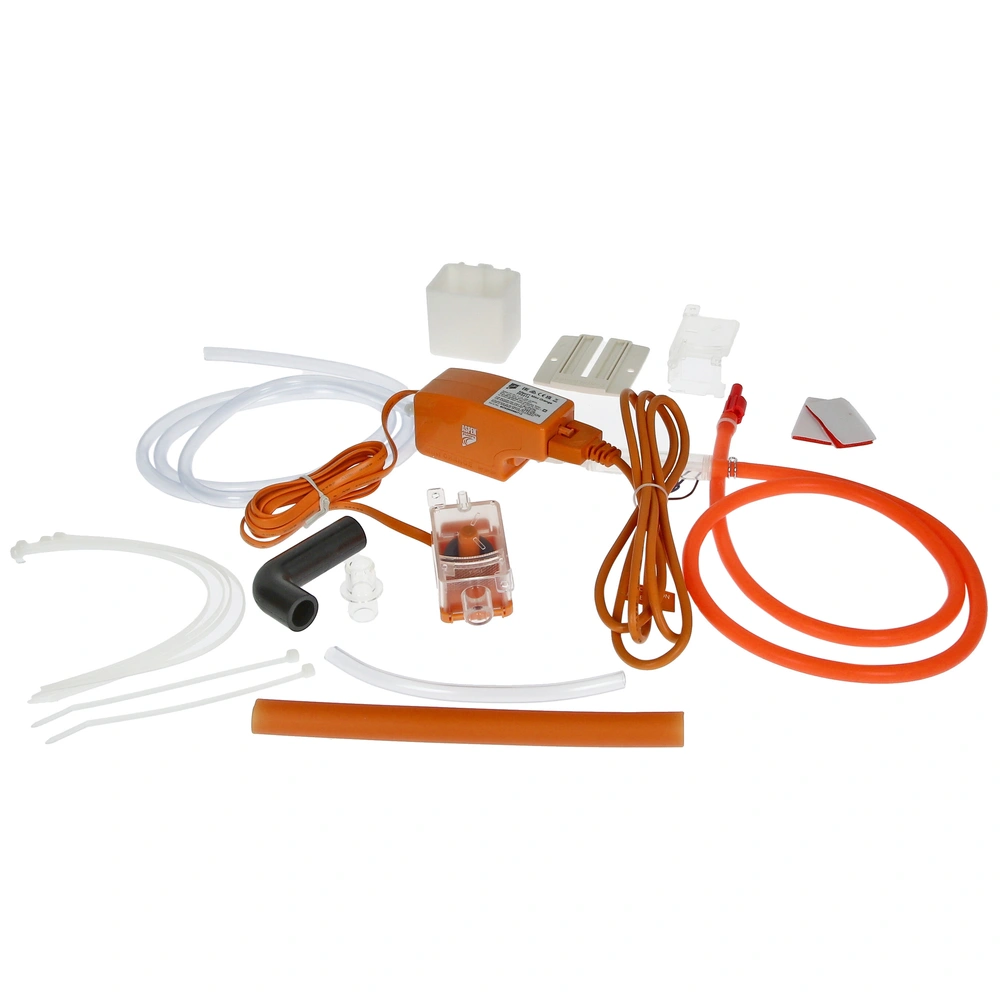

| Scope of delivery: | |||
| 1 x | Condensate removal pump | ||
| 1 x | 1.5 m Plug & Play power cable | ||
| 1 x | vibration damper | ||
| 1 x | Pressure hose | ||
| 1 x | holder | ||
| 1 x | reservoir | ||
| 1 x | reservoir lid with 1.5 m sensor cable | ||
| 1 x | submersible reservoir | ||
| 1 x | pistontype anti-siphon valve | ||
| 1 x | float and filter | ||
| 1 x | 1.5 m suction tube 6 mm ID | ||
| 1 x | Inlet hose 220 mm | ||
| 1 x | 150 mm PVC breather tube 6 mm ID | ||
| 1 x | drain connector kit | ||
| 1 x | Fastening kit | ||
| 1 x | installation manual | ||
For more information see Downloads
| OEG no. | 510499960 |
| Type: | Mini Orange Silent⁺ |
| Delivery head [m]: | 10 |
| Voltage [V]: | 230 |
| Delivery rate [l/h]: | 12 |
| Application: | Devices up to 16 kW |
| Protection type [IP]: |
 IP21
|
| Suction height [m]: | 2 |
| Media temperature max. [°C]: | 40 |
| Noise emission dB (A): | 19 |
| Manufacturer | Aspen Pumps |
| Manufacturer number | FP3313 |
| EAN | 5060144981288 |
| Also replaces |
|
| Weight [kg] | 0.71 |
| Notes |
CE
|
| Customs tariff number | 84136080 |
