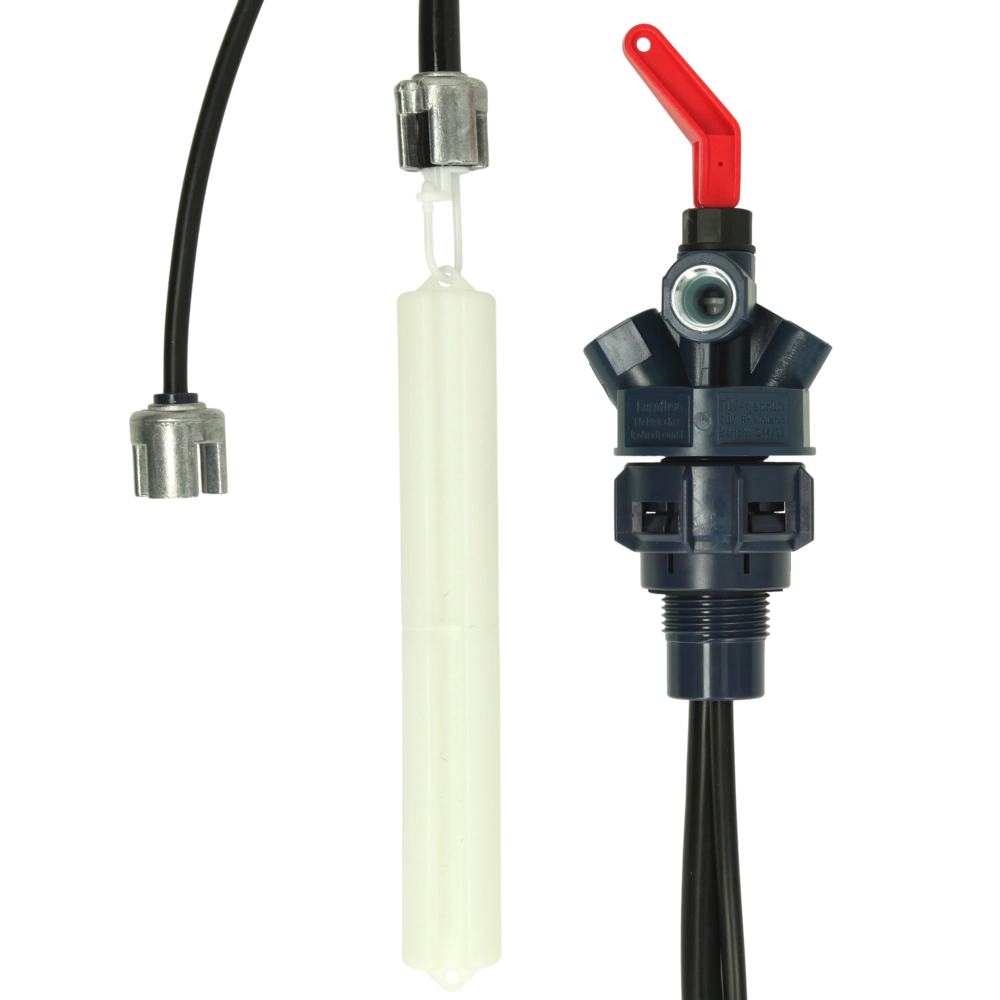

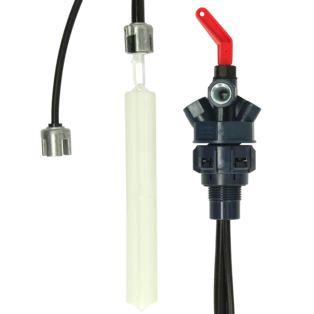

Connection fitting Euroflex 3 with measuring line and float 20130

Connection fitting Euroflex for the withdrawal of heating oil from aboveground tanks in one-pipe or two-pipe mode. Suitable for the media fuel oil EL (DIN 51603-1) and diesel fuel (EN 590) as well as biofuel (EN 14213) and biodiesel (DIN 14214) with max. 30% FAME. Also suitable for use with the new paraffinic fuels HVO or GTL as an admixture or 100 %. Suitable for flood risk areas.

Euroflex is a plastic combination fitting as a withdrawal system with measuring line and German TÜV-tested isolating piece for screwing into the tank. The connection of the suction and the return line is via stainless steel screwed pipe connections G 3/8". Euroflex also has universal compression fittings for pipes with external diameters of 8 and 10 mm. The integrated check valve with elastic valve seat prevents the oil column in the suction line from being interrupted during burner standstill times. The quick-action shut-off valve has a toggle lever for remote closing in emergency situations.
With integrated float for heating oil withdrawal in the "clean" top area.

Note:

Not suitable for underground tanks.

Conformity certificate as per EN 12514-2, ÜHP
German TÜV-tested as isolating piece

For more information see Downloads
