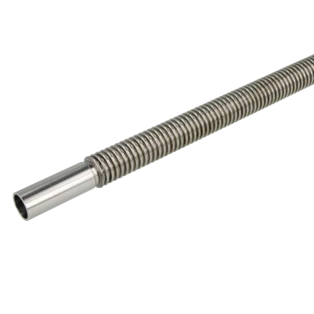

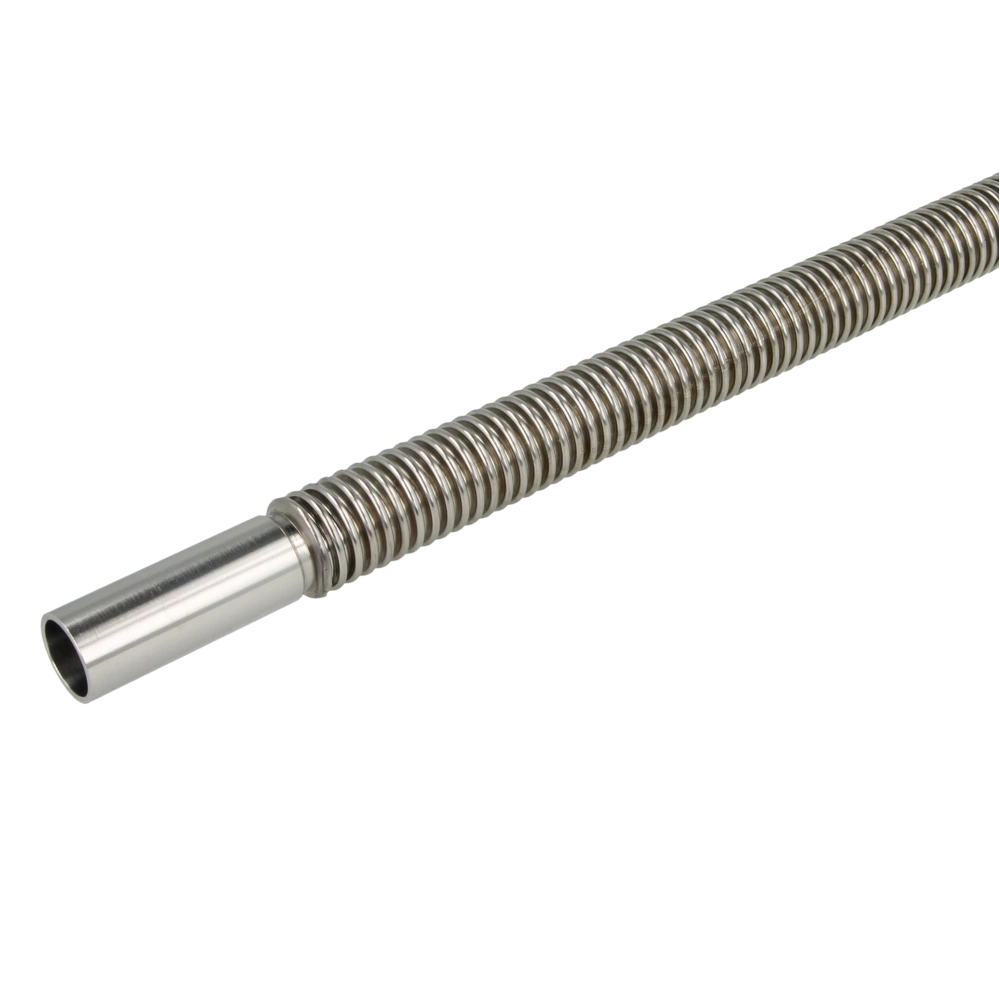

Corrugated stainless steel pipe DN20 300 mm both ends Ø 18 mm pipe sockets
OEG no.: 516002740
Corrugated stainless steel pipe for quick and flexible connection of storage tanks, boilers and expansion vessels, for example. With two welded-on pipe sockets, it is suitable for compression fittings.
All product information
Corrugated stainless steel pipe for quick and flexible connection of storage tanks, boilers and expansion vessels, for example. With two welded-on pipe sockets, it is suitable for compression fittings.
For more information see Downloads
| OEG no. | 516002740 |
| PU | 300 mm |
| Connection size: | 18 mm |
| Type: | Corrugated tube |
| Type of connection: | pipe connection |
| pmax Corrugated pipe [bar]: | 6 |
| tmax Corrugated pipe [°C]: | 130 |
| Weight [kg]: | 0,20 |
| Nominal size: | DN20 |
| Internal diameter [mm]: | 20 |
| Outer diameter [mm]: | 26,40 |
| Manufacturer | OEG |
| Notes | |
| Customs tariff number | 83071000 |
There are no questions available on this item yet
Technical documentation (PDF)
- 0.09MB
