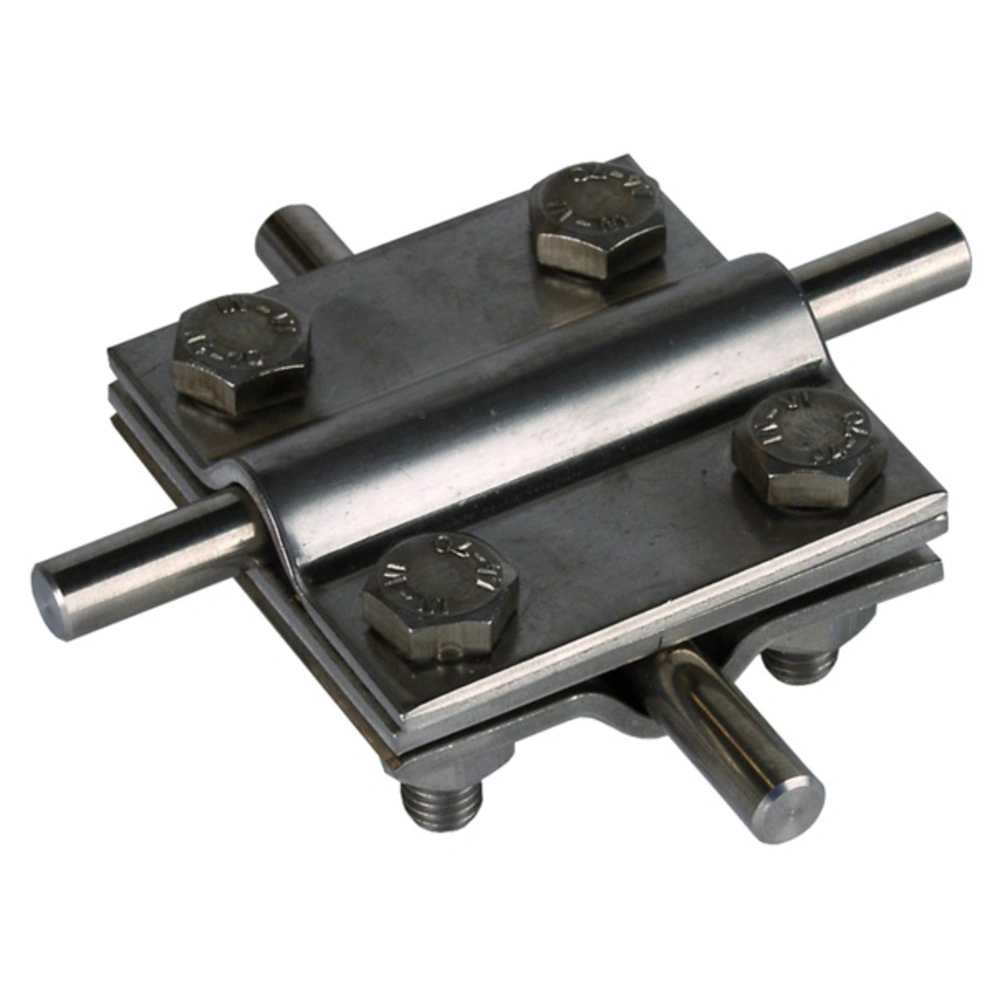

Cross connector with intermediate plate for round/ flat conductors 319209
OEG no.: 740001776
Cross connector with intermediate plate made of stainless steel for above- and below-ground connections of round and flat conductors in cross and T configurations.
Technical data:
•...
Cross connector with intermediate plate made of stainless steel for above- and below-ground connections of round and flat conductors in cross and T configurations.
Technical data:
• Dimensions: 60 x 60 x 3 mm, screw: M8 x 25 mm
• Clamping range, round / round: 8–10 / 8–10 mm
• Clamping range, round / flat: 8–10 / 30 mm
• Clamping range, flat / flat: 30 / 30 mm
• Clamping range, stranded conductor or cable: 50–70 mm²
| OEG no. | 740001776 |
| Material: | Stainless steel |
| Length x Width x Height [mm]: | 60 x 60 x 3 |
| Manufacturer | Dehn |
| Herstellernummer | 319209 |
| Weight [kg] | 0.31 |
| Notes | |
| Customs tariff number | 85389099 |
