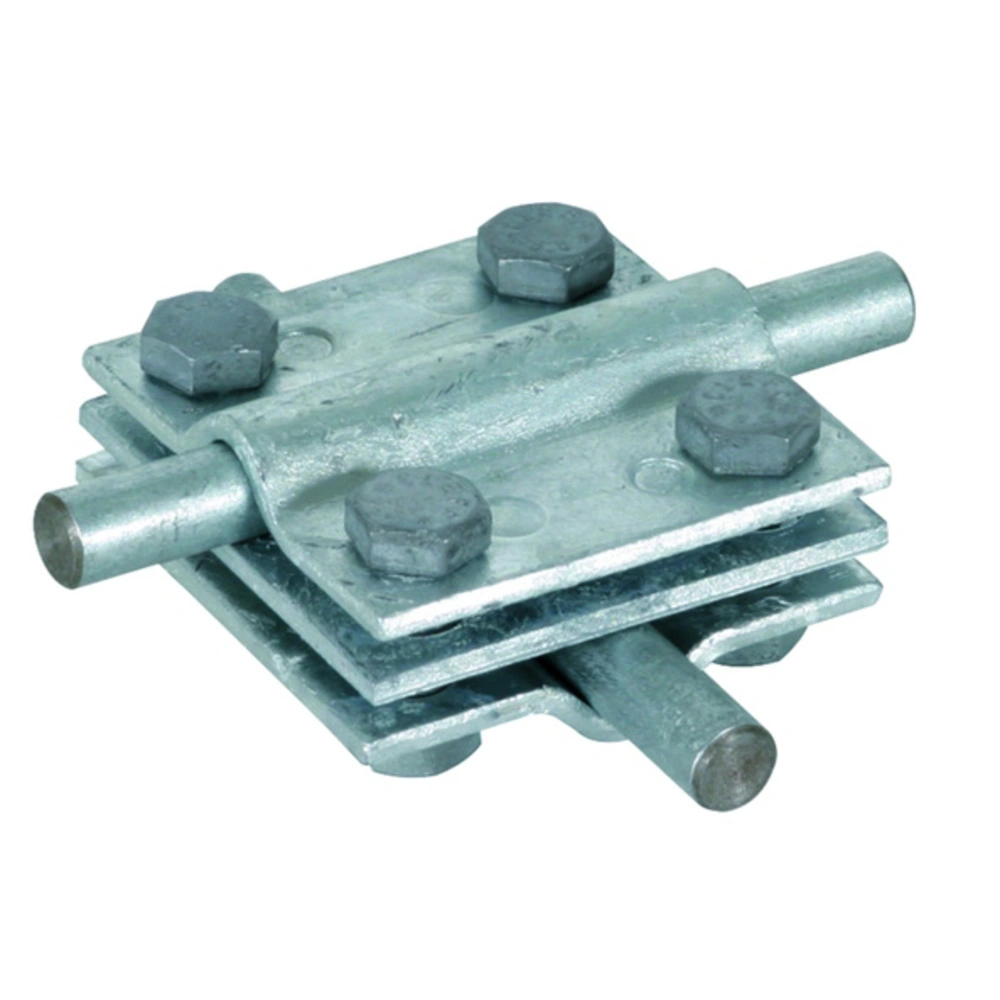

Cross unit St/tZn for pipe Ø8-10/8-10mm pipe Ø8-10/Fl 30mm-Fl 30/30mm with plate 319201
OEG no.: 740001772
Cross units for aboveground and underground connections, for conductors in cross and T arrangement.
Technical data:
- dimensions: 60 x 60 x 3 mm, screw: M8 x 25 mm
- clamping...
Cross units for aboveground and underground connections, for conductors in cross and T arrangement.
Technical data:
- dimensions: 60 x 60 x 3 mm, screw: M8 x 25 mm
- clamping range: round/round 8-10/8-10 mm
- clamping range: round/flat 8-10/30 mm
- clamping range: flat/flat 30/30 mm
- clamping range stranded or cable: 50-70 mm²
| OEG no. | 740001772 |
| Material: | Steel |
| Surface: | Galvanised |
| Length x Width x Height [mm]: | 60 x 60 x 3 |
| Manufacturer | Dehn |
| Manufacturer number | 319201 |
| Weight [kg] | 0.32 |
| Customs tariff number | 85389099 |
