Diamond drilling machine plumbing dry-drilling kit 3999101358
OEG no.: 311907275
Powerful core drilling machine for dry core drilling bits. The hand-held manually operated machine with soft start has a safety slip clutch and electronic overload protection. The machine can be combined...
All product information Scope of delivery
CE
Concrete blocks
Stones
Brick
sand-lime brick
Suitable for porous concrete
Powerful core drilling machine for dry core drilling bits. The hand-held manually operated machine with soft start has a safety slip clutch and electronic overload protection. The machine can be combined with many core drill bits via the ½” arbor.

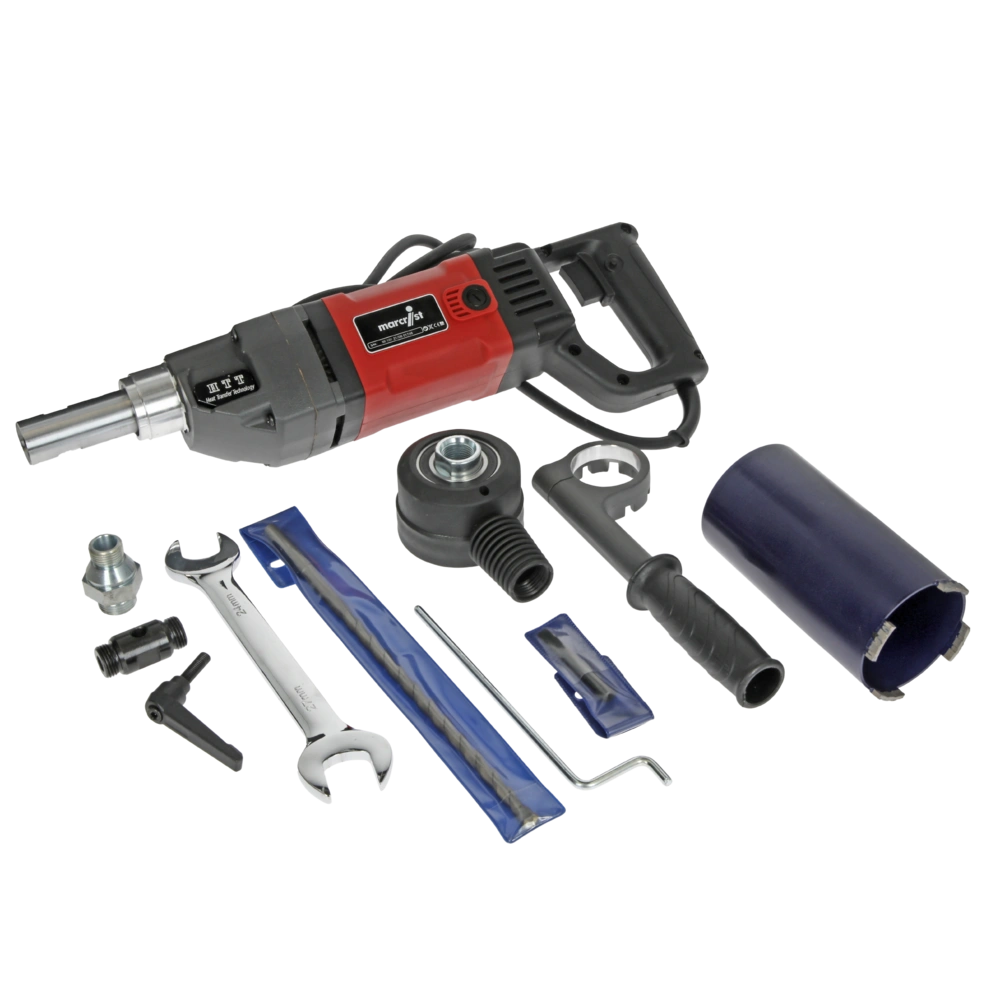

| Scope of delivery: | |||
| 1 x | Drilling machine | ||
| 1 x | Open-end spanner | ||

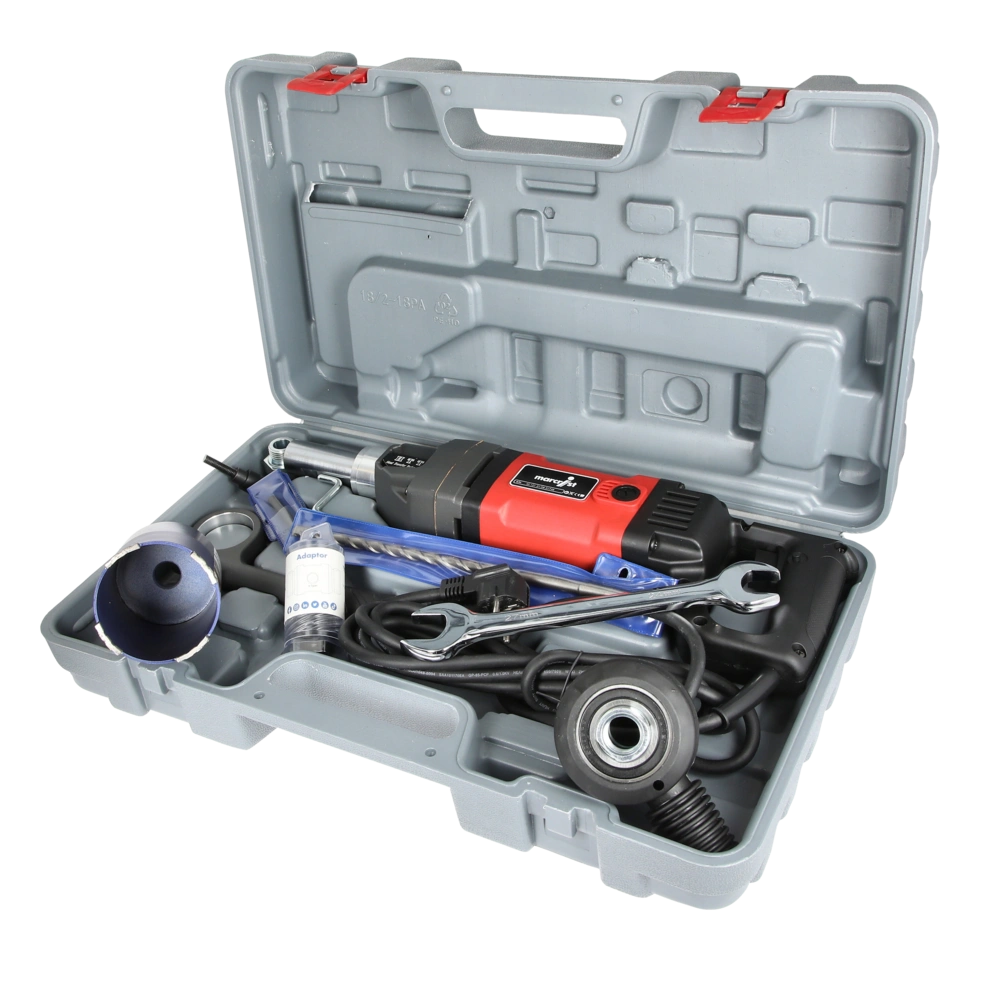

| 1 x | Case | ||
| 1 x |

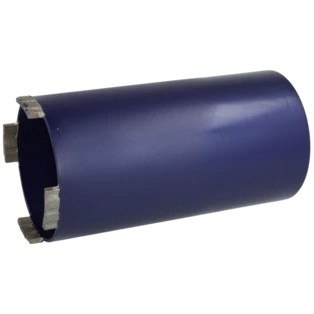

High-performance diamond percussion core 1/2" dry drilling Ø 82 x 175 mm |
|
|
| 1 x |

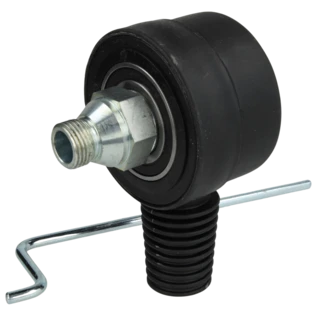

Dust extraction unit for extraction with dry drilling cores |
|
|
| 1 x |

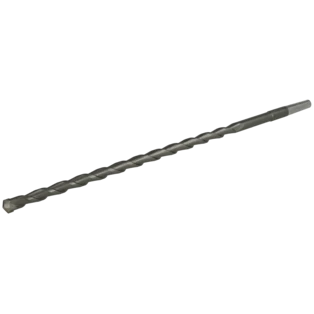

Pilot drill 300 x 8 mm with A-taper for dry core when using dust extraction unit |
|
|
| 1 x |
Pilot drill drift key |
|
|
| 1 x |
Adaptors 1/2" BSP ET on 1/2" BSP ET for core drills |
|
|
For more information see Downloads
| OEG no. | 311907275 |
| Output [W]: | 1,900 |
| Voltage [V]: | 230 |
| No-load speed [1/min]: | 0 .. 1,750 |
| Tool holder: | 1/2" BSP IT |
| Fitting: | Ø 46 mm |
| Borehole Ø max. concrete [mm]: | 82 |
| Borehole Ø max. stone [mm]: | 107 |
| Drilling process: | Dry drilling |
| Type: | DDM150-F |
| Manufacturer | Marcrist |
| Manufacturer number | 3999101358 |
| Weight [kg] | 5 |
| Notes |
CE
Concrete blocks
Stones
Brick
sand-lime brick
Suitable for porous concrete
|
| Customs tariff number | 84672199 |
Question
Bonjour, est-ce que l'aspiration se fait dans la couronne? Au cas, est-ce que le filetage de la couronne est en 32? Merci, bien à vous.
Answer OEG:
Ce kit est prévu pour le forage à sec.
