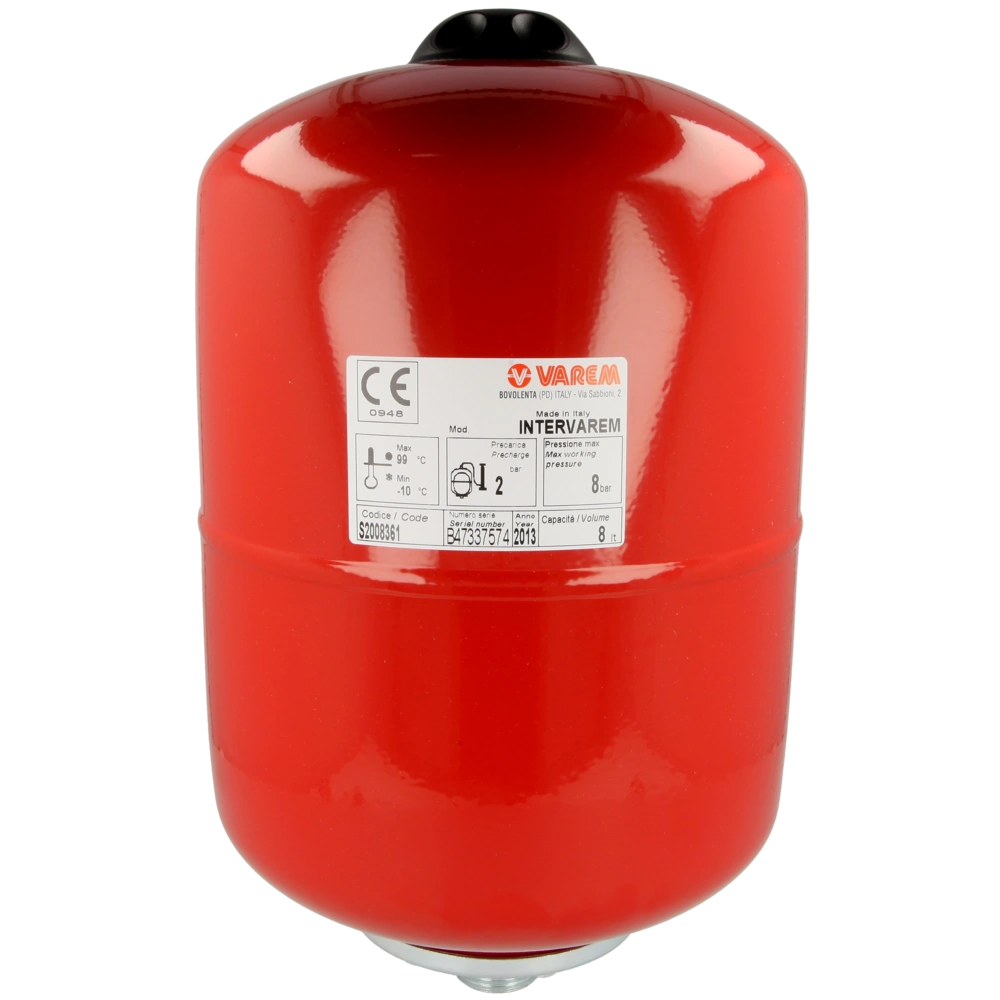

Diaphragm pressure tank vertical 8 l - connection 1" - 8 bar
OEG no.: 823002000
The expansion vessel with exchangeable butyl diaphragm is a pressure vessel for water. The connection is mounted on flange at the bottom. It can be painted in the vessel colour if required.
The vessel is tested according to ISO 9002.
All product informationRelated products
CE
Suitable for drinking water
The expansion vessel with exchangeable butyl diaphragm is a pressure vessel for water. The connection is mounted on flange at the bottom. It can be painted in the vessel colour if required.
The vessel is tested according to ISO 9002.
| OEG no. | 823002000 |
| Design: | Vertical |
| Diameter: | 200 mm |
| Colour: |
 Red
|
| Height [mm]: | 348 |
| Pre-charge pressure [bar]: | 2 |
| Connection: | 1" |
| Capacity [l]: | 8 |
| Operating pressure max. [bar]: | 8 |
| Material: | Galvanised steel |
| Operating temperature [°C]: | -10 .. 99 |
| EAN | 8034108702742 |
| Weight [kg] | 2.4 |
| Notes |
CE
Suitable for drinking water
|
| Customs tariff number | 84798997 |
