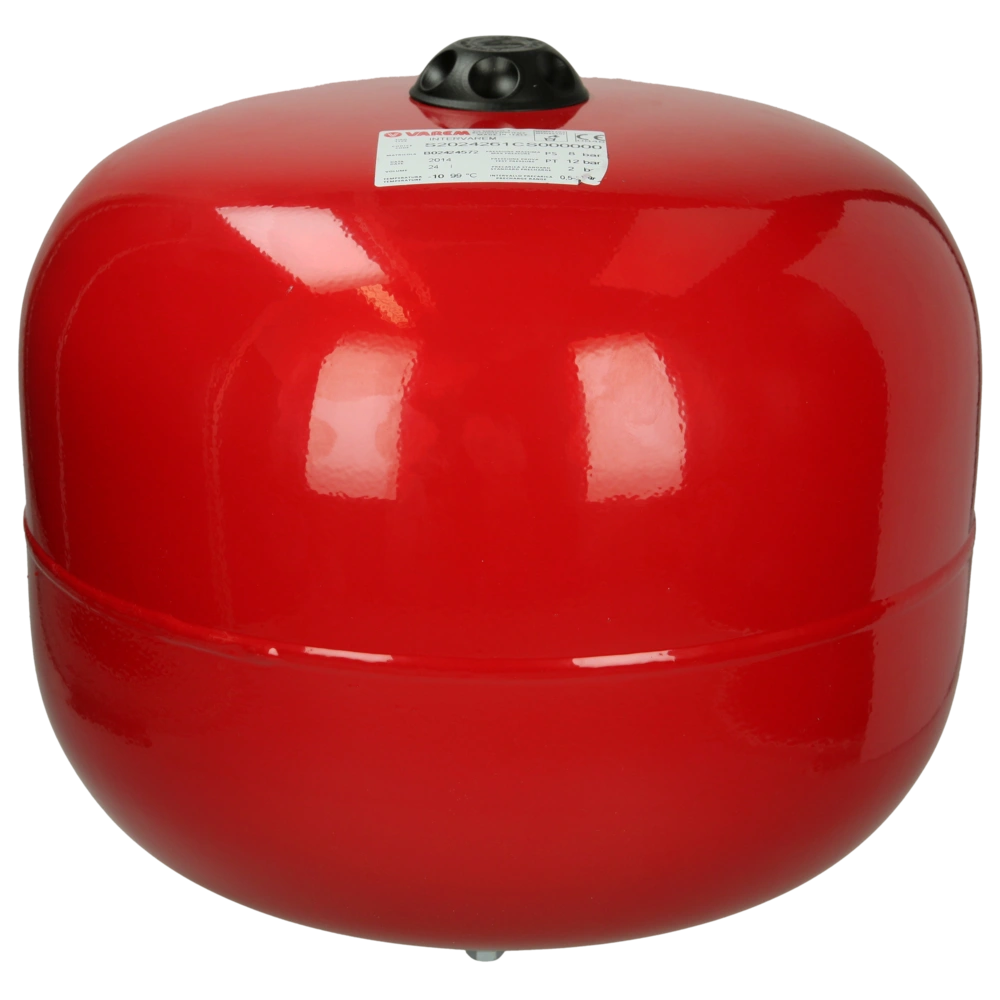

Diaphragm pressure vessel 24 litres max. 8 bar
OEG no.: 823002005
Expansion vessel made of steel with replaceable butyl diaphragm for the use in domestic water systems. The vessel is used for the compensation of pressure surges and drops and as storage vessel for intermediate storage...
All product informationRelated products
CE
Suitable for drinking water
Expansion vessel made of steel with replaceable butyl diaphragm for the use in domestic water systems. The vessel is used for the compensation of pressure surges and drops and as storage vessel for intermediate storage. It also reduces the switch-on frequency of pumps and ensures an extended life. The expansion vessel is tested according to ISO 9002.
| OEG no. | 823002005 |
| Connection: | 1" |
| Design: | Vertical |
| Diameter: | 351 mm |
| Colour: |
 Red
|
| Height [mm]: | 358 |
| Pre-charge pressure [bar]: | 2 |
| Capacity [l]: | 24 |
| Operating pressure max. [bar]: | 8 |
| Material: | Steel |
| Operating temperature [°C]: | -10 .. 99 |
| Manufacturer | Varem |
| Weight [kg] | 4.4 |
| Notes |
CE
Suitable for drinking water
|
| Customs tariff number | 84798997 |
