Expansion vessel made of steel with replaceable butyl diaphragm for the use in domestic water systems. The vessel is used for the compensation of pressure surges and drops and as storage vessel for intermediate storage...
All product informationRelated products

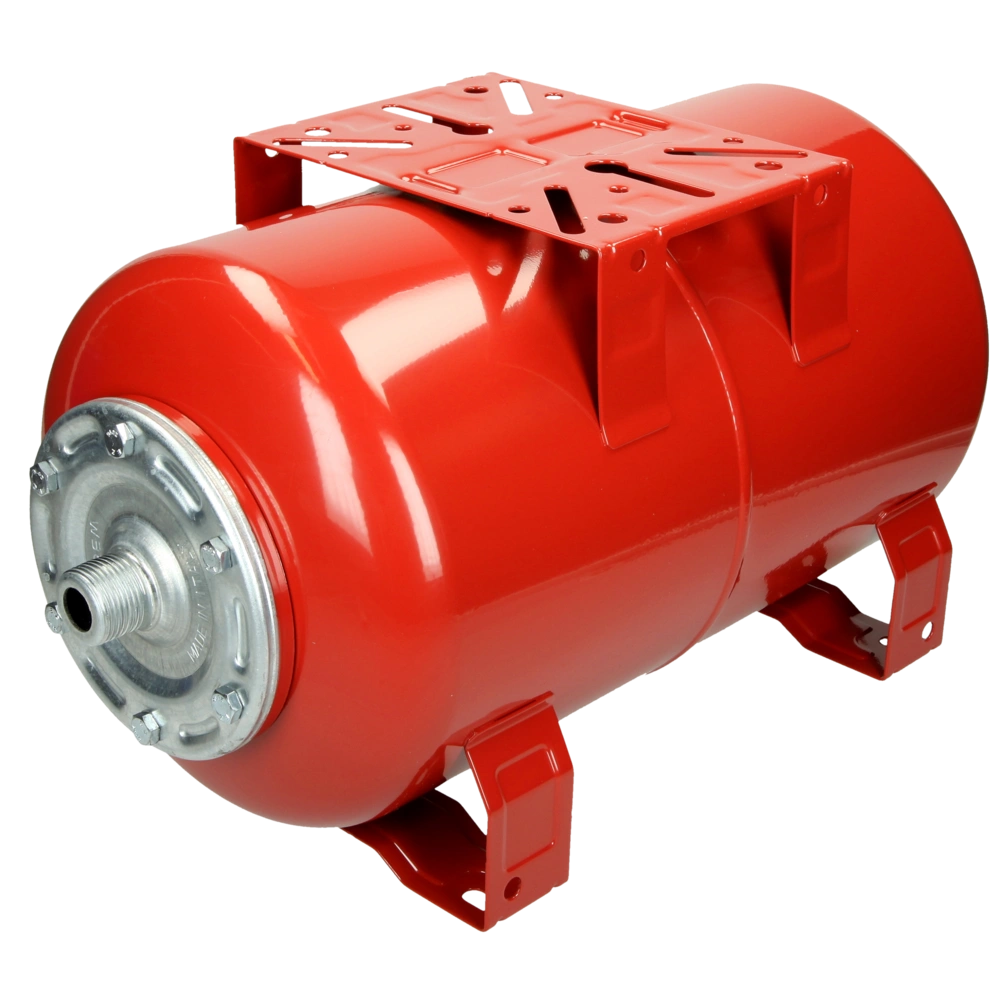

Expansion vessel made of steel with replaceable butyl diaphragm for the use in domestic water systems. The vessel is used for the compensation of pressure surges and drops and as storage vessel for intermediate storage. It also reduces the switch-on frequency of pumps and ensures an extended life. The expansion vessel is tested according to ISO 9002.
| Spare parts: | ||
|

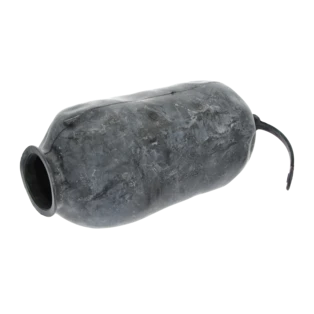

Butyl diaphragm for tanks 50 - 60 litres | |
| OEG no. | 823002060 |
| Connection: | 1 " |
| Model: | Horizontal |
| Diameter: | 410 mm |
| Colour: |
 Red
|
| Height [mm]: | 670 |
| Pre-charge pressure [bar]: | 2 |
| Capacity [l]: | 60 |
| Operating pressure max. [bar]: | 8 |
| Material: | Steel |
| Operating temperature [°C]: | -10 .. 99 |
| Weight [kg] | 13.8 |
| Customs tariff number | 84798997 |
Pourriez-vous me donner la référence de la membrane butyle seule (pour échange).
Ref OEG: Butyl diaphragm for tanks 50 - 60 litres Membrane à butyle pour réservoir 50-60 L
Is deze ook geschikt voor expansie van cv systemen
Het expansievat is geschikt voor cv systemen.
