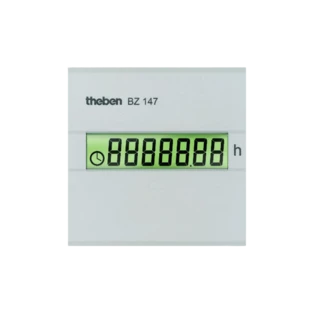

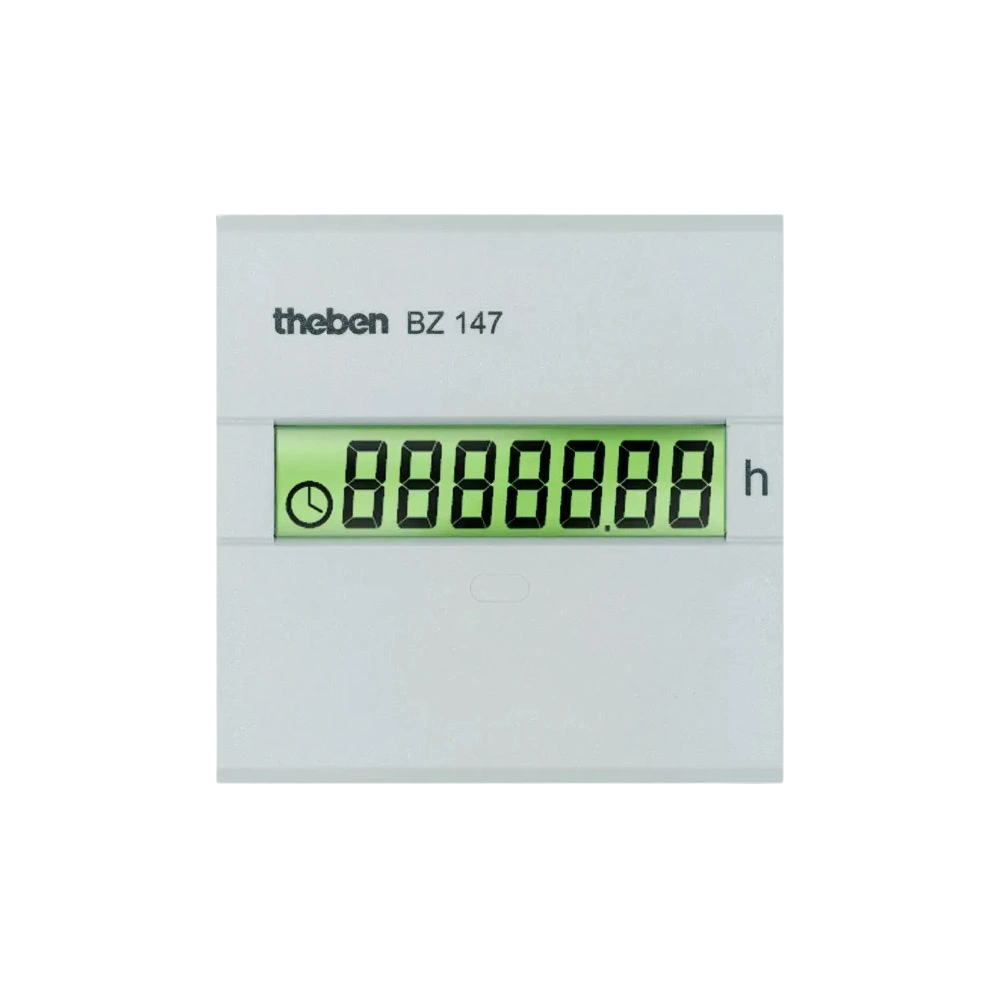

Digital hour counter for control panels 1470000
OEG no.: 512209262
Digital hour counter with EEPROM memory for reliable recording of operating time, even in the event of power failures. The quartz‑controlled counter features a 7‑digit, high‑contrast LCD with a run indicator...
All product information
Digital hour counter with EEPROM memory for reliable recording of operating time, even in the event of power failures. The quartz‑controlled counter features a 7‑digit, high‑contrast LCD with a run indicator.
The compact unit is designed for installation in standard control panels and is easily mounted in the panel cut‑out using clamping brackets. Captive terminal screws ensure safe electrical wiring.
For more information see Downloads
| OEG no. | 512209262 |
| Ambient temperature [°C]: | -30 .. 70 |
| Protection type [IP]: |
 IP65
|
| Installation opening [mm]: | 45 x 45 |
| Voltage [V]: | 100 .. 240 |
| Indication max.: | 99,999.99 h |
| Type: | BZ 147 |
| Manufacturer | Theben |
| Herstellernummer | 1470000 |
| EAN | 4003468147009 |
| Weight [kg] | 0.06 |
| Notes | |
| Customs tariff number | 90291000 |
There are no questions available on this item yet
You have to be logged in to ask a question
12/10/2016, 15:02:19 of: Mr Feld
gut
Schnell und einfach in einer Schalttafel eingebaut
