DIN rail for distribution boards in electrical installation. Devices such as circuit breakers, residual current circuit breakers (RCDs), contactors or terminal blocks can be easily mounted on the rail...

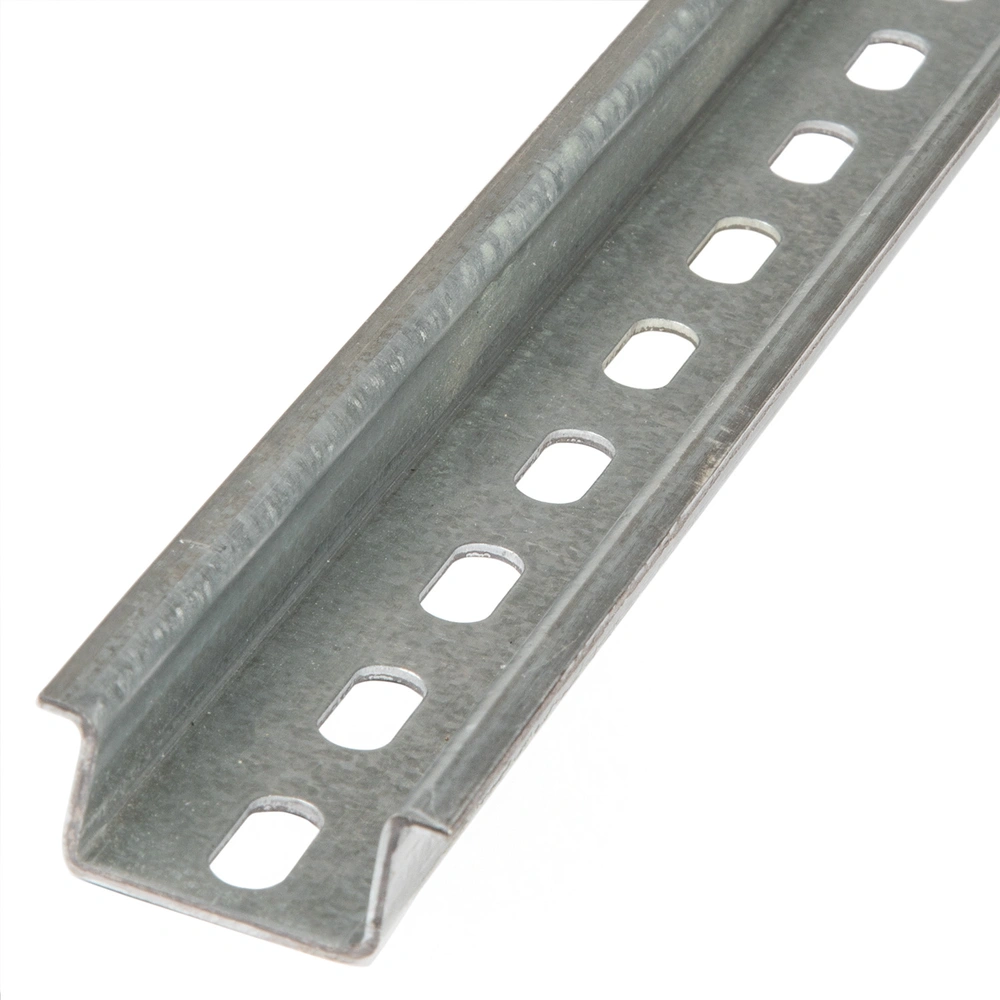

All product informationDIN rail for distribution boards in electrical installation. Devices such as circuit breakers, residual current circuit breakers (RCDs), contactors or terminal blocks can be easily mounted on the rail. Thanks to the increased wall thickness of the material, the rail is also suitable for heavier components. The DIN rail can be cut to length as required and fixed to the mounting plate of the control cabinet using elongated holes.
For more information see Downloads
| OEG no. | 806000882 |
| Material thickness: | 1.5 |
| Material: | Steel galvanised |
| Bore hole diameter [mm]: | 6.25 |
| EU standard: | En 50022 |
| drill hole distance [mm]: | 10 |
| Length [mm]: | 1,000 |
| Width [mm]: | 35 |
| Height [mm]: | 15 |
| Weight [kg] | 0.3 |
| Customs tariff number | 72169900 |
