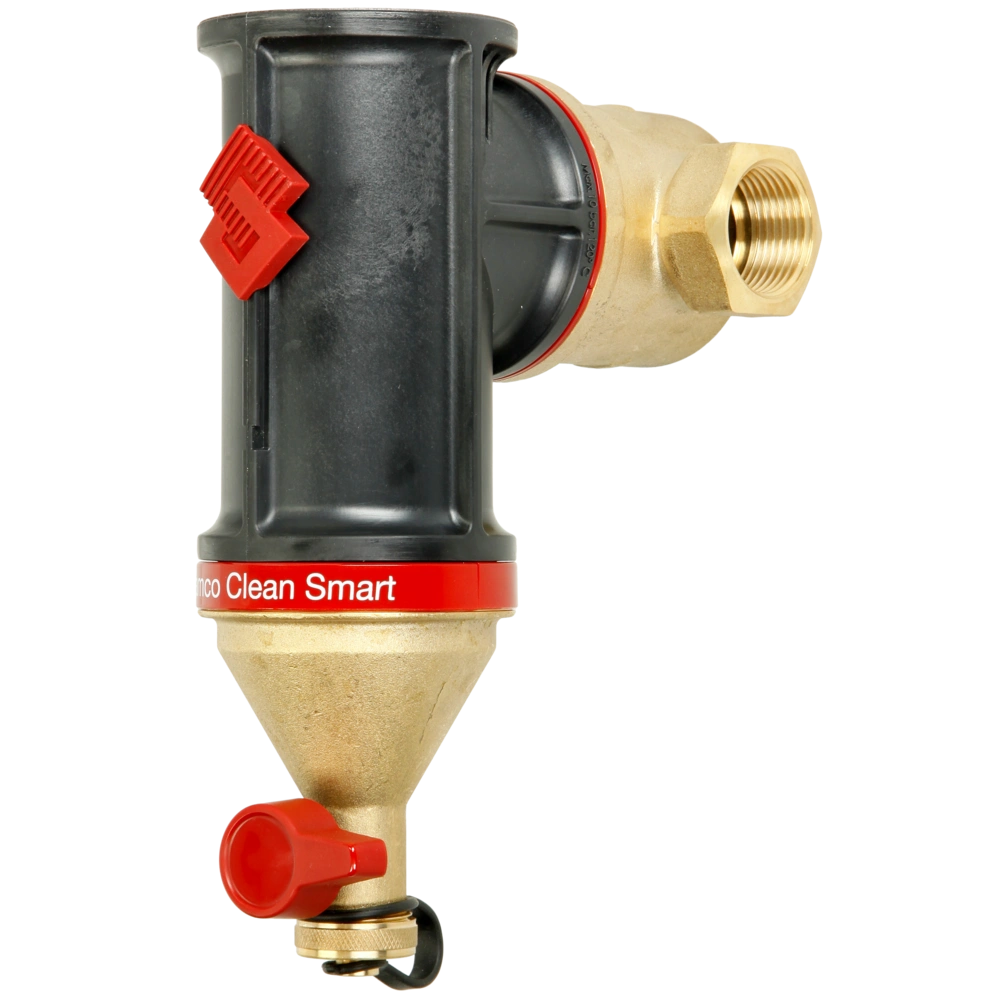

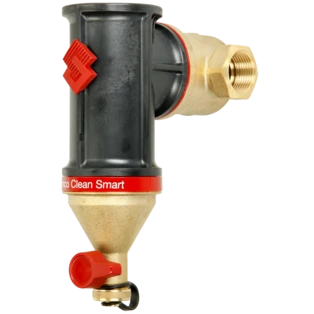

Dirt separator Clean Smart EcoPlus 1" IT 30033
OEG no.: 512239569
Compact dirt separator to remove the smallest dirt particles and magnetite particles from heating and cooling systems. The four particularly strong neodymium magnets provide for up to 60 % better results...
All product information Scope of delivery
magnetic
Compact dirt separator to remove the smallest dirt particles and magnetite particles from heating and cooling systems. The four particularly strong neodymium magnets provide for up to 60 % better results than conventional dirt separators while minimising the flow resistance at the same time.
Due to the rotatable connection, the separator can be inserted in any pipe layout.
The addition of a glycol-based anti-freeze is possible up to 50%.
The outlet is made of brass, the basic body is made of plastic.
| Scope of delivery: | |||
| 1 x | dirt separator | ||

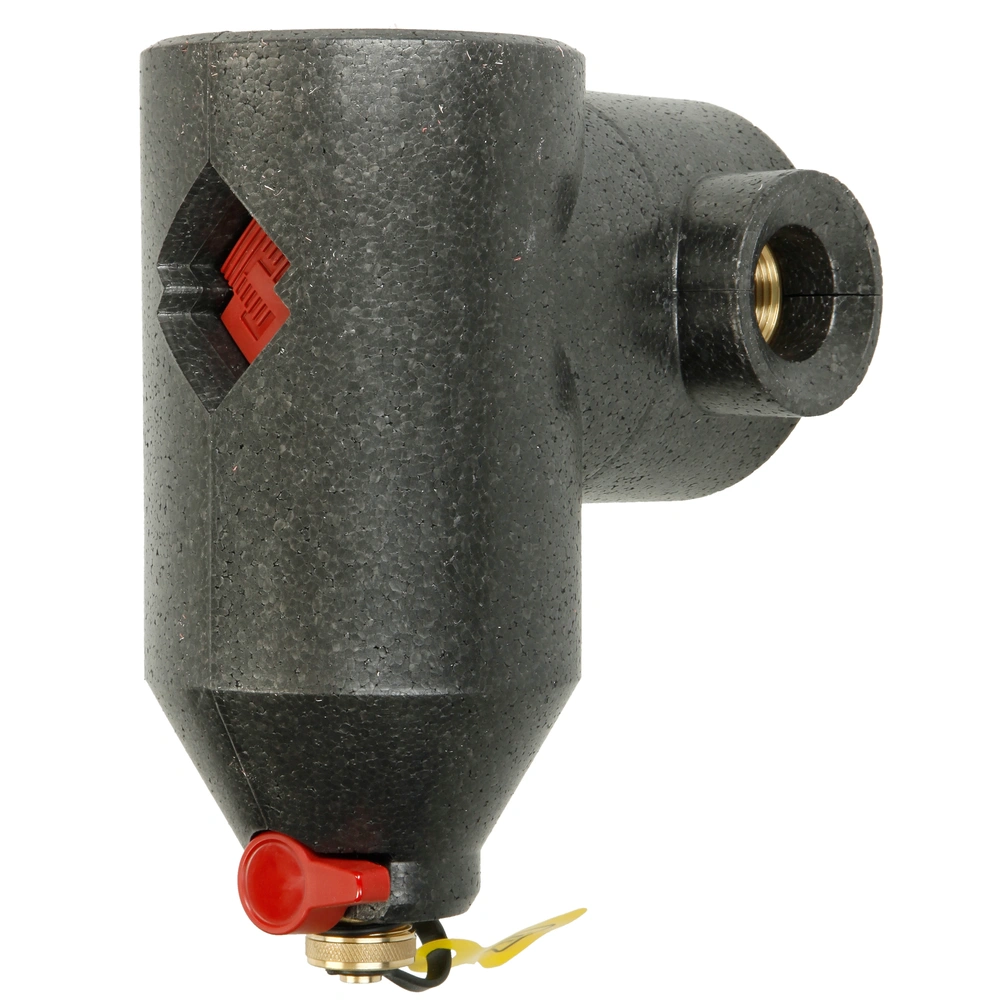

| 1 x | EPP thermal insulation | ||
For more information see Downloads
| OEG no. | 512239569 |
| Type: | Clean Smart EcoPlus |
| Connection size: | 1" IT |
| Operating pressure max. [bar]: | 10 |
| Temperature max. [°C]: | 120 |
| Flow rate [m³/h]: | 6.56 |
| Pressure stage PN [bar]: | 10 |
| Length [mm]: | 189 |
| Height [mm]: | 255 |
| Diameter [mm]: | 112 |
| Installation: | Horizontal | vertical |
| Manufacturer | Flamco |
| Manufacturer number | 30033 |
| EAN | 8712874300330 |
| Weight [kg] | 1.2 |
| Notes |
magnetic
|
| Customs tariff number | 84212100 (NL) |
Question
(Connection size: 3/4" IT)
Hi #1 can the connections be mounted horizontally as in some of the other options? #2 would this filter be suitable in a glycol based solar thermal system to make sure fluid is clean? #3 is there a strainer on the inside of the cartridge that one would clean? Thank you very much
Answer OEG:
Hello. I've got some answers for you: #1 the connections are rotatable, so that you can install the seperator in a vertikal position or if necessary, in a horizontal position. #2: You can use an water-glykol mix up to 50% of glykol.
#3: It contents no strain, so you needn't to clean something by taking it out before. the muddrops to the bottom an whenyou'restartingemptying the seperator you have to take away the labe with the magnet before, that the waste can be washed out.
If you have further more questions, don't hasitate to contact us again.
Question
(Connection size: 3/4" IT)
Prix 75€ net ou brut ?
Answer OEG:
prix net
You have to be logged in to ask a question
22/07/2024, 22:34:56 of: Mr Heizungsservice
Verlässlich
bestes Gerät, sehr zuverlässig
20/07/2020, 16:50:54 of: Mr DHS
Prix trop cher
Plus cher que les grossistes ...
Reply from OEG :
Connaissiez-vous déjà notre alerte de prix? Si vous trouviez cet article moins cher ailleurs notez le prix trouvé et nous vérifierons immédiatement nos conditions d'achat.
Vous trouvez cette possibilité à côté du bouton "Downloads" - si non - contactez-nous :-)
Votre équipe OEG
30/12/2019, 18:53:16 of: Mr action pro chauffage
compact et design
facile à manipuler lors de l'entretien annuel, attention, penser à installer des vannes de sectionnement
09/03/2017, 11:37:27 of: Mr Hans
Top
Top Produkt mit fairem Preis-Leistungsverhältnis
