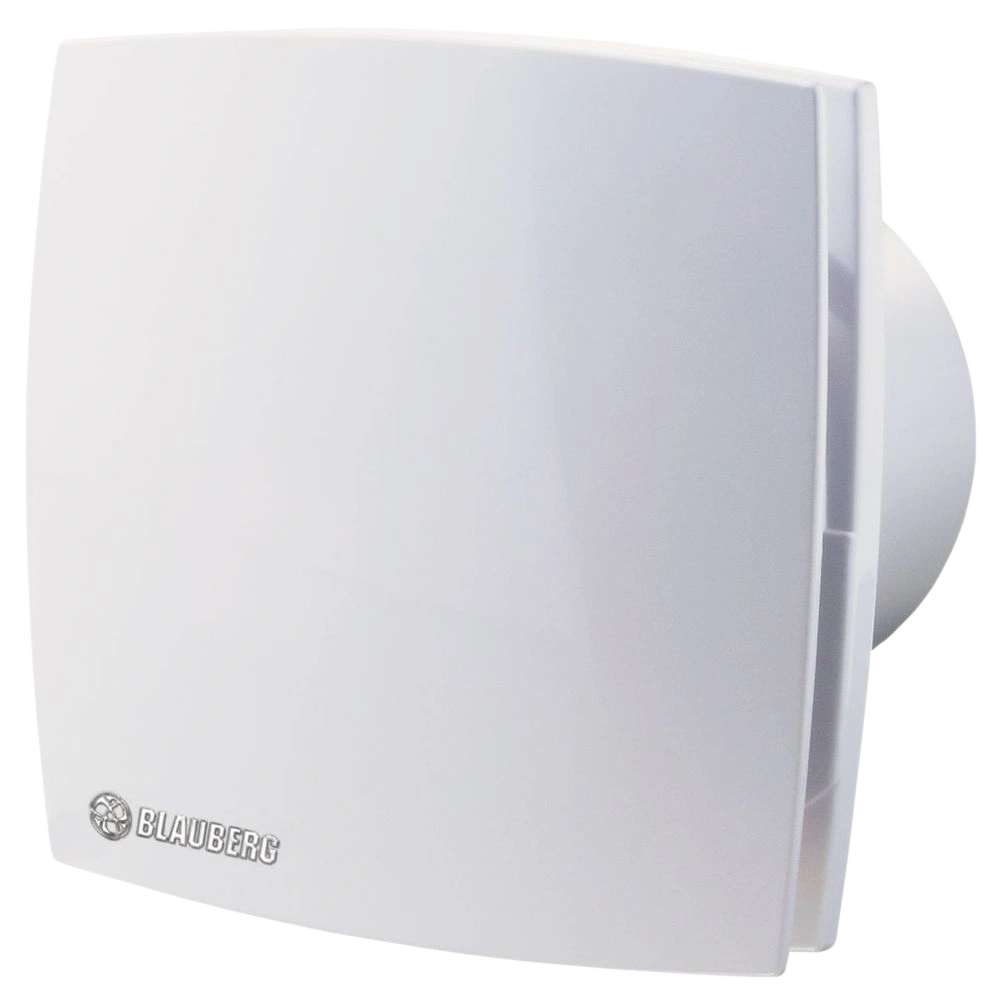

Domestic extract fan Quatro C 100 H 8000072
OEG no.: 745000270
The domestic fan can be used in common residential buildings and office rooms but also in restaurants or hospitals, designed for wall or ceiling mounting. It is also suitable for continuous operation...
All product informationRelated products
Humidity sensor
Timer
CE
GS-certified
The domestic fan can be used in common residential buildings and office rooms but also in restaurants or hospitals, designed for wall or ceiling mounting. It is also suitable for continuous operation.
The turn-off delay is adjustable from 2 to 30 minutes. The integrated humidity sensor can be adjusted from 60 to 90% air humidity. In case this value is exceeded, the fan starts automatically.
For more information see Downloads
| OEG no. | 745000270 |
| Design: | Humidity sensor, Timer |
| Mounting type: | Wall mounting, Ceiling mounting |
| Output [W]: | 14 |
| Voltage [V]: | 230 |
| Pipe diameter [mm]: | 100 |
| Length x Width x Height [mm]: | 108.5 x 120 x 150 |
| Protection type [IP]: |
 IP34
|
| Ambient temperature [°C]: | 1 .. 45 |
| Delivery rate [m³/h]: | 88 |
| Sound pressure level [dB]: | 33 |
| Speed max. [1/min]: | 2,300 |
| Type: | Quatro C |
| Manufacturer | Blauberg |
| Manufacturer number | 8000072 |
| EAN | 4058448000072 |
| Weight [kg] | 0.75 |
| Notes |
Humidity sensor
Timer
CE
GS-certified
|
| Customs tariff number | 84145100 (UA) |
Question
Hallo heeft deze alleen een vochtmeter ? of ook een timer
Answer OEG:
De ventilator voor kleine ruimtes kan worden gebruikt in conventionele woon- en werkkamers, maar ook in restaurants of ziekenhuizen voor wand- of plafondmontage. Hij kan ook worden gebruikt in continu gebruik.
De nalooptijd kan worden gekozen tussen 2 en 30 minuten. De ingebouwde vochtigheidssensor is instelbaar van 60 tot 90% luchtvochtigheid. Als deze waarde wordt overschreden, start de ventilator automatisch.
Gedetailleerde informatie vindt u op Downloads bij dit artikel op de OEG website
Question
Bonjour, Est-il vendu avec la plaque de finition ?
Answer OEG:
Le ventilateur est fourni avec vis et chevilles.
Question
Guten Morgen, kann der Ventilator auch im Bad eingesetzt werden?
Answer OEG:
Der Ventilator ist für den einsatz im Bad geeignet.
You have to be logged in to ask a question
26/09/2017, 10:54:23 of: Mr Olivier
Trés bon rapport
Silencieux et esthétique à un prix très correct
