Low-noise extract fan with automatic shutter. The impeller is operated by a maintenance-free ball-bearing motor with minimal energy consumption. This model is additionally fitted with a timer function which can be used for programming the off-delay switch, the start delay and the interval timer...
All product informationRelated products
Humidity sensor
Timer
CE
GS-certified

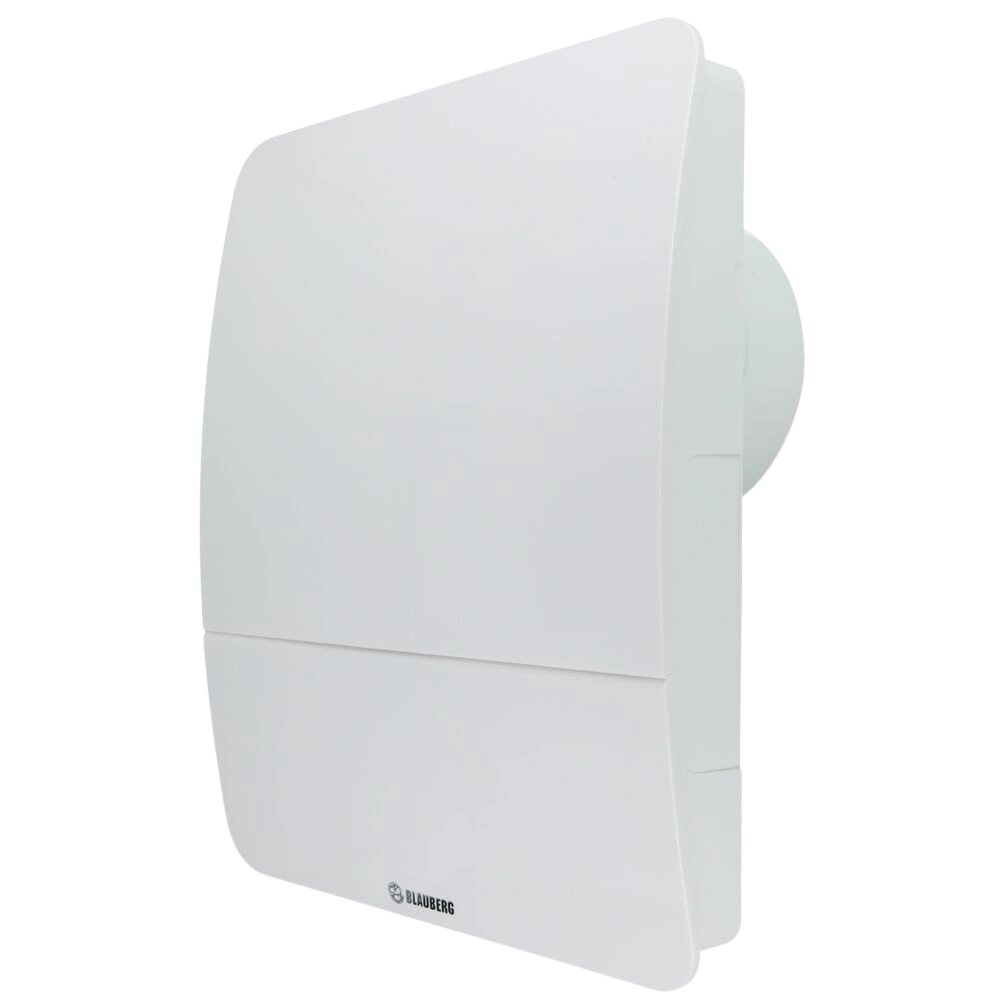

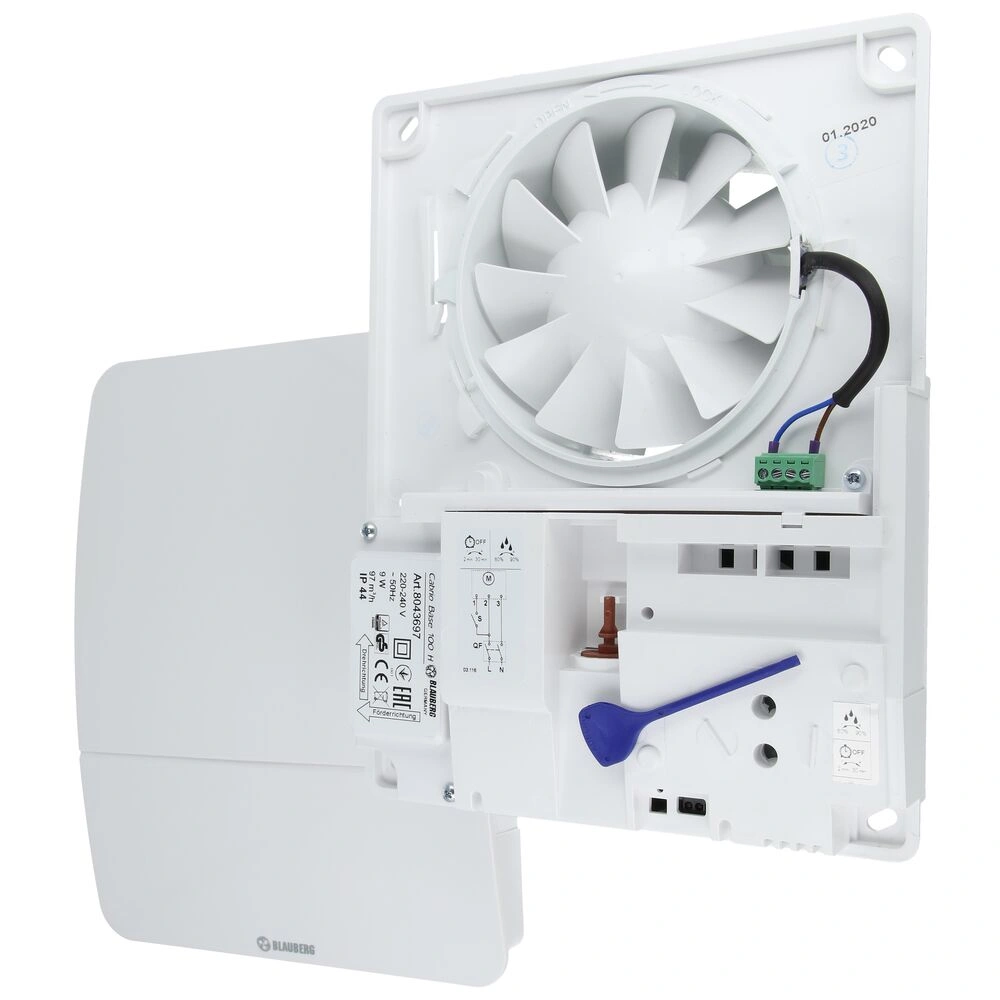

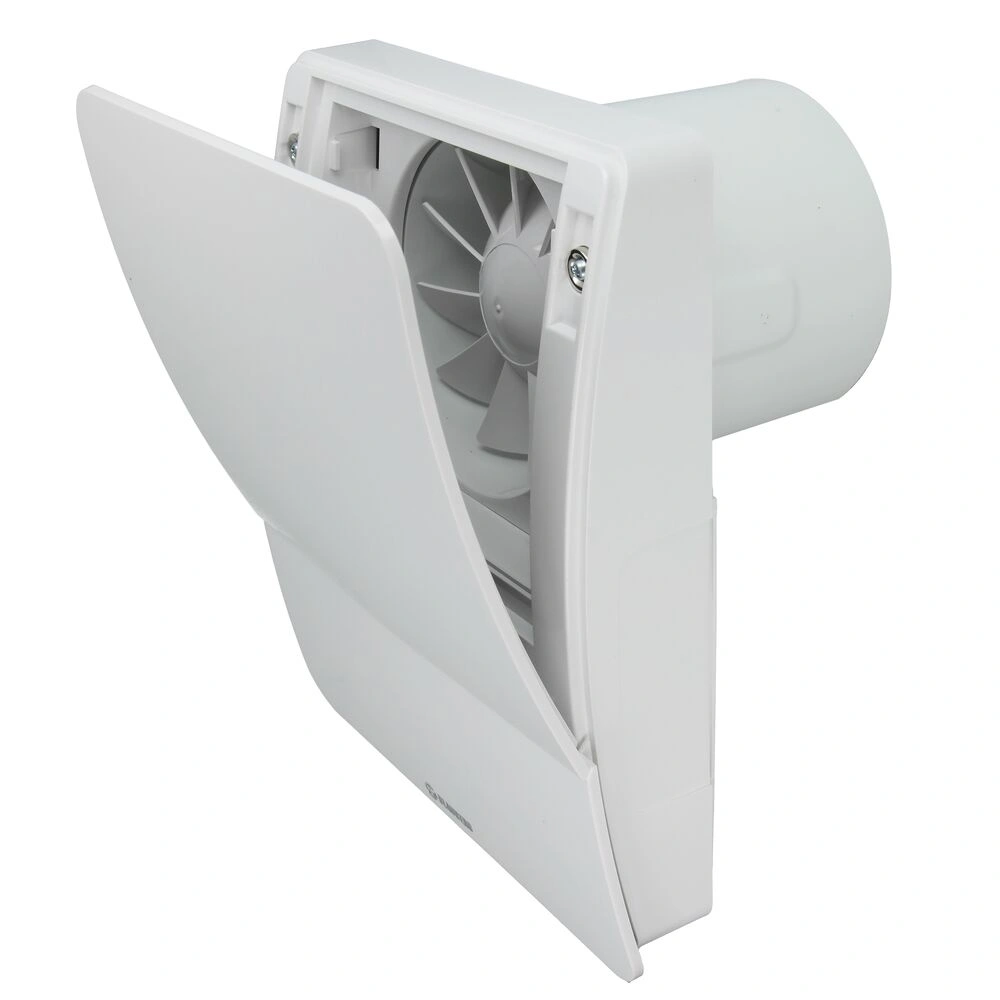

Low-noise extract fan with automatic shutter. The impeller is operated by a maintenance-free ball-bearing motor with minimal energy consumption. This model is additionally fitted with a timer function which can be used for programming the off-delay switch, the start delay and the interval timer. Base 100 H also has a humidity sensor with an adjustment range from 60 up to 90 %.
For more information see Downloads
| OEG no. | 745000310 |
| Type: | Cabrio Base |
| Model: | Humidity sensor, Timer |
| Mounting type: | Wall mounting |
| Output [W]: | 9 |
| Voltage [V]: | 230 |
| Pipe diameter [mm]: | 100 |
| Speed max. [1/min]: | 2,160 |
| Protection type [IP]: | 44 |
| Length x Width x Height [mm]: | 77 x 175 x 221 |
| Ambient temperature [°C]: | 1 .. 45 |
| Delivery rate [m³/h]: | 97 |
| Sound pressure level [dB]: | 25 |
| Manufacturer | Blauberg |
| Manufacturer number | 8043697 |
| EAN | 4058448043697 |
| Weight [kg] | 0.55 |
| Notes |
Humidity sensor
Timer
CE
GS-certified
|
| Customs tariff number | 84145995 |
