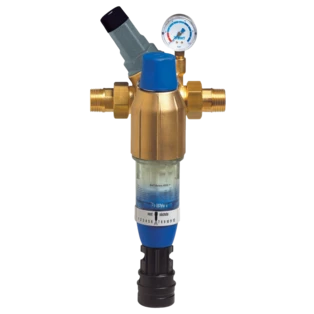

Domestic water pressure system for the filtration of domestic water. The particularly large filter surface can withdraw dirt particles such as sand, rost, chips etc...
All product informationcertified by DVGW

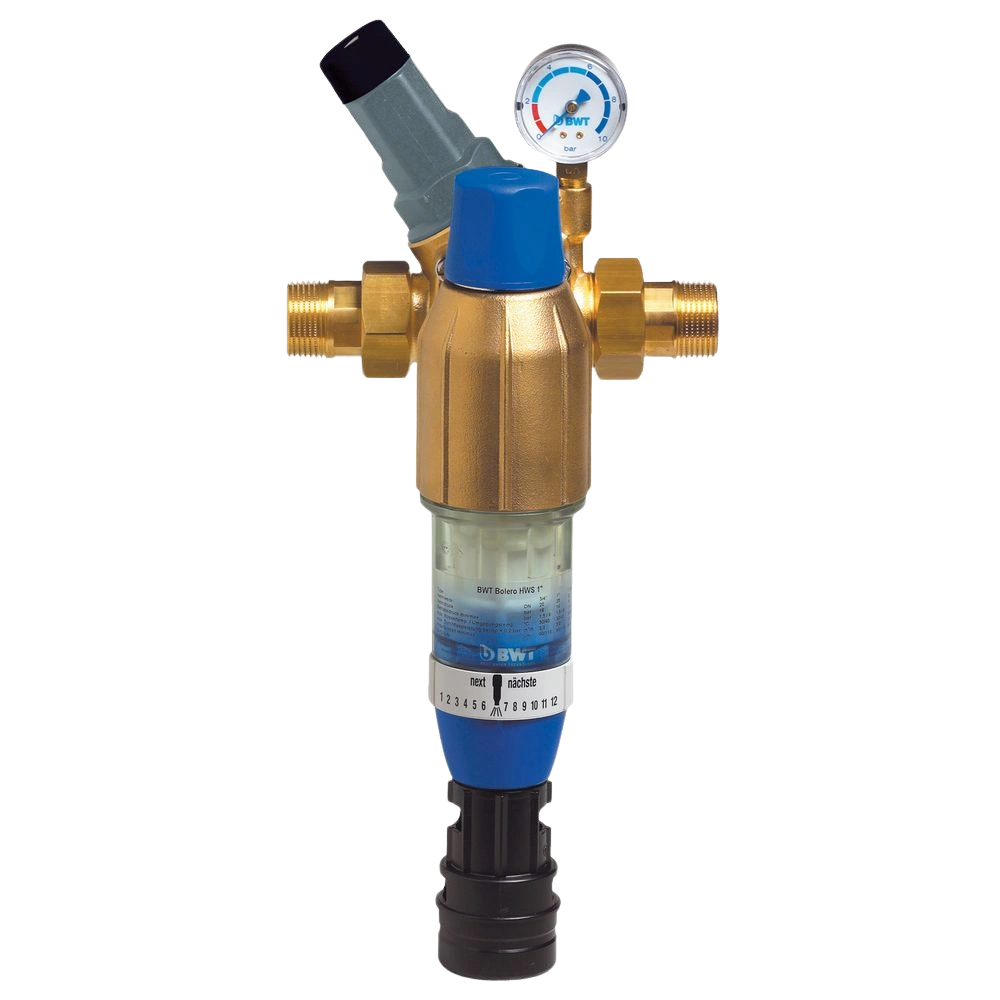

Domestic water pressure system for the filtration of domestic water. The particularly large filter surface can withdraw dirt particles such as sand, rost, chips etc. from the water to prevent malfunctions and corrosive damages on water pipes and the connected water-bearing system parts. The proven 2-phase backwash technology provides for intensive flushing and the date of the next backwash can be set via a date ring. The integrated pressure reducer with pressure gauge withstands a constant pressure that is not too high and, thus, protects the fittings and devices of the entire domestic water installation. The station is suitable for horizontal and vertical installation.
For more information see Downloads
OEG no. | 821001173 |
Nominal pressure: | 16 bar |
Nominal size: | DN50 |
Type: | HWS |
Flow rate [m³/h]: | 11 .. 16.5 |
Connection: | 2" |
Ambient temperature [°C]: | 40 |
Operating pressure [bar]: | 2 - 16 when backwashing |
Installation length [mm]: | 125 |
Media temperature max. [°C]: | 30 |
Manufacturer | BWT |
Manufacturer number | 10373 |
EAN | 9022000103735 |
Weight [kg] | 1 |
Notes |
certified by DVGW |
Customs tariff number | 84212100 |
