DuoHM cavity plug with metric screw for the use in panel building materials with different thicknesses. The combination of nylon and metal guarantees a high load-bearing capacity. The particularly easy...
All product informationSuitable for plasterboard
Chipboard
Plywood
OSB

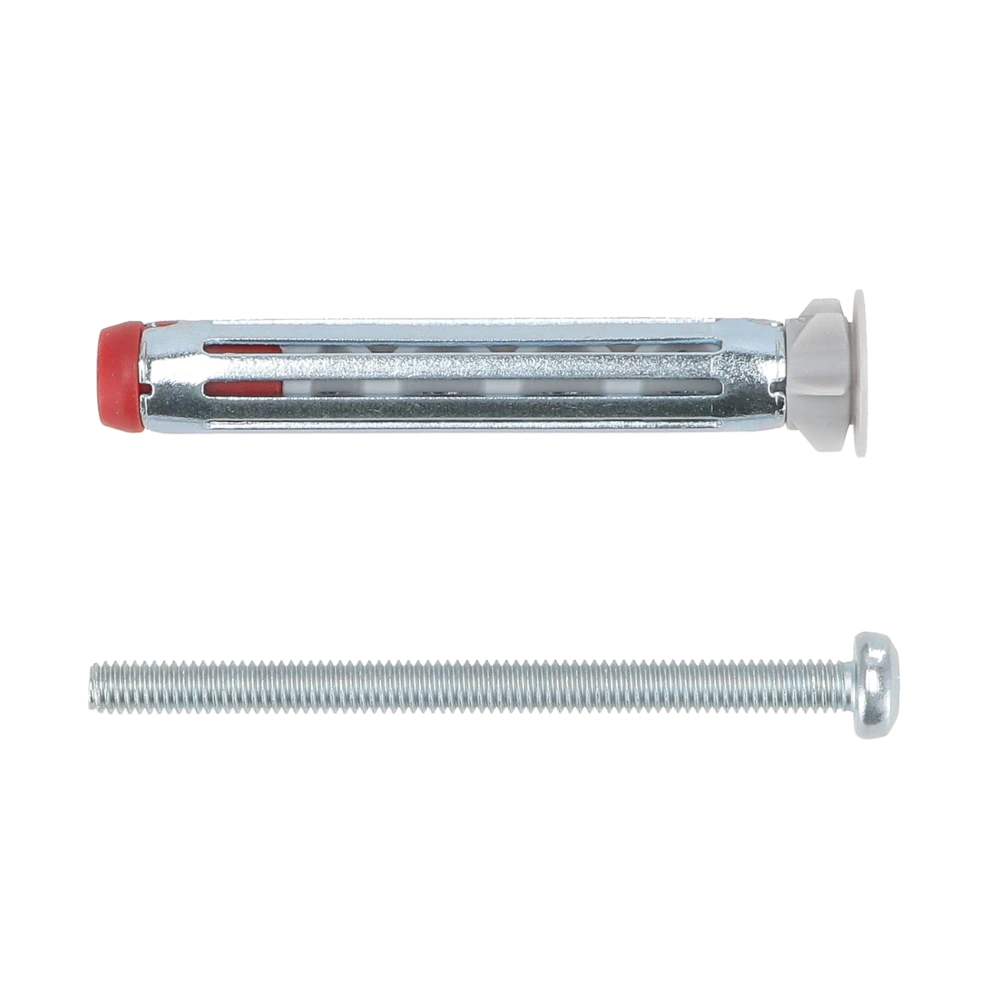

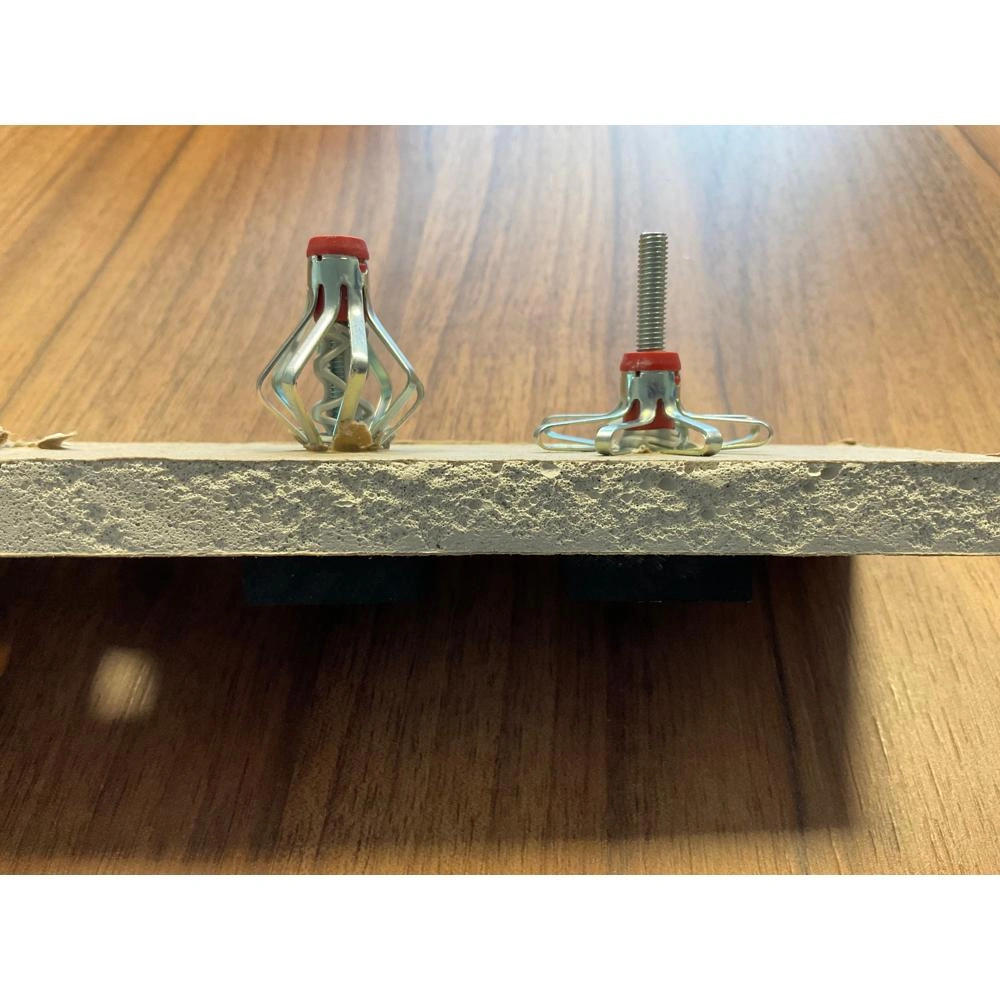

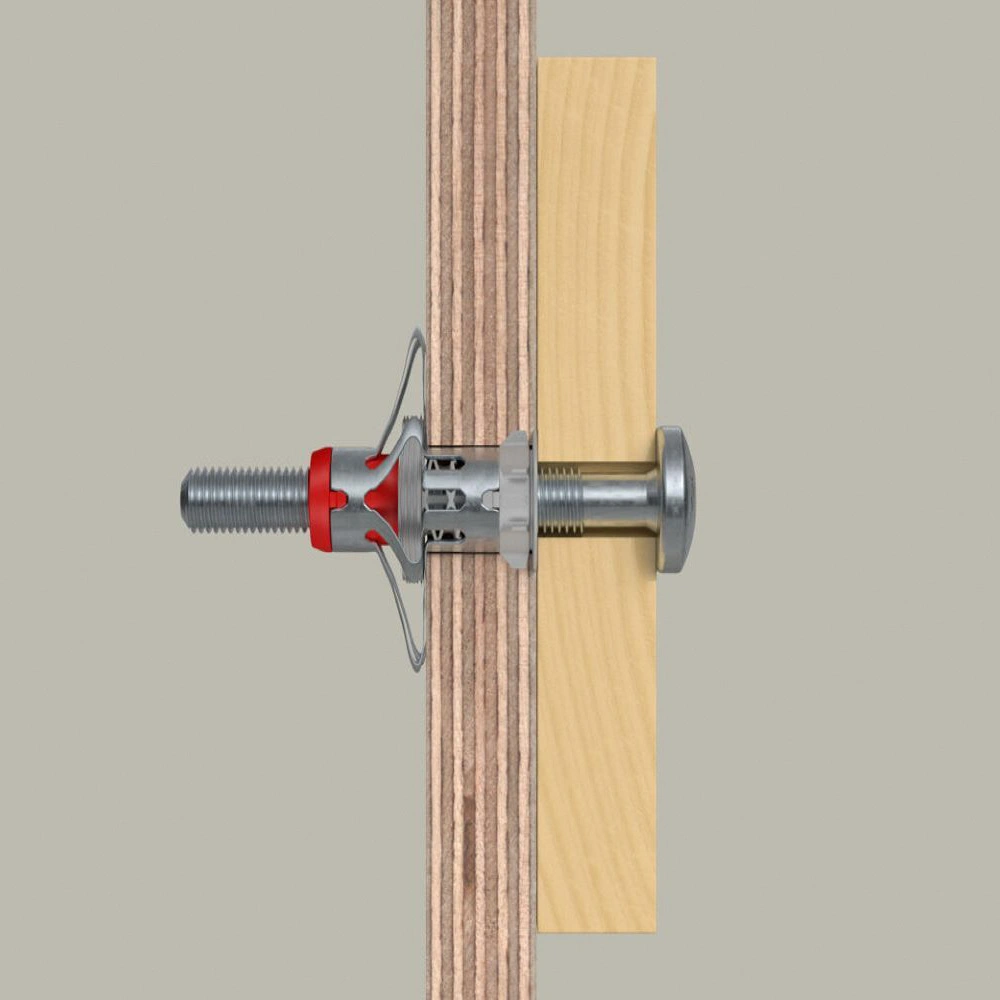

DuoHM cavity plug with metric screw for the use in panel building materials with different thicknesses. The combination of nylon and metal guarantees a high load-bearing capacity. The particularly easy setting of the plug is possible by using only a cordless screwdriver. When the screw is being inserted, the metal sleeve presses against the back of the panel, while the nylon part knots in the panel. This ensures a permanently strong hold. The nylon anti-rotation lock protects the building material from damages.
In addition to the screw supplied, the DuoHM can also be used with other metric screws, whereby the screws can be screwed in and out several times.
For more information see Downloads
| OEG no. | 806001702 |
| PU | 25 pieces |
| Screw diameter x Length [mm]: | 4 x 55 |
| Dowel length [mm]: | 55 |
| Bore hole diameter [mm]: | 8 |
| Bore hole depth min. [mm]: | 55 |
| Drive: | TX20 |
| Cavity depth min. [mm]: | 45 |
| Plate thickness [mm]: | 9 .. 30 |
| Mounting type: | Pre-positioned installation |
| Head type: | Panhead |
| Application : | Gypsum plasterboards, Hollow ceilings, Particle boards, Plywood |
| Manufacturer | Fischer |
| Manufacturer number | 572923 |
| EAN | 4048962524017 |
| Weight [kg] | 0.3 |
| Notes |
Suitable for plasterboard Chipboard Plywood OSB |
| Customs tariff number | 73181900 |
