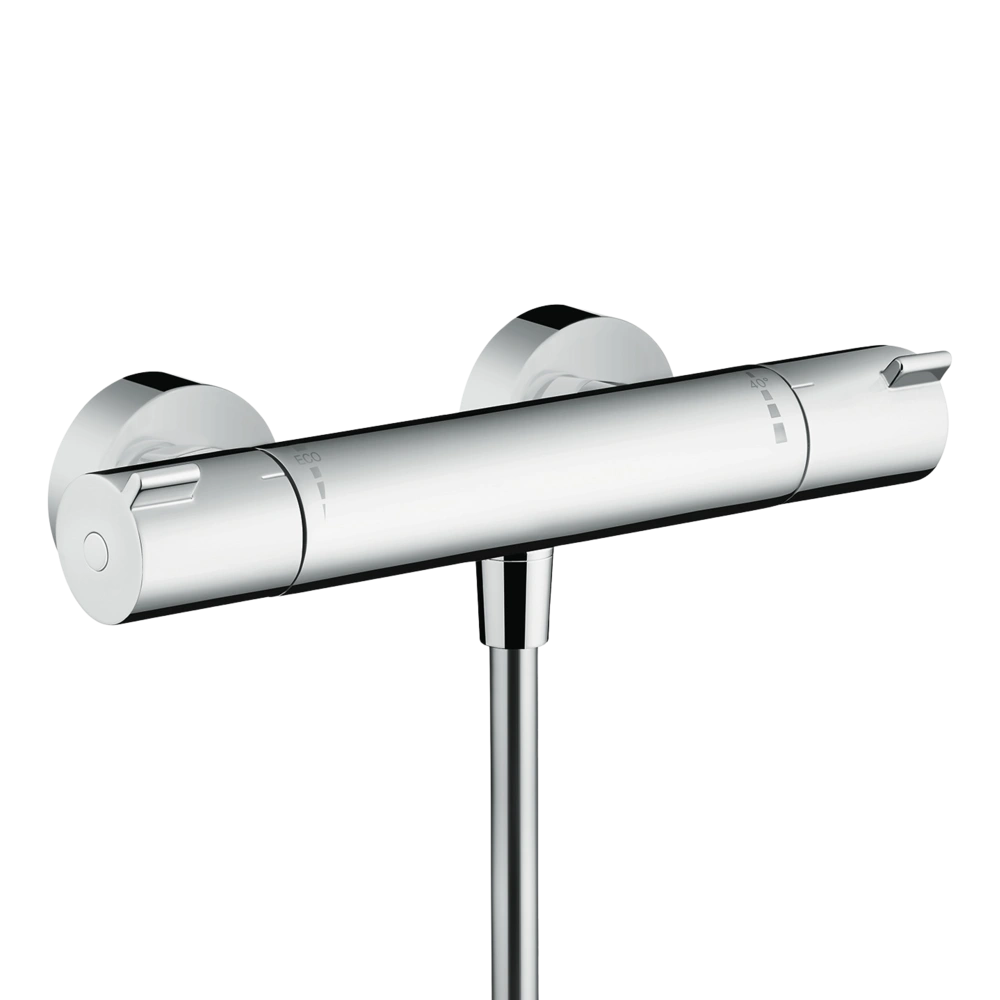

The hansgrohe Ecostat shower thermostat is equipped with a thermostatic cartridge, a safety lock at 38 °C and a backflow preventer. The thermostat also has an Eco-stop button (limits the flow rate to 10 l/min...
All product informationRelated products
The hansgrohe Ecostat shower thermostat is equipped with a thermostatic cartridge, a safety lock at 38 °C and a backflow preventer. The thermostat also has an Eco-stop button (limits the flow rate to 10 l/min.) and a preset hot-water limiter.
For more information see Downloads
| OEG no. | 800007013 |
| Colour: |
 Chrome
|
| Installation: | Surface-mounted |
| Series: | Ecostat |
| Flow rate [l/min]: | 10 .. 17 |
| Field of application: | Shower |
| Type: | Shower thermostat 1,001 CL |
| Inside micrometer [mm]: | 150 ± 12 |
| Operating pressure [bar]: | 1 .. 10 |
| Length [mm]: | 296 |
| Projection [mm]: | 79 |
| Nominal size [DN]: | 15 |
| Connection size [inch]: | 1/2 |
| Manufacturer | Hansgrohe |
| EAN | 4011097799582 |
| Weight [kg] | 2.69 |
| Customs tariff number | 84818011 |
