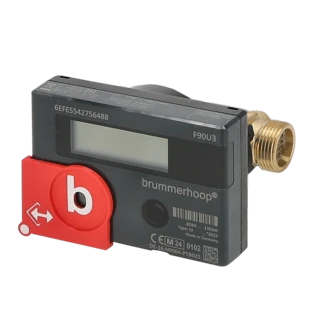

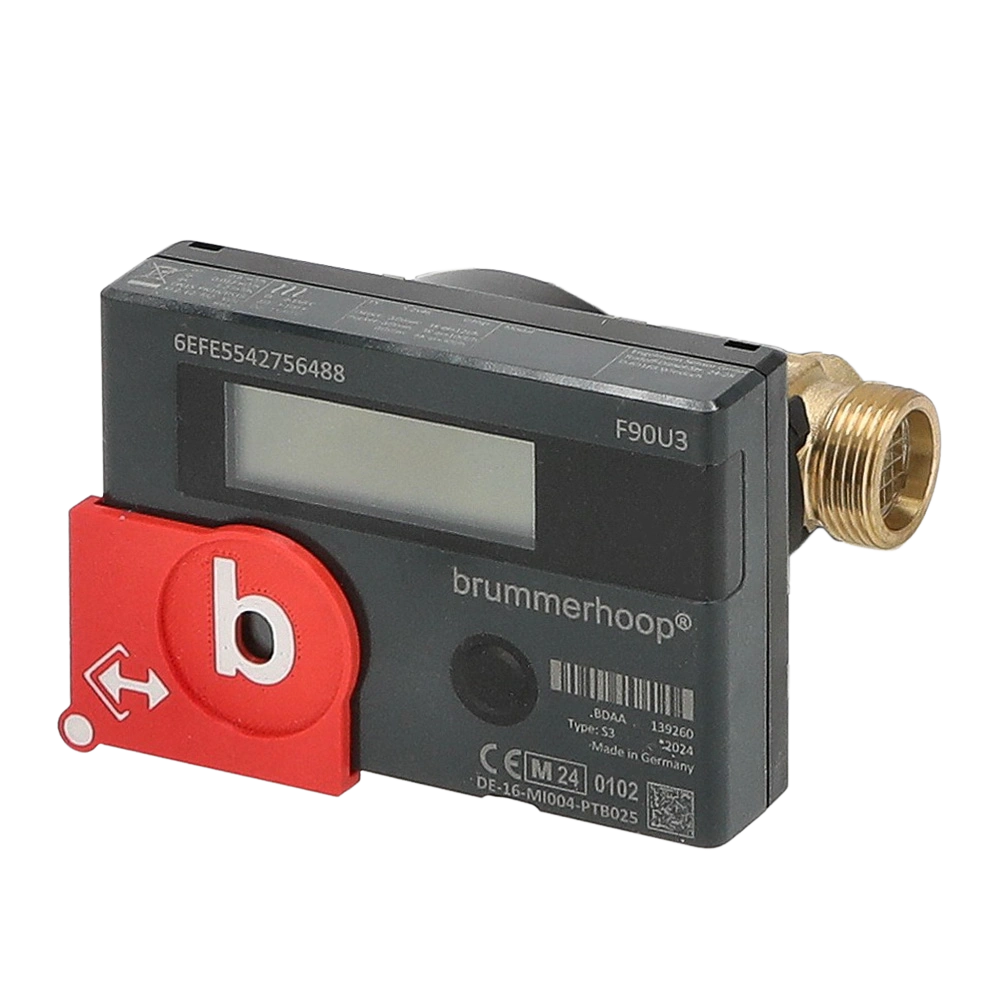

Elster F90U3 compact heat meter qp 0.6 3/4" B
OEG no.: 512243078
The Elster compact heat meter F90U3 with integrated optical infrared interface and ultrasound measuring principle is suitable for all common installation places and used for the exact determination of energy consumption data and volume flow...
All product information Scope of deliveryRelated products
CE
The Elster compact heat meter F90U3 with integrated optical infrared interface and ultrasound measuring principle is suitable for all common installation places and used for the exact determination of energy consumption data and volume flow. It is provided with an 8-digit display and can be installed horizontally or vertically. The detachable calculator is equipped with a cable holder.
Note:
Including calibration fee!
Calibration time: 5 years
| Scope of delivery: | |||
| 1 x | calculator with battery | ||
| 1 x | flow sensor | ||
| 1 x | temperature sensor | ||
| 1 x | gaskets | ||
| 1 x | compact heat meter | ||
For more information see Downloads
| OEG no. | 512243078 |
| Nominal size: | DN15 |
| Flow rate [m³/h]: | 0.6 |
| Field of application: | Return |
| Total length [mm]: | 110 |
| Connection: | 3/4" ET |
| Protection type [IP]: |
 IP65
|
| Operating pressure max. [bar]: | 16 |
| Cable length: | 1.5 |
| Diameter [mm]: | 5.2 |
| Weight [kg] | 0.88 |
| Notes |
CE
|
| Customs tariff number | 90261021 |
